AMD Ryzen 5 8600G Desktop Processor 6 cores 12 Threads 22 MB Cache 4.3 GHz Upto 5 GHz AM5 Socket (100-100001237BOX)
- 6 Cores & 12 Threads
- 4.3 GHz Base Clock
- 5 GHz Max Boost Clock
- Socket AM5
- 6MB L2 & 16MB L3 Cache
- Integrated AMD Radeon 760M Graphics
- DDR5-5200 Memory
- Unlocked Processor | AMD Ryzen AI

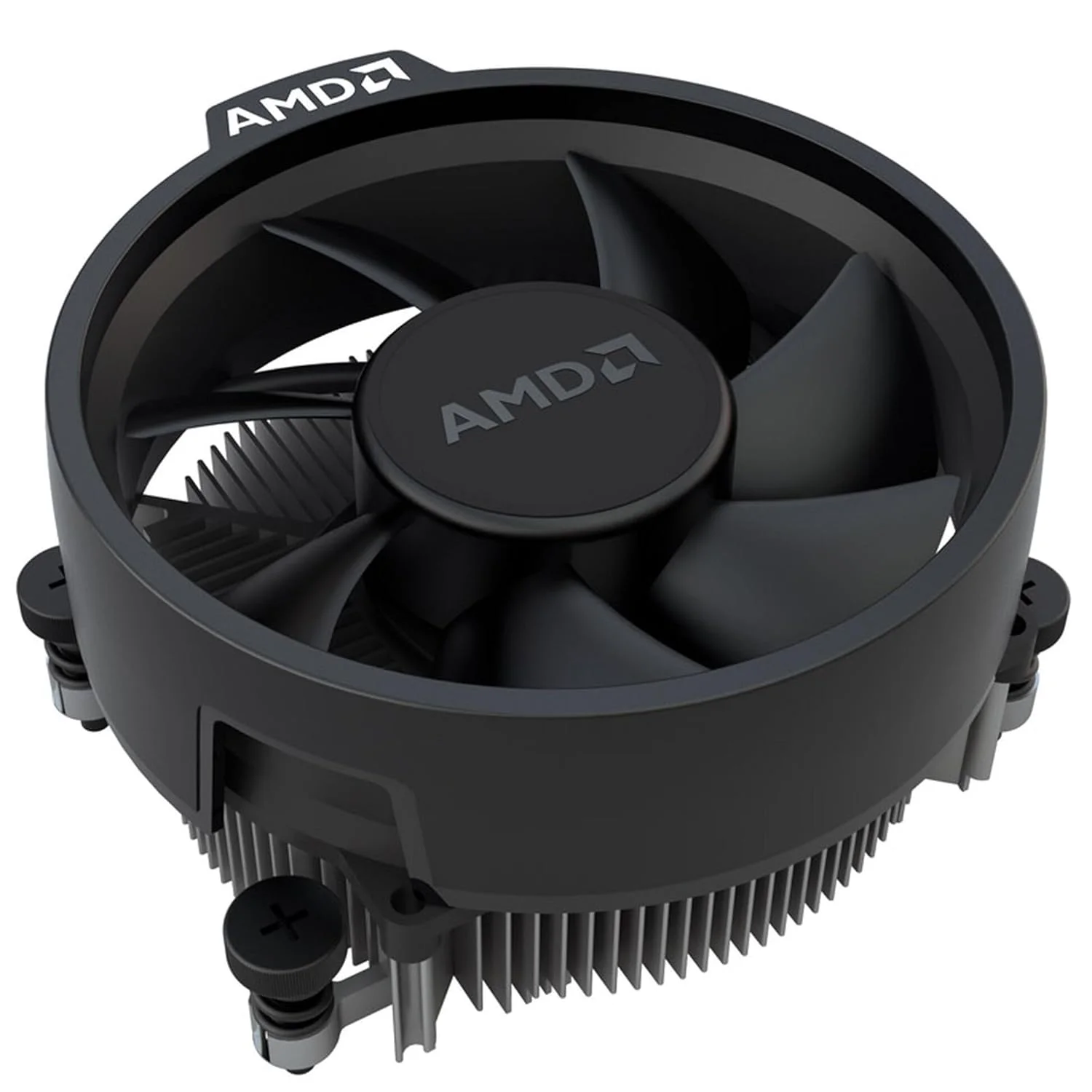

- Includes Wraith Stealth Cooler
- Zen 4 Architecture
AMD Ryzen AI – The dedicated AMD Ryzen AI engine combines the power of the integrated neural processor (NPU), Radeon Graphics, and processor cores to unlock a new level of efficiencies by accelerating AI workloads with compatible applications to deliver faster content generation and enhanced video communications.
Precision Boost 2 – AMD Ryzen processors monitor the system’s energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.
Precision Boost Overdrive – Precision Boost Overdrive technology takes advantage of your compatible motherboard’s design to boost clock speeds higher and for longer periods of time. It also allows you to overclock the processor at the touch of a button.
AMD EXPO Technology – The AMD Extended Profiles for Overclocking (AMD EXPO Technology) provides users with advanced profile settings for memory overclocking with supported modules.
AMD Ryzen Master Utility, Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.
System Monitoring – Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.
| Brand | AMD |
| Model Name | AMD Ryzen 5 8600G |
| Model Number | 100-100001237BOX |
| Platform | Desktop |
| Product Family | AMD Ryzen Processors |
| Product Line | AMD Ryzen 5 8000 G-Series Desktop Processors with Radeon Graphics |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | “Phoenix” |
| Architecture | “Zen 4” |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5.0GHz |
| Base Clock | 4.3GHz |
| L2 Cache | 6MB |
| L3 Cache | 16MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| CPU Compute Die (CCD) Size | 178mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen Master Support | Yes |
| CPU Socket | AM5 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 – 64-Bit Edition Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| Native USB 4 (40Gbps) Ports | 2 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 2 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| PCI Express Version | PCIe 4.0 |
| Native PCIe Lanes (Total/Usable) | 20 / 16 |
| NVMe Support | Boot, RAID0, RAID1 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed |
|
| Graphics Capabilities | |
| Integrated Graphics | Yes |
| Graphics Model | AMD Radeon 760M |
| Graphics Core Count | 8 |
| Graphics Frequency | 2800 MHz |
| DirectX Version | 2.1 |
| DisplayPort Extensions |
|
| DisplayPort Max Refresh Rates (SDR) |
|
| DisplayPort Max Refresh Rates (HDR) |
|
| HDMI Version | 2.1 |
| HDCP Version Supported | 2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Multi-Monitor Support | Yes |
| Max Displays | 4 |
| AMD FreeSync | Yes |
| Wireless Display | Miracast |
| Max Video Encode Bandwidth (SDR) | 1080p630 8bpc H.264, 1440p373 8bpc H.264 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1 4320p60 8/10bpc AV1 |
| Max Video Decode Bandwidth | 1080p60 8bpc MPEG2, 1080p60 8bpc VC1 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1 |
| AMD SmartAccess Memory | Yes |
| AI Engine Capabilities | |
| Brand Name | AMD Ryzen AI |
| AMD Ryzen AI | Available |
| Performance | Up to 16 TOPS |
| Warranty | 3 Years |
