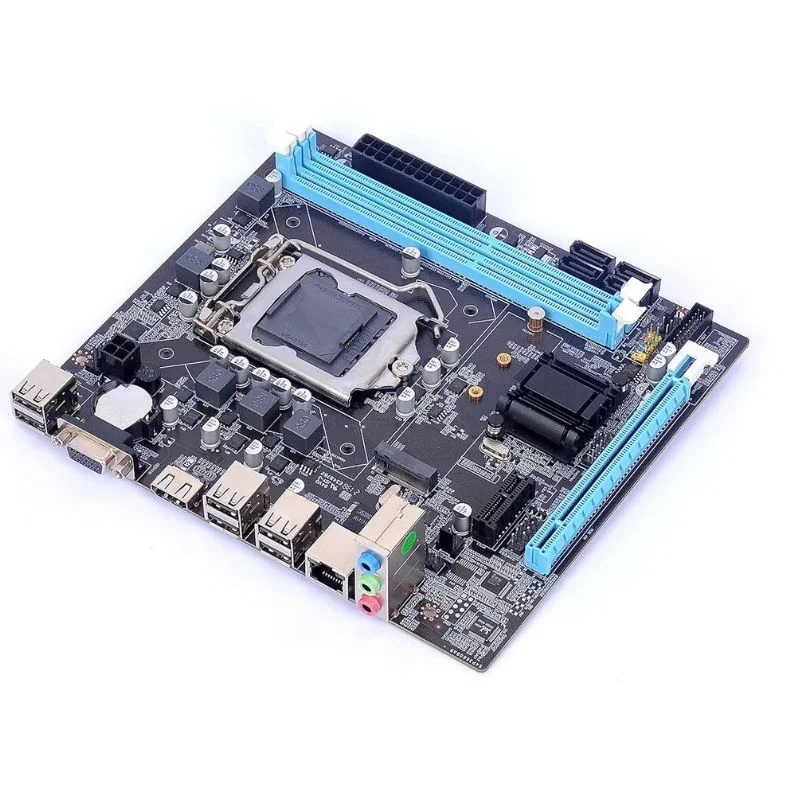

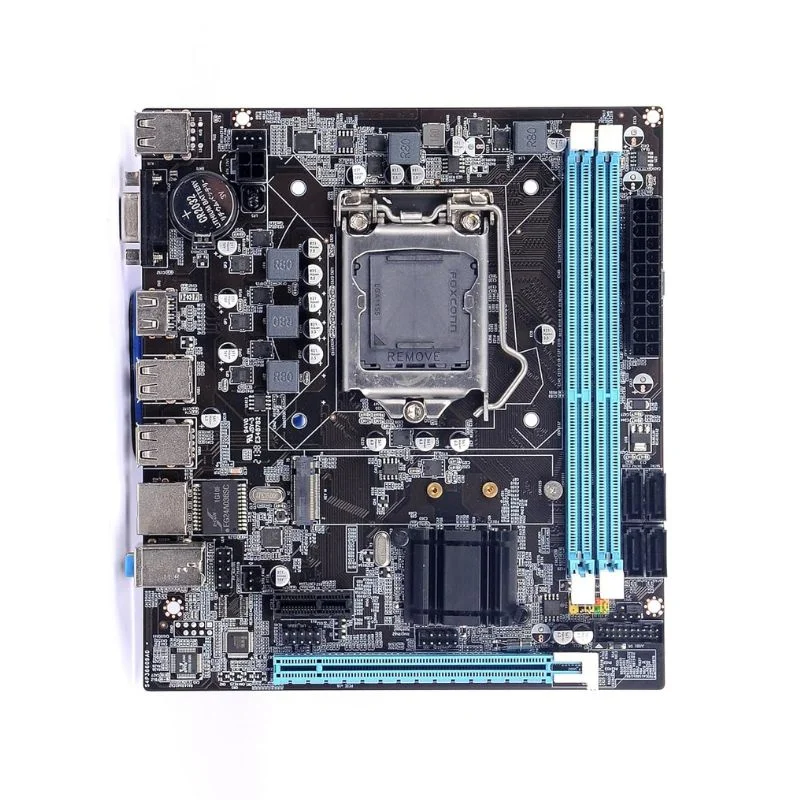

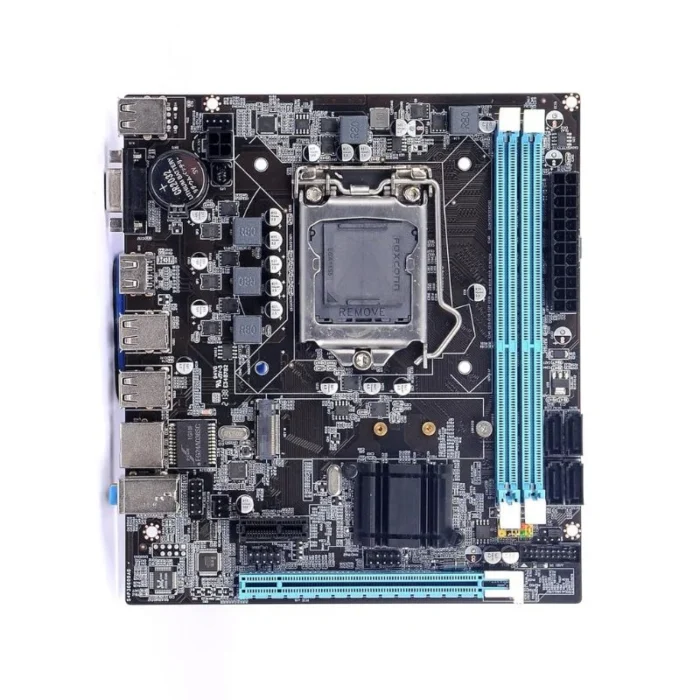

EVM Motherboard H61FHL DDR3 with NVMe Slot -for Intel H61 Chipset- DDR3 1066/1333 RAM, SATA 3Gb/s Ports, PCIe x16 and x1 Slots, Mic in/Line in/Line Out, 8 USB 2.0 Ports (EVMH61FHL)
About this item
Chipset and Processor Compatibility: The EVM DDR3 Motherboard supports Intel processors compatible with the LGA 1155 socket, thanks to its H61FHL chipset. This ensures seamless integration with a wide range of CPUs, providing users with a versatile and compatible platform.
DDR3 Memory Support: Equipped with DDR3 memory slots, the motherboard allows for the installation of DDR3 RAM modules. This enables users to benefit from the widespread availability and cost-effectiveness of DDR3 memory while still achieving efficient system performance and memory capacity.
NVME Slot for High-Speed Storage: The EVM DDR3 Motherboard features an NVME slot, enabling direct connection to an NVME SSD. With NVME’s high-performance interface protocol, users can experience significantly faster data transfer rates and reduced storage latency, maximizing overall system performance.
Expansion Slot Options: Supporting standard expansion slots such as PCI Express x16 and PCI Express x1, the motherboard provides users with the flexibility to add graphics cards, sound cards, and other expansion cards. This allows for customization and upgrading, enhancing the desktop system’s capabilities for gaming, multimedia, and other demanding tasks.
Comprehensive Connectivity: The EVM DDR3 Motherboard offers a range of connectivity options, including onboard audio, Ethernet ports, USB ports, and SATA connectors. These features facilitate seamless integration with various peripherals and storage devices, ensuring efficient data transfer, network connectivity, and peripheral connectivity.
The EVM H61FHL DDR3 Motherboard is designed to provide a reliable and cost-effective solution for building or upgrading Intel-based desktop systems. Equipped with the Intel H61 chipset and LGA 1155 socket, it supports 2nd and 3rd generation Intel Core i7, i5, i3, Pentium, and Celeron processors, delivering stable performance for everyday computing tasks.
Technical Details
| Brand | EVM |
| Model Number | H61FHL |
| Type | DDR3 Motherboard |
| Form Factor | Probably ATX or micro-ATX (not clearly documented) |
| Chipset | Intel H61 Express (B3) |
| CPU Socket | LGA1155 |
| Supported CPUs | 2nd and 3rd Generation Intel Core (i3, i5, i7), Pentium, Celeron |
| Memory Type | DDR3 SDRAM |
| Supported Speeds | DDR3-1066, DDR3-1333 |
| Number of Slots | 2 DIMM slots (dual channel) — assumption based on “supports 2 DDR3” phrasing |
| Max Capacity | Not clearly documented (likely up to 16 GB or 8 GB ×2, typical of H61 boards) |
| Voltage | Standard DDR3 voltage (1.5 V) — not explicitly documented |
| NVMe / M.2 Slot | Yes — the board is marketed as having an “NVMe slot” |
| SATA Ports | 4 × SATA II ports (3 Gb/s) |
| SATA Speed | Up to 3 Gb/s per port (SATA II) |
| PCI Express x16 Slots | 1 × PCIe x16 slot |
| PCI Express x1 Slots | 1 × PCIe x1 slot |
| Other Slots | Not clearly documented (no mention of legacy PCI) |
| USB Ports (Onboard / I/O) | 8 × USB 2.0 ports |
| Audio | Mic In / Line In / Line Out (standard 3-port audio) |
| Network / Ethernet | Not clearly documented in available specs |
| Video Output | Not clearly documented (H61 chipset originally supports D-Sub / DVI via CPU integrated graphics, but this board’s specific outputs are not confirmed) |
| Other I/O | Not fully documented |
| Board Dimensions | Not specified in public sources |
| Power Connectors | Not clearly documented (likely standard 24-pin ATX + 4/8 pin CPU) |
| Mounting / Screw Holes | Standard motherboard mounting (assumed) |
| Operating Temperature / Reliability | Not documented |
| Warranty | 1 Year |
