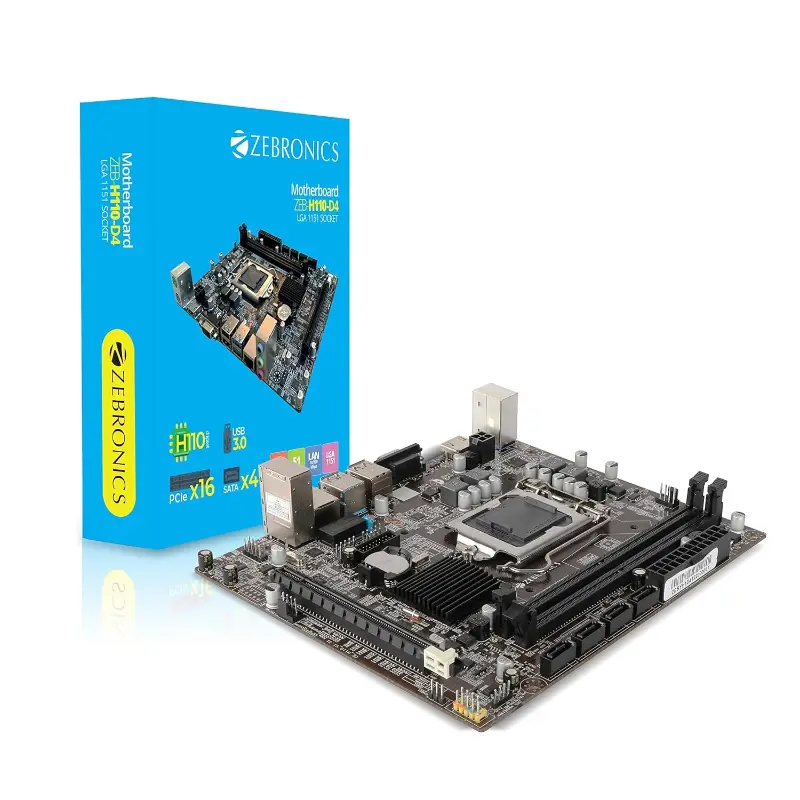

ZEBRONICS Zeb H110-D4 Micro-ATX Intel H110 Chipset Motherboard | LGA 1151 Socket | Supports 6th & 7th Gen Intel Core i3/i5/i7 Processors | DDR4 Memory | HDMI, VGA, USB, SATA | High-Performance Gaming & Desktop Motherboard
About this item
- Supports Intel 6th & 7th Generation processors (Core i3 / i5 / i7 / Pentium / Celeron) in LGA 1151 package

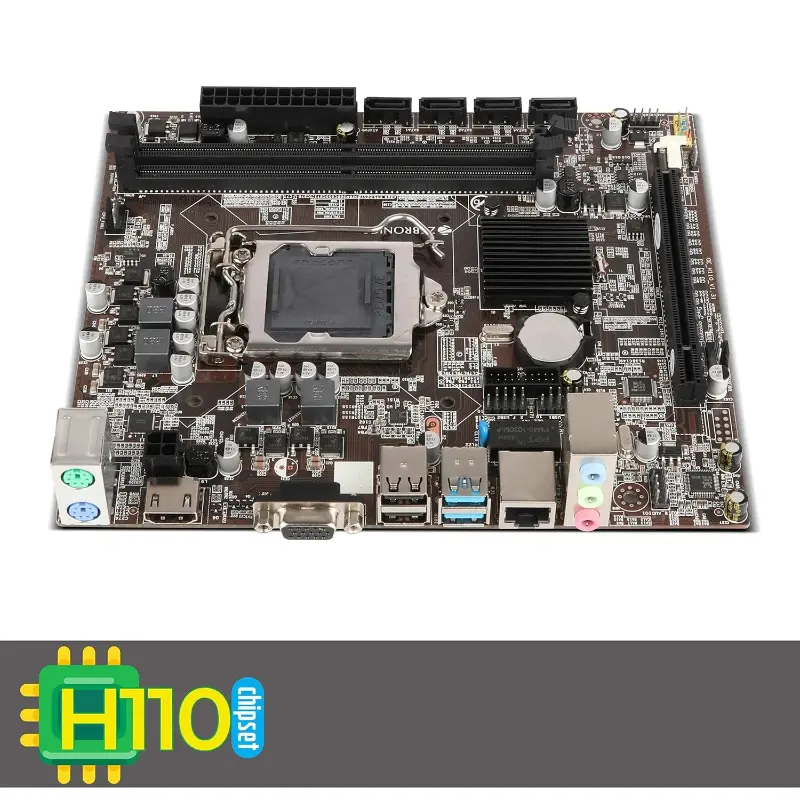

- Based on Intel H110 chipset for stable budget platform
- Dual DDR4 DIMM slots, up to 32 GB total memory, supporting 2133 / 2400 / 2666 MHz modules
- Compact Micro-ATX form factor — saves space while still offering essential expansion

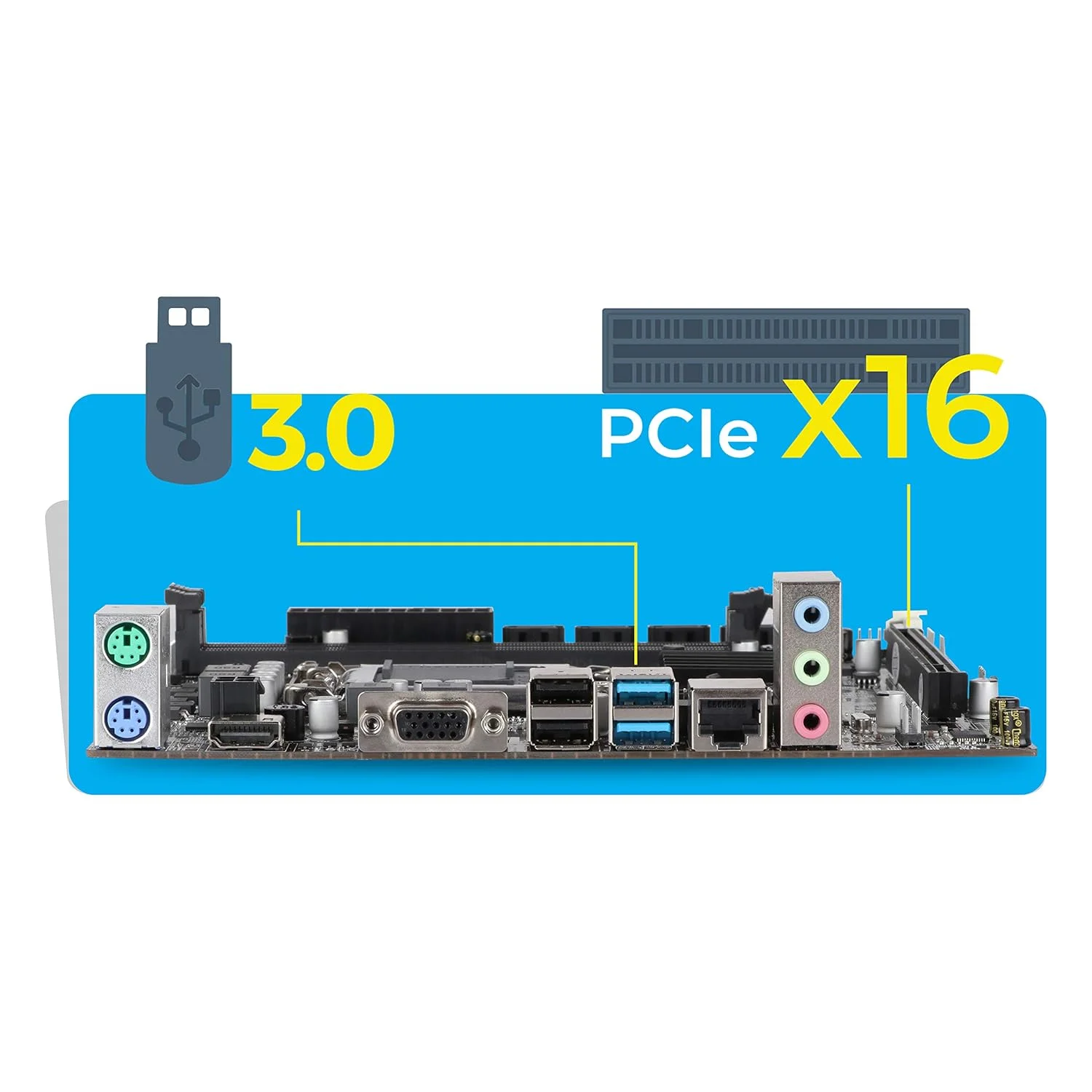

- One PCIe x16 expansion slot for adding a discrete GPU or other card

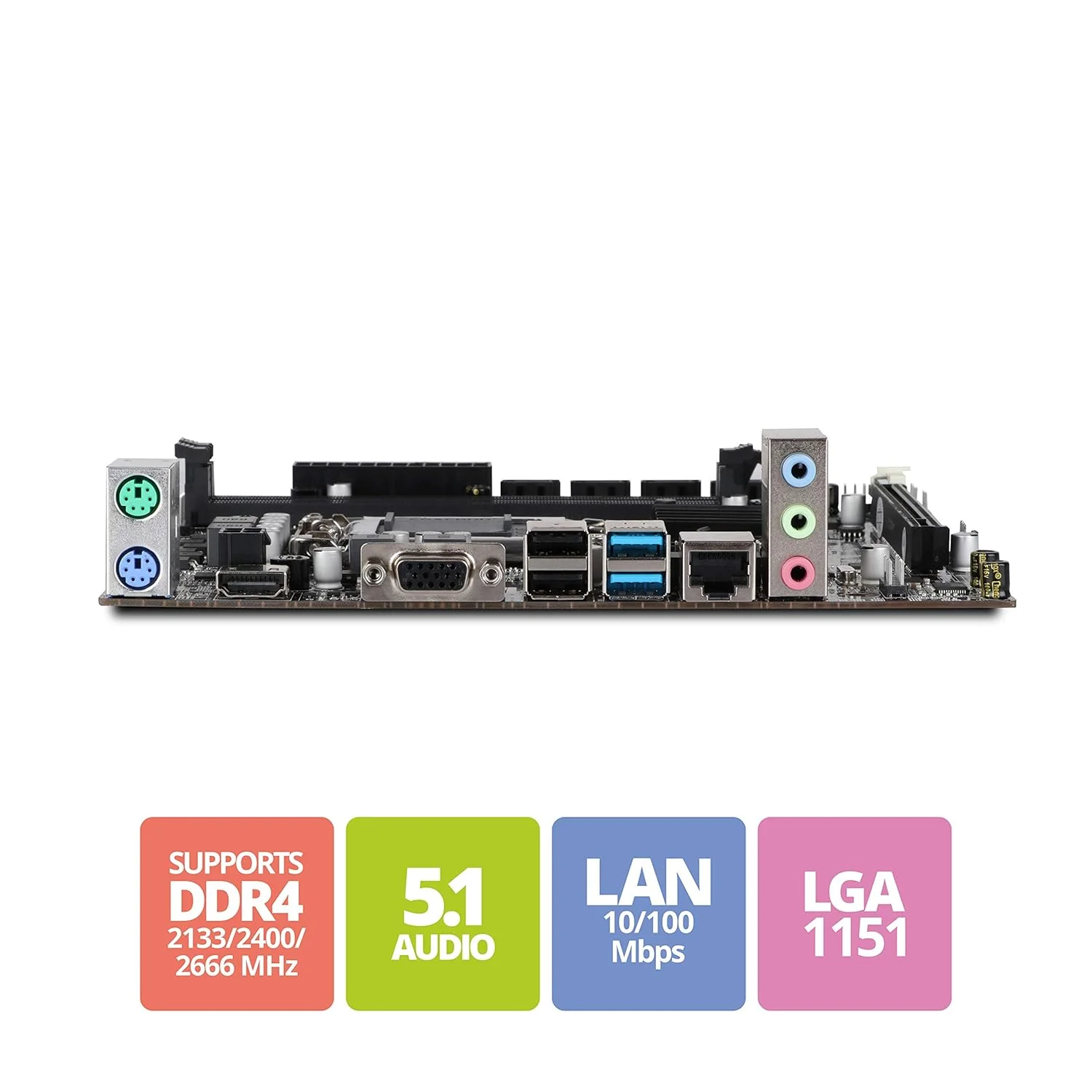

- Rear I/O includes HDMI, VGA, USB 3.0, USB 2.0, RJ-45 Ethernet, audio jacks, PS/2 ports
- Supports 4 × SATA III (6 Gbps) ports for storage devices
- Integrated 10/100 Mbps Ethernet (LAN) via Realtek RTL8105E controller (no gigabit)
The ZEBRONICS Zeb H110-D4 is a compact, reliable Micro-ATX motherboard designed for budget to mid-range desktop builds using Intel’s 6th and 7th generation processors. Built on the Intel H110 chipset, it offers a practical balance of features and expandability for everyday computing, light gaming, and home office use.
With support for LGA 1151 socket CPUs (Core i3/i5/i7, Pentium, Celeron) and two DDR4 memory slots (up to 32 GB, 2133/2400/2666 MHz), this board provides a stable platform for modern workloads. Its small form factor enables builds within tighter cases, yet it doesn’t skimp on essential connectivity — featuring HDMI and VGA display outputs, USB 3.0 & USB 2.0 ports, 4 SATA III ports for storage, a PCIe x16 slot for a discrete GPU, and standard internal headers for fan, USB, and front-panel connections.
Network connectivity is handled via an onboard Realtek RTL8105E 10/100 Mbps Ethernet solution, which is sufficient for basic needs but lacks gigabit speeds — an important point to consider for users with high-speed networking requirements. The motherboard includes a 3-year domestic warranty and comes complete with accessories: SATA cable, I/O shield, driver disc, and user manual.
Technical Details
| Brand | ZEBRONICS |
| Model Name | ZEB-H110-D4 |
| CPU / Processor Support | Intel 6th & 7th generation series: Core i3 / i5 / i7 / Pentium / Celeron Socket: LGA 1151 |
| Chipset | Intel H110 |
| Memory / RAM | 2 × DDR4 DIMM slots Maximum capacity: 32 GB Supported speeds: 2133 / 2400 / 2666 MHz |
| Expansion Slot(s) | 1 × PCI Express x16 slot |
| Storage Interfaces | 4 × SATA III (6.0 Gb/s) ports (No M.2 / NVMe slot) |
| I/O (Rear Panel) | 1 × HDMI port 1 × VGA (D-Sub) port 2 × USB 2.0 ports 2 × USB 3.0 ports 1 × RJ-45 Ethernet 3-in-1 Audio jacks 1 × PS/2 keyboard port 1 × PS/2 mouse port |
| Onboard Headers / Internal Interfaces | – 1 × 24-pin ATX main power connector – 1 × 4-pin 12V CPU power connector – Front panel header – Front audio header – 1 × speaker header – 2 × internal USB 2.0 headers – 1 × internal USB 3.0 header – 1 × CPU fan header (4-pin) – 1 × SYS / chassis fan header – 1 × Clear CMOS header – 4 × SATA III connectors |
| Networking / LAN | Realtek RTL8105E 10/100 Mbps Ethernet controller (no gigabit) |
| Audio | 3-in-1 analog audio jacks (5.1 audio support) |
| BIOS / Firmware | AMI BIOS |
| Form Factor / Size | Micro-ATX |
| Dimensions & Weight | ~ 22.1 × 27.5 × 5.5 cm (approx, including packaging) ~ 800 g (product + packing) |
| Warranty | 1 Year |
