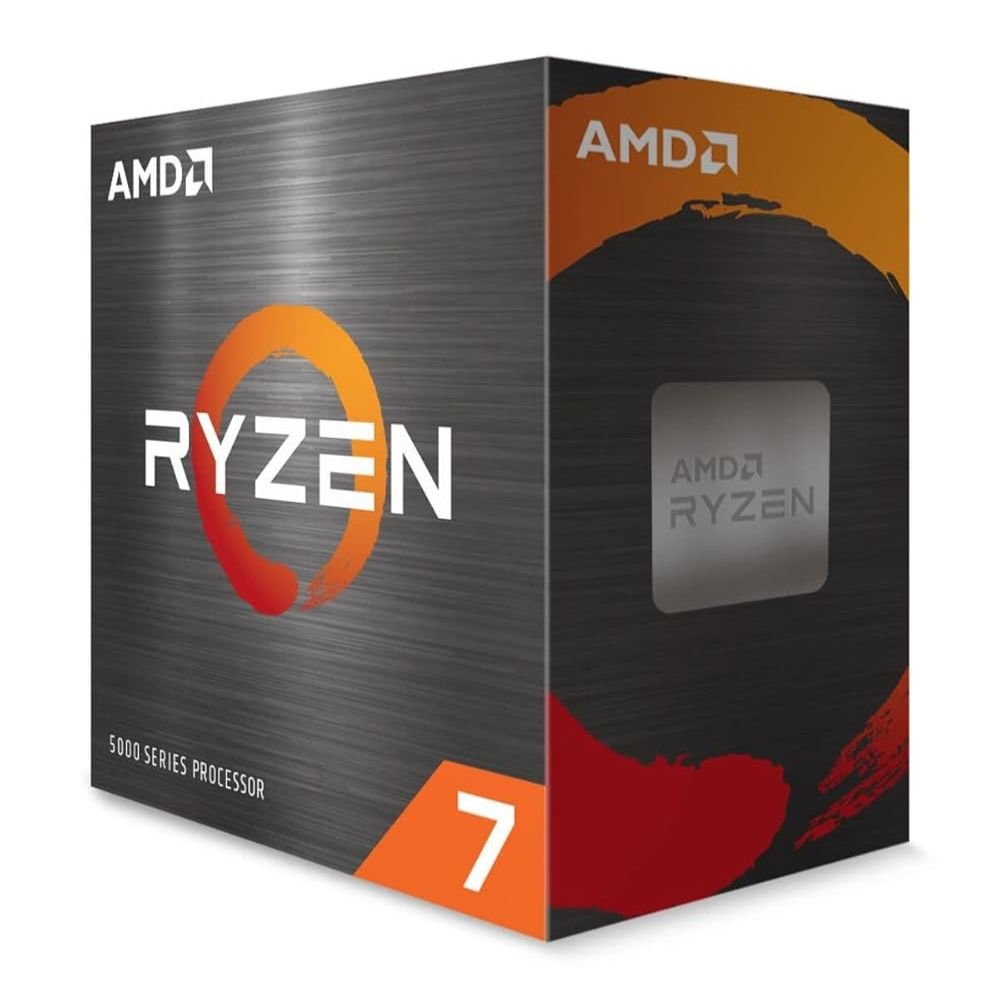

AMD 5000 Series Ryzen 7 5700X Desktop Processor 8 cores 16 Threads 36 MB Cache 3.4 GHz Upto 4.6 GHz AM4 Socket 500 Series Chipset (100-100000926WOF)
About this item
8 Cores & 16 Threads – Excellent for multitasking, gaming, and content creation.
Base Clock – 3.4 GHz and Boost Clock: Up to 4.6 GHz – Fast performance when you need it most.
36 MB Smart Cache – Large cache improves data access and responsiveness.
Zen 3 Architecture – Efficient design with strong single- and multi-threaded performance.
AM4 Socket Compatibility – Works with 500-series chipsets (e.g., X570, B550) and many older AM4 boards.
Unlocked for Overclocking – You can tune performance further if you want.
PCIe 4.0 Support – Faster connectivity for modern GPUs and SSDs.
65W TDP – Good performance without excessive power draw.
No Included Cooler (WOF) – You’ll need a compatible cooler sold separately.
Technical Details
| Brand | AMD |
| Model Name | AMD Ryzen™ 7 5700X |
| Model Number | 100-100000926WOF |
| Series | Ryzen 5000 Series |
| Form Factor | Desktops, Boxed Processor |
| Product Family / Line | AMD Ryzen™ 7 (Zen 3) |
| Former Codename | Vermeer |
| CPU Architecture | Zen 3 |
| No. of Cores | 8 |
| No. of Threads | 16 |
| Base Clock Speed | 3.4 GHz |
| Max Boost Clock | Up to 4.6 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 4 MB |
| L3 Cache | 32 MB |
| Total Cache (L2 + L3) | 36 MB (common marketing figure) |
| Default TDP (Thermal Design Power) | 65 W |
| Process Technology | CPU Cores: 7 nm (TSMC) I/O Die: 12 nm (GlobalFoundries) |
| CPU Socket | AM4 |
| Socket Count | 1P |
| Chipset Support | AMD X570 / B550 / X470 / B450 / (A520 / B350 / X370, etc.) |
| Memory Support | DDR4 (dual-channel), up to ~3200 MHz typical |
| PCI Express Version | PCIe 4.0 |
| Boost Technology | Precision Boost 2 |
| Supported Instruction Sets | x86-64, AES, AVX, AVX2, FMA3, MMX(+), SHA, SSE (1-4.2), SSE4A, SSSE3 |
| Overclocking | Unlocked for manual overclocking |
| Integrated Graphics | None (requires discrete GPU) |
| Thermal Solution Included | No (WOF – Without Fan/Cooler) |
| Max Operating Temp (Tjmax) | ~90 °C |
| Launch Date | April 4, 2022 |
| Supported OS | Windows 10 / 11 64-bit, Linux (varies by vendor) |
| Warranty | 2 Years |
