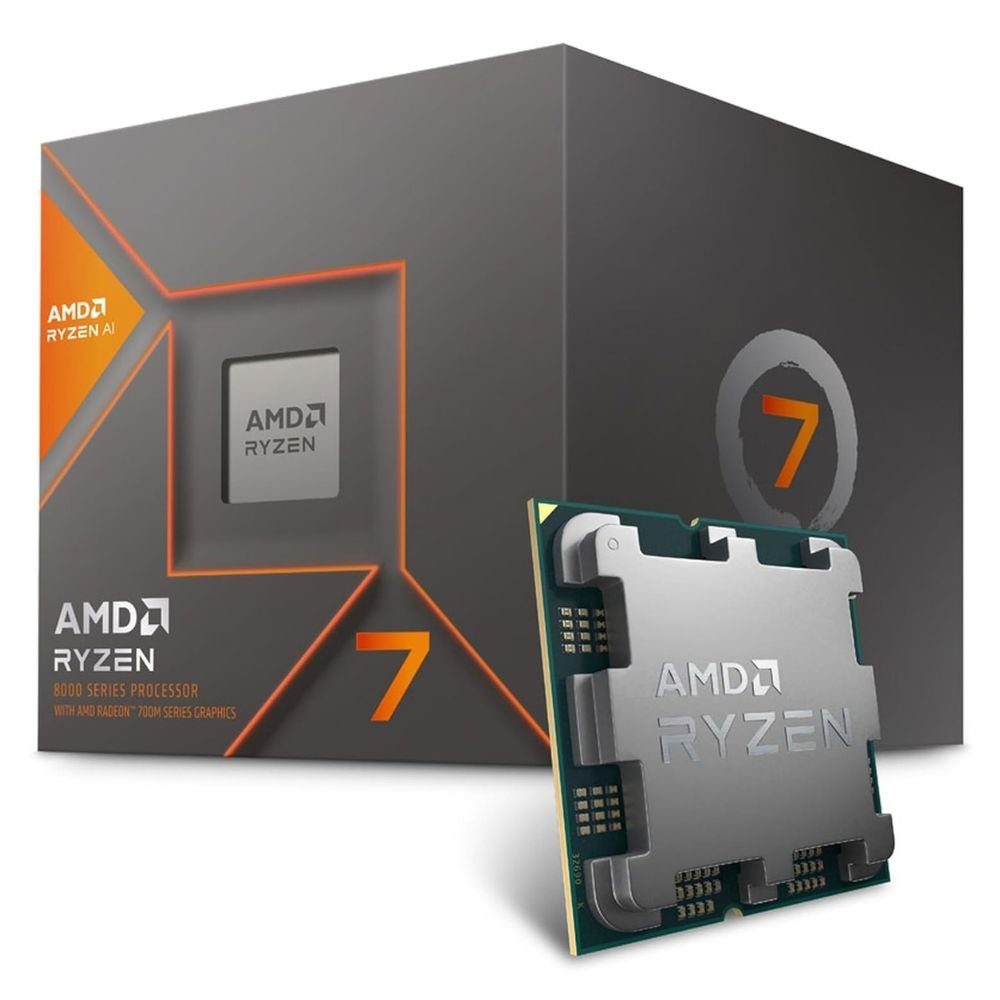

AMD Ryzen 7 8700G Desktop Processor 8 cores 16 Threads 24 MB Cache 4.2 GHz Upto 5.1 GHz AM5 Socket (100-100001236BOX)
About this item
- 6 Cores & 16 Threads, 24 MB Cache
- Base Clock: 4.2 GHz, Max Boost Clock: up to 5.1 GHz
- Memory Support: DDR5
- Memory Channels: 2, TDP: 65W,
- PCI Express Generation : PCIe Gen 4
Technical Details
| Brand | AMD |
| Model Name | AMD Ryzen 7 8700G |
| Part Number | 100-100001236BOX |
| Series | Ryzen 8000 Series |
| Form Factor | Desktops |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Phoenix |
| Processor Architecture | Zen 4 |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| # of Threads | 16 |
| Max. Boost Clock | Up to 5.1 GHz |
| Base Clock | 4.2 GHz |
| L2 Cache | 8 MB |
| L3 Cache | 16 MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| CPU Compute Die (CCD) Size | 178mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Max. Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 4 (40Gbps) | 2 |
| Native USB 3.2 Gen 2 (10Gbps) | 2 |
| Native USB 2.0 (480Mbps) | 1 |
| PCI Express Version | PCIe 4.0 |
| Native PCIe Lanes (Total/Usable) | 20 , 16 |
| NVMe Support | Boot , RAID0 , RAID1 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | Yes (Requires platform support) |
| Graphics Capabilities | |
| Graphics Model | AMD Radeon 780M |
| Graphics Core Count | 12 |
| Graphics Frequency | 2900 MHz |
| DirectX Version | 12 |
| DisplayPort Version | 2.1 |
| DisplayPort Extensions | Adaptive-Sync , HDR Metadata , UHBR10 |
| DisplayPort Max Refresh Rates (SDR) | 7680×4320 @ 60Hz , 3840×2160 @ 240Hz , 3440×1440 @ 360Hz , 2560×1440 @ 480Hz , 1920×1080 @ 600Hz |
| DisplayPort Max Refresh Rates (HDR) | 7680×4320 @ 60Hz , 3840×2160 @ 240Hz , 3440×1440 @ 360Hz , 2560×1440 @ 480Hz , 1920×1080 @ 600Hz |
| HDMI Version | 2.1 |
| HDCP Version Supported | 2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Multi-Monitor Support | Yes |
| Max Displays | 4 |
| AMD FreeSync | Yes |
| Wireless Display | Miracast |
| Max Video Encode Bandwidth (SDR) | 1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1 |
| Max Video Decode Bandwidth | 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1 |
| AI Engine Capabilities | |
| Brand Name | AMD Ryzen AI |
| AMD Ryzen AI | Available |
| Performance | Up to 16 TOPS |
| Warranty | 3 Years |
