Ant Value G41MAD3 mATX DDR3 Motherboard LGA775 Support Intel Core 2 Duo/Core 2 Quad DDR3, USB 2.0 Ports, HD 6 Channel Audio
About this item

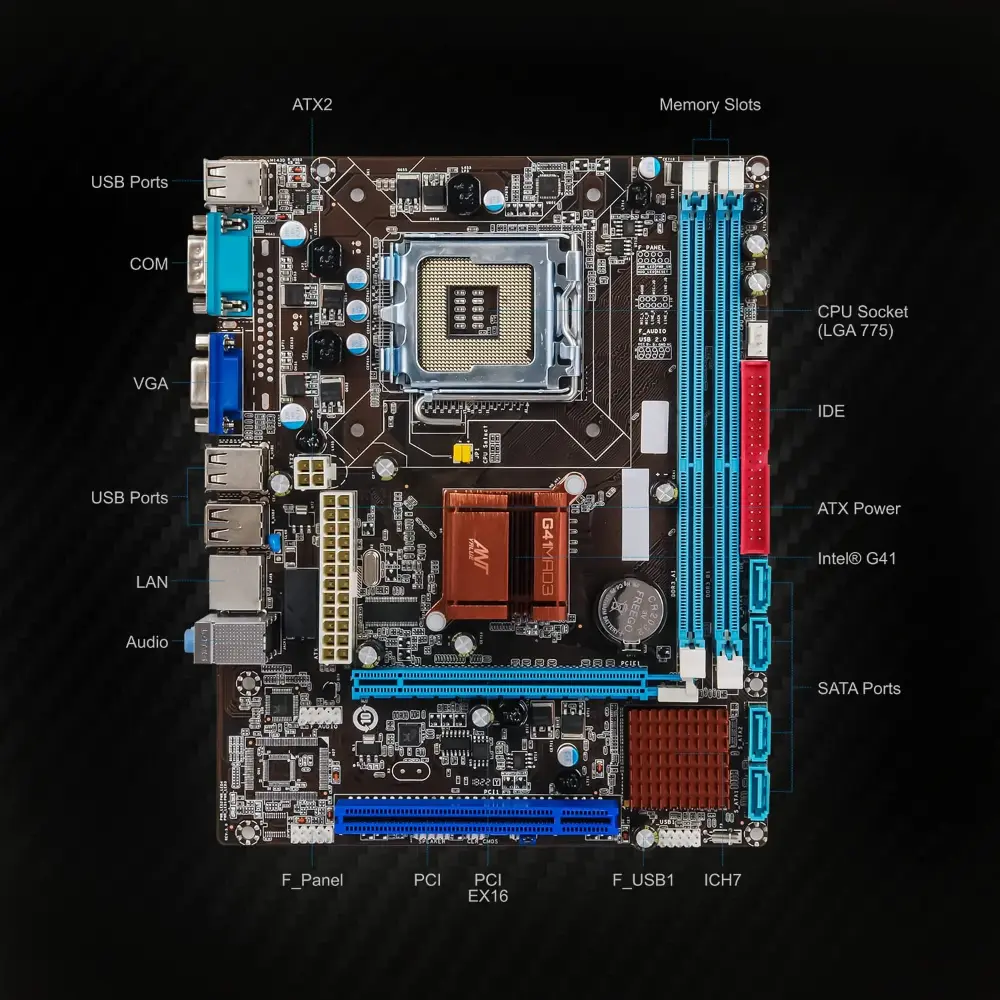

- Form Factor: Micro-ATX (mATX)
- Socket Type: LGA 775
- Processor Support: Intel Core 2 Duo / Core 2 Quad
- Chipset: Intel G41 + ICH7
- RAM Support: 2× DDR3 (1066 / 1333 MHz)
- Expansion Slots: 1× PCIe x16, 1× PCI
- Storage: 4× SATA II (3Gb/s) + 1× IDE
- Graphics Output: VGA Port
- USB Ports: Up to 6× USB 2.0 (rear)
- LAN: 10/100 Mbps Ethernet
- Audio: 6-Channel HD Audio

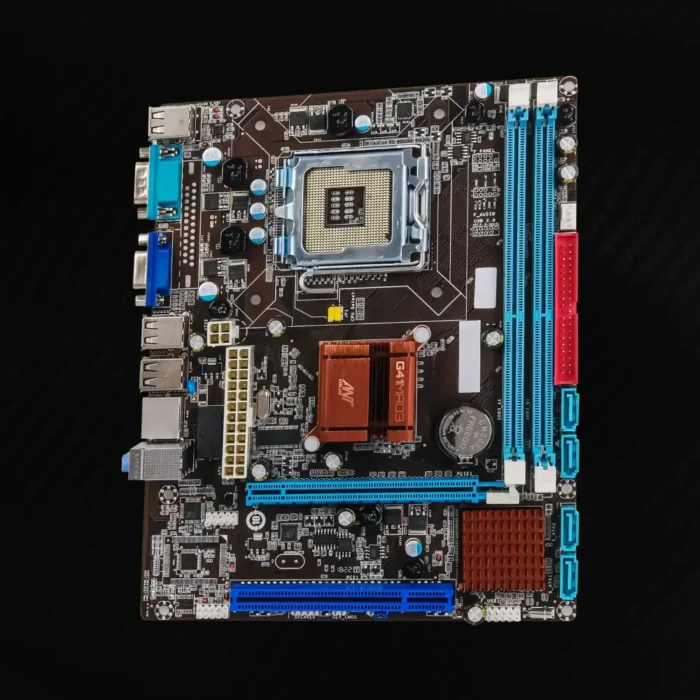

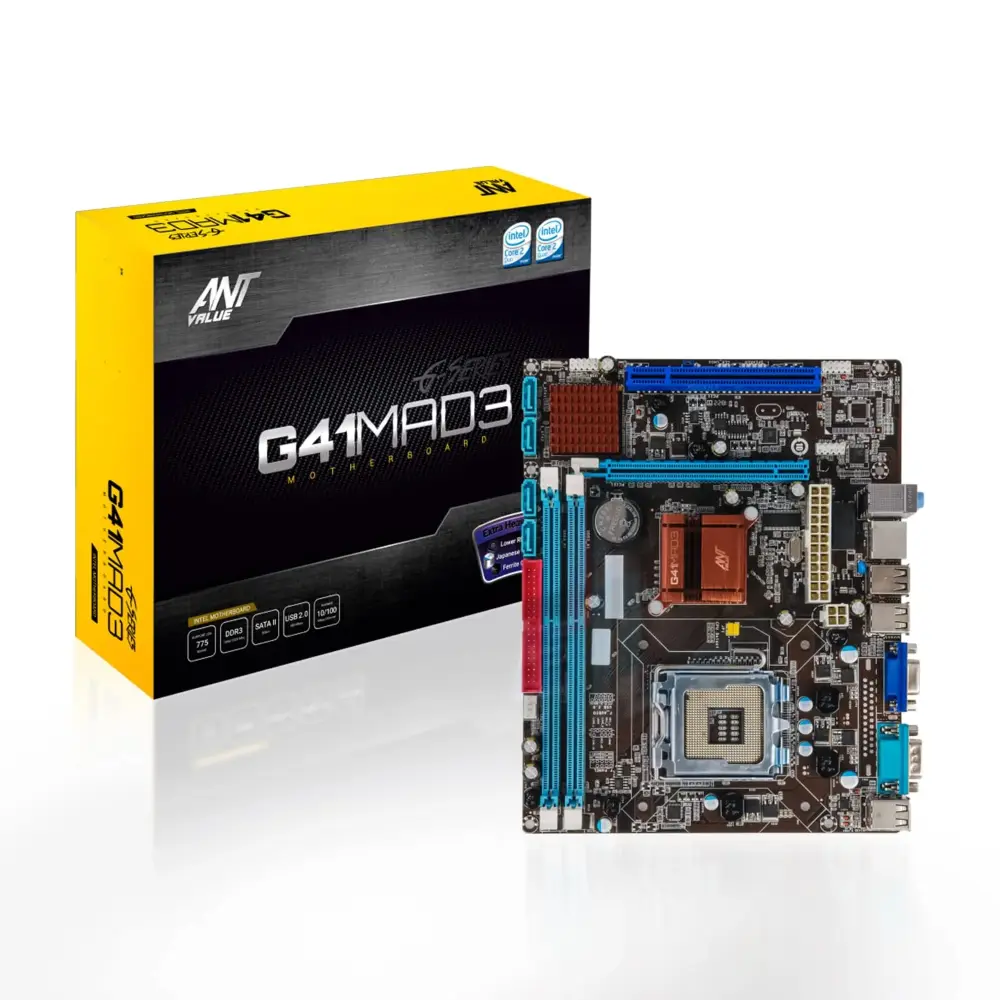

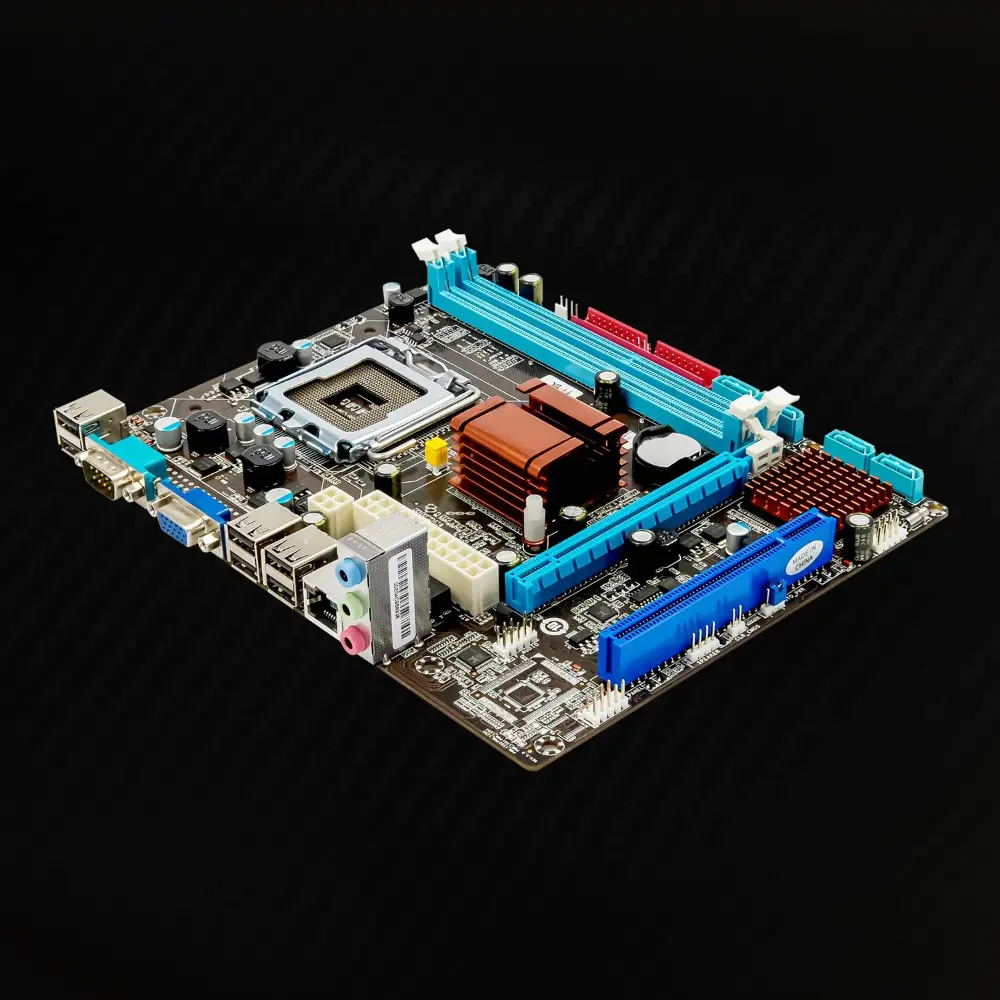

The Ant Value G41MAD3 is a reliable and affordable micro-ATX motherboard designed for users looking to build or upgrade a budget desktop system using legacy Intel processors. Built on the Intel G41 chipset, it supports LGA 775 socket processors such as Intel Core 2 Duo and Core 2 Quad, ensuring stable performance for everyday computing tasks.
This motherboard features support for DDR3 memory up to 1333 MHz with dual DIMM slots, delivering improved speed and responsiveness for multitasking. It comes equipped with essential expansion options including a PCIe x16 slot for dedicated graphics and a PCI slot for additional components.
For storage, the board offers multiple connectivity options including 4 SATA II ports and an IDE interface, making it suitable for both modern and older storage devices. The inclusion of up to 6 USB 2.0 ports ensures seamless connectivity for peripherals, while onboard Realtek 10/100 LAN provides reliable network access.
Additionally, the integrated 6-channel HD audio enhances the multimedia experience, making it ideal for home, office, or entry-level gaming setups. With durable components like ferrite chokes and quality capacitors, the G41MAD3 ensures stable power delivery and long-term reliability.
Overall, the Ant Value G41MAD3 motherboard is a cost-effective solution for users seeking a dependable platform for basic computing or refurbishing older PC systems.
Technical Details
| Brand | Ant Value |
| Model Number | G41MAD3 |
| Form Factor | Micro-ATX (mATX) |
| CPU Socket | LGA 775 |
| Processor Support | Intel Core 2 Duo / Core 2 Quad |
| Chipset | Intel G41 (Northbridge) + ICH7 (Southbridge) |
| FSB Support | 800 / 1066 / 1333 MHz |
| Memory Type | DDR3 |
| Memory Slots | 2 DIMM Slots |
| Memory Speed | 1066 / 1333 MHz |
| Max RAM Capacity | Up to 8GB (typical for G41 boards) |
| Graphics Output | VGA Port |
| Integrated Graphics | Supported (Intel G41 chipset) |
| Expansion Slots | 1 × PCIe x16, 1 × PCI |
| Storage Ports | 4 × SATA II (3Gb/s), 1 × IDE |
| USB Ports | Up to 8 × USB 2.0 (6 rear + internal headers) |
| LAN | Realtek 10/100 Mbps Ethernet |
| Audio | Realtek 6-Channel HD Audio |
| Rear I/O Ports | VGA, LAN, USB 2.0, Audio Jacks, COM Port |
| Onboard Connectors | USB header, Front panel audio header |
| Mounting Points | 6 mounting holes |
| Included Accessories | SATA cable, IDE cable, I/O shield, Driver CD, Manual |
| Warranty | 1 Year |
