About this item
- AMD AM4 Socket Micro ATX Motherboard
- 2 DIMMs, Supports DDR4 3200+(OC)*
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- Graphics Output : HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)*
- 6 USB 3.1 Gen1 (2 Front, 4 Rear)
- Realtek Gigabit LAN
AMD AM4 Socket with support for Ryzen 3, 5, 7, 9 Series and Athlon processors. Based on High Density Glass Fabric PCB design reducing the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2 x DDR4 DIMM slots that can take in a maximum of 32GB memory, with support for DDR4 3200+(OC)/ 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC. It supports DirectX 12, Pixel Shader 5.0. 2 x USB 2.0 Ports, 4 x USB 3.1 Gen1 Ports, 1 x RJ-45 LAN Port with LED and also comes with ELNA audio caps
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug. 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)
Comes with three graphics outputs including HDMI, DVI-D, D-Sub. Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz. Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz. Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz. Supports HDCP 1.4 with DVI-D and HDMI Ports
Technical Details
| Brand | ASRock |
| Model ID | B450M-HDV |
| Essentials | |
| Form Factor | Micro-ATX |
| Socket Type | AM4 |
| Chipset | AMD B450 |
| Chipset Manufacturer | AMD |
| Memory | |
| Memory Configuration | 64GB GB DDR4 Dual Channel 2 DDR4 DIMM |
| ECC Support | Non-ECC |
| Buffered Memory | No |
| Storage | |
| SATA 6 Gb/s | 4 |
| RAID Configurations | 0, 1, 10 |
| Graphics | |
| Integrated Graphics card | NA |
| Audio | |
| Audio Codec | Realtek Audio ALC887/897 |
| Audio Channels | 7.1 |
| Audio Features | Support Surge Protection |
| Connectivity | |
| Ethernet Card | 10/100/1000 Mb/s LAN |
| Wireless and Bluetooth | Realtek RTL8111H (802.3az) |
| Expansion Slots | |
| PCI Slots | 2 |
| PCIe x1 Slots, Generation | 1 |
| PCIe x16 Slots, Generation | 1 |
| Internal I/o Headers | |
| USB 2.0 Headers | 1 |
| USB 3.0 Headers | 1 |
| ATX Power Connectors | 1 (24 Pin ATX Power Connectors) |
| Fan Headers | 1 (Processor Fan Headers), 2 (System Fan Headers) |
| VGA/Dsub Connectors | 1 |

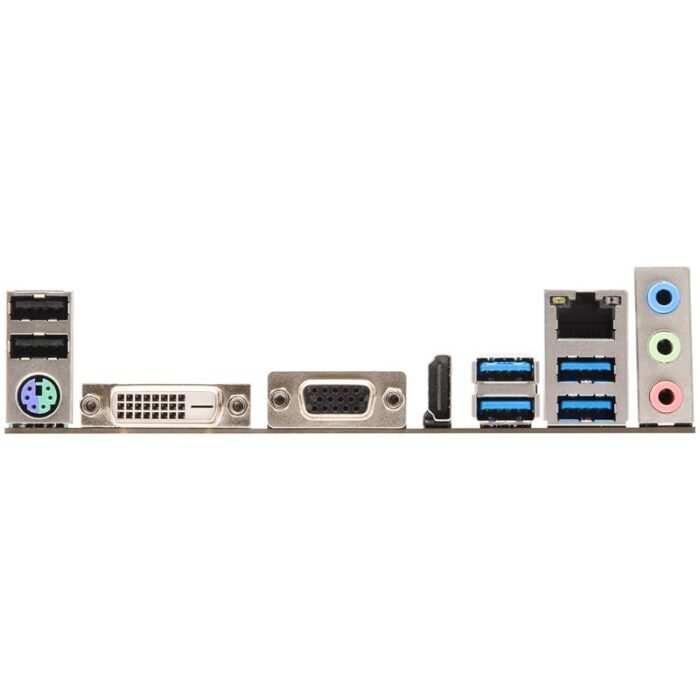

| Back Panel Ports | |
| USB 2.0 Ports, Controller | 2 |
| HDMI Ports | 1 |
| DVI Ports | 1 |
| VGA/D Sub Ports | 1 |
| Audio I/O Channels | 1 |
| RJ-45 Ethernet Jacks | 1 |
| PS/2 | 1 |
| General Features | |
| Hardware Monitoring | Temperature Sensing, Fan Tachometer, Voltage Detection, Fan Multi Speed Control |
| Support CDs | Drivers, Utilities, Antivirus Software, Google Chrome Browser and Toolbar |
| OS Support | Windows 10 64-bit, Windows 11 64-bit |
| Advanced Features | ASRock Super Alloy, Plug and Play BIOS, Full Spike Protection, Ultra M.2 |
| Dimensions | |
| Dimensions | 304 x 64 x 244 mm |
| Weight | 730 g |
| In The Box | |
| Sales Package | 1 Motherboard, Support CD, I/O Shield, Screw for M.2 Socket, 2 SATA Data Cables |
| Warranty | |
| Warranty | 3 Years |
