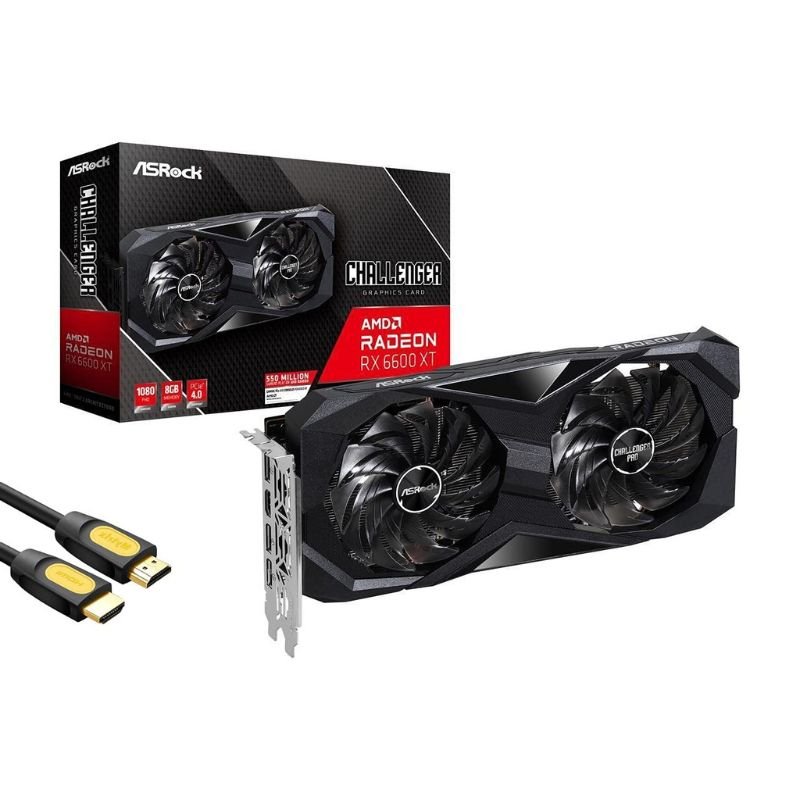

ASRock Challenger D Radeon RX 6600 XT 8GB GDDR6 Graphics Card | 128-Bit | PCIe 4.0 | Dual Fan Cooling | HDMI 2.1 & 3× DisplayPort 1.4 | VRR & DSC Support (RX6600XT CLD)
About this item
- 2000 MHzClock Speed
- Chipset: AMD Radeon
- BUS Standard: PCI Express 4.0
- Graphics Engine: Radeon RX 6600 XT
- Memory Interface 128 bit

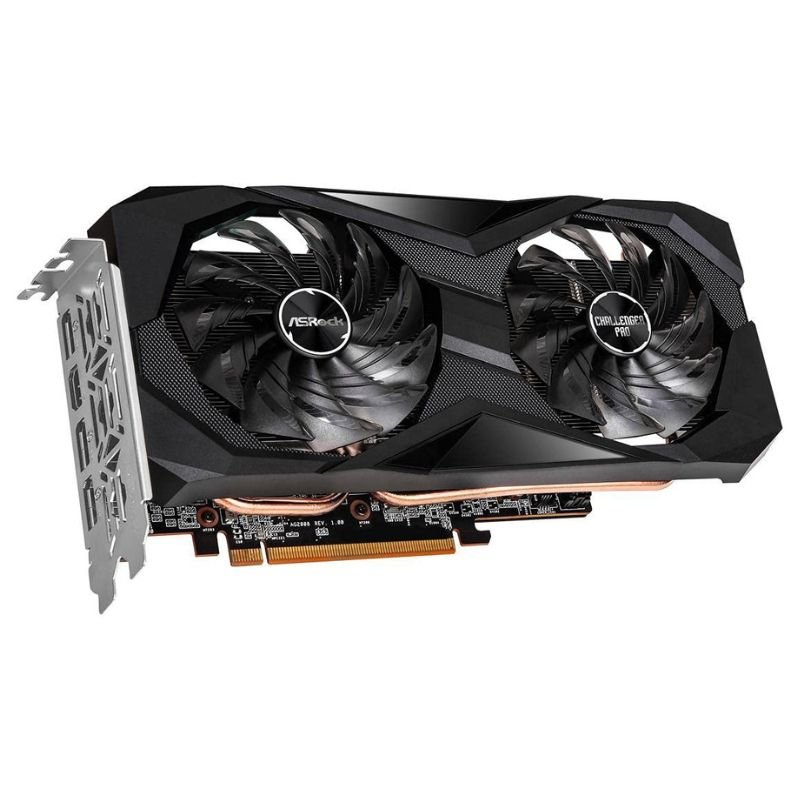

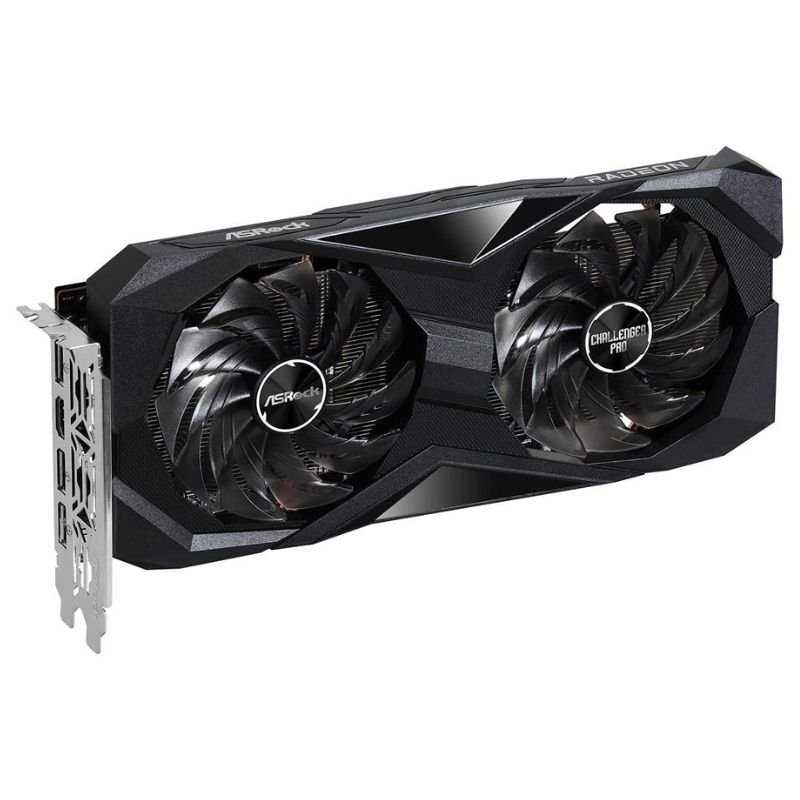

Dual Fan Design – Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Ultra-fit Heat Pipe – Consolidated to Maximize the Contact. The heatpipes are consolidated to maximize the contact among each other and also the GPU baseplate for the optimized heat dissipation.
Striped Axial Fan – Designed For Enhanced Airflow. AS Rock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

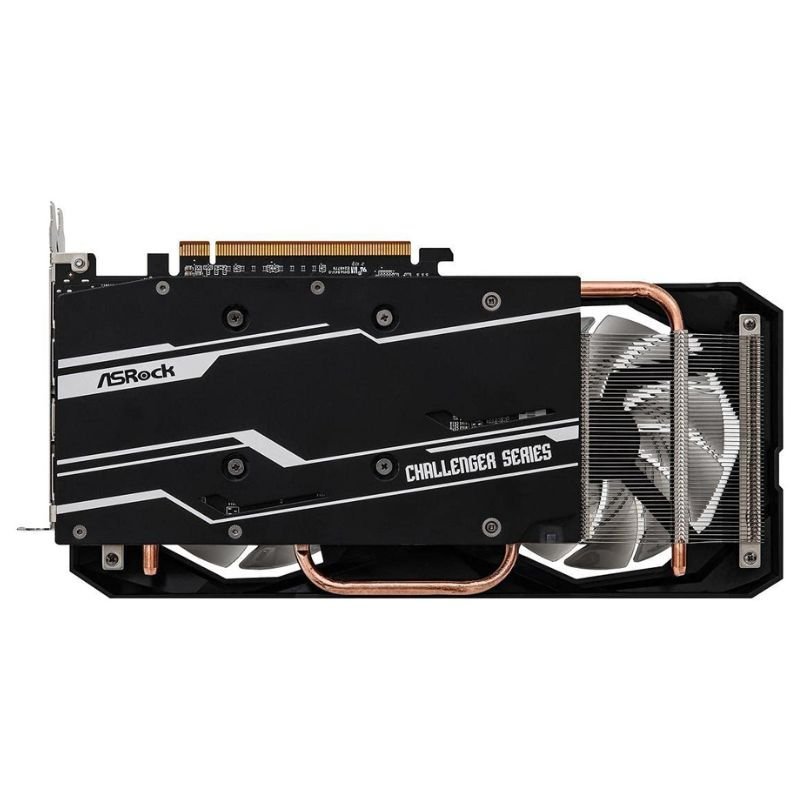

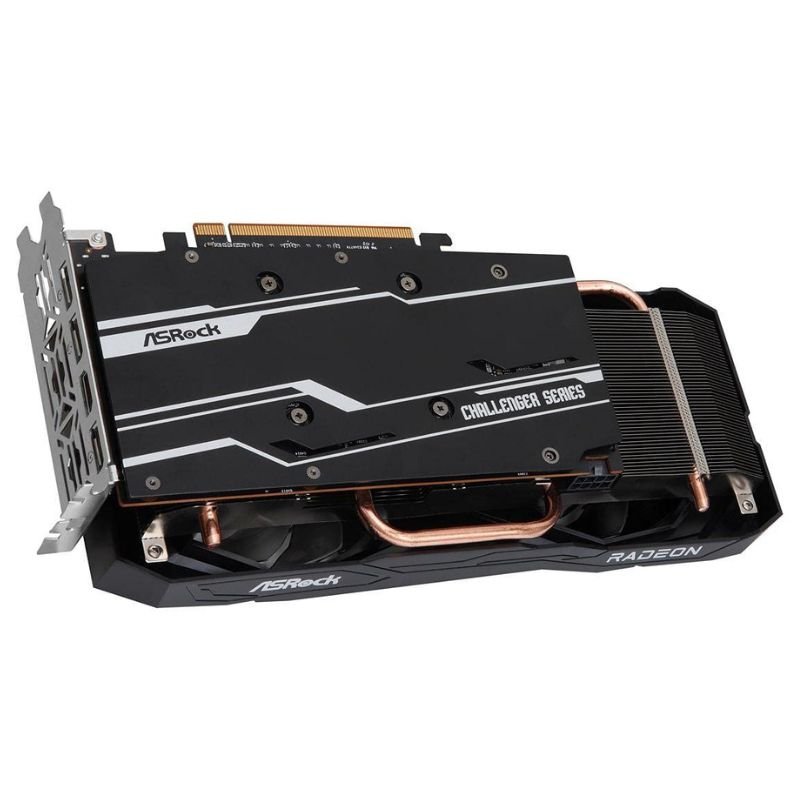

Stylish Metal Backplat – Solid, Fancy, Cool. Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visuals. It also helps to enhance cooling with the premium thermal pads equipped backside.
Premium Thermal Pad – Better Heat Transfer. The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Technical Details
| GPU Model | AMD Radeon RX 6600 XT |
| Process Node | 7 nm |
| Stream Processors (Shaders) | 2048 |
| Base Clock | 2000 MHz |
| Game Clock | Up to ~2382 MHz |
| Boost Clock | Up to ~2593 MHz |
| Memory Size | 8 GB GDDR6 |
| Memory Bus Width | 128-bit |
| Memory Speed | 16 Gbps effective |
| Memory Bandwidth | 256 GB/s (approx.) |
| PCI Express Interface | PCIe 4.0 x8 |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Support | OpenGL 4.6 |

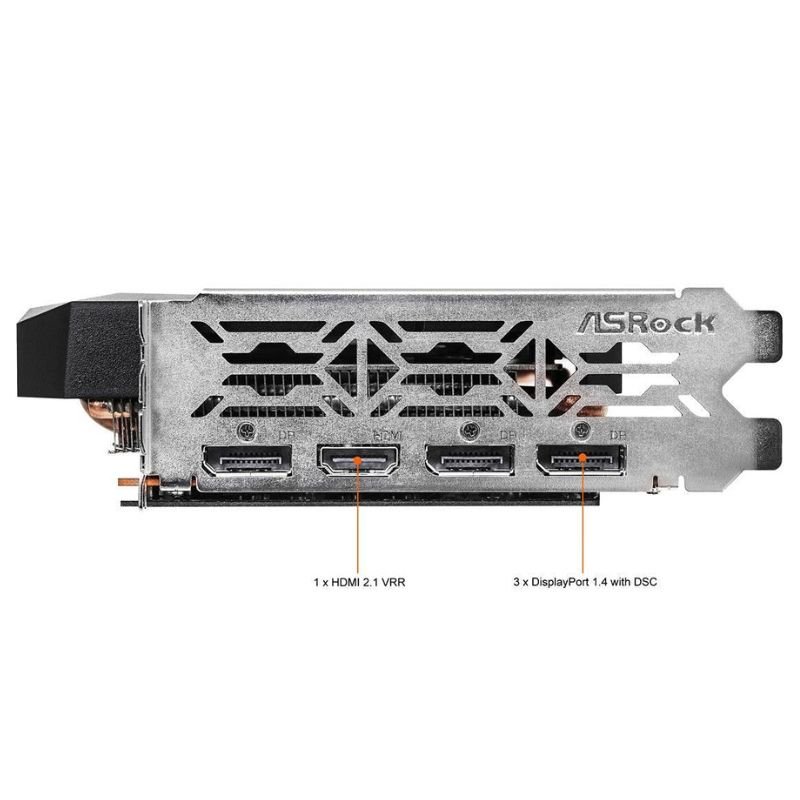

| Display Outputs | 1× HDMI 2.1 (VRR) & 3× DisplayPort 1.4 with DSC |
| Maximum Digital Resolution | Up to 7680×4320 |
| Recommended PSU | 500 W |
| Power Connector | 1× 8-pin |
| Cooling | Dual-fan with 0 dB silent cooling & heatpipes |
| Form Factor | Dual-slot (~269 × 132 × 41 mm) |
| Technologies | Super Alloy Components, Striped Axial Fans |
| Warranty | 2 Years |
