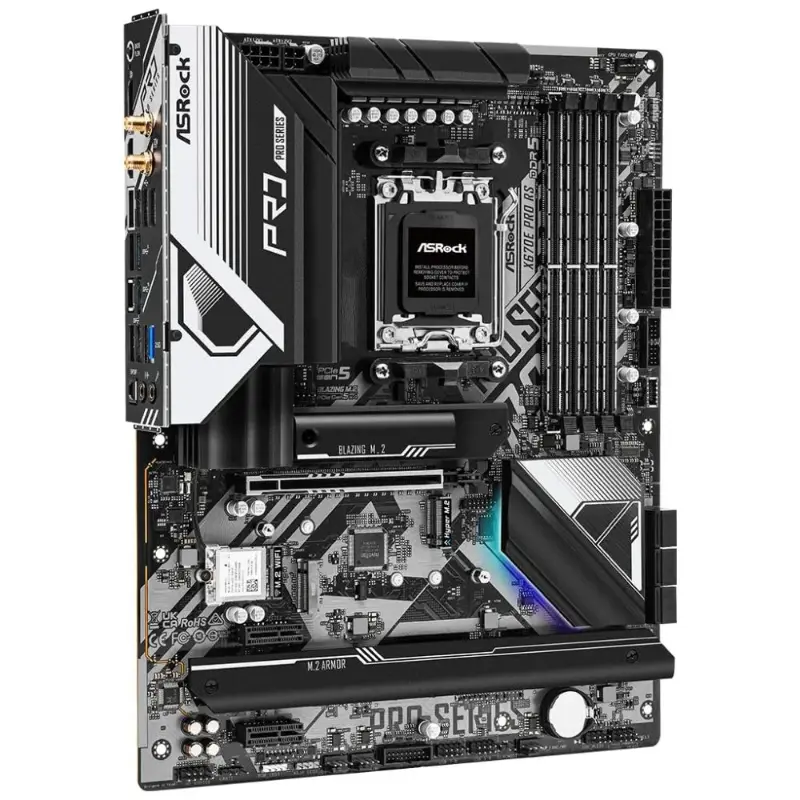

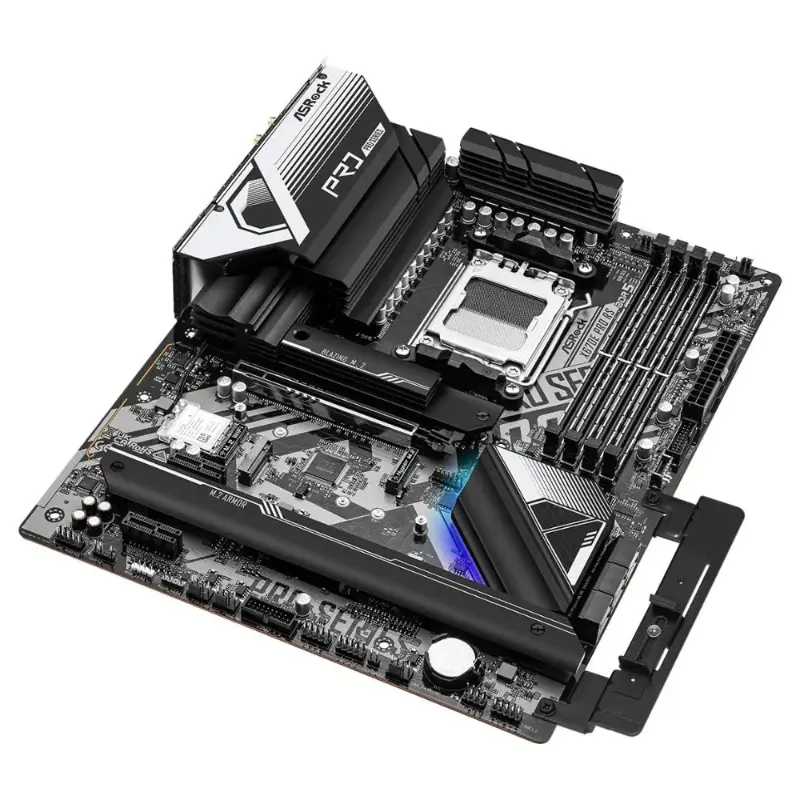

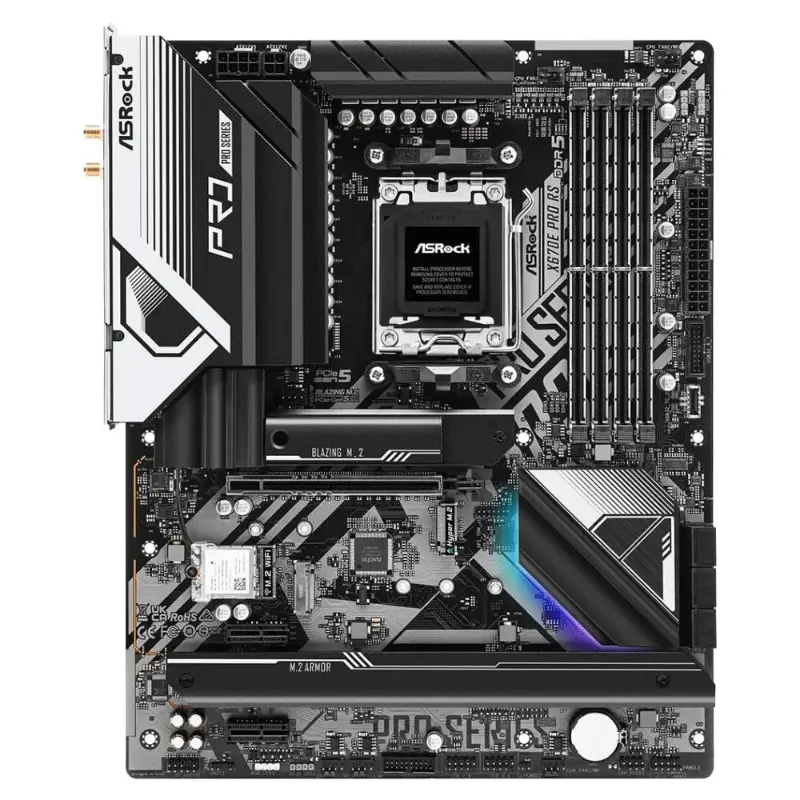

ASRock X670E PRO RS Socket AMD AM5, Chipset AMD X670, DDR5, SATA3 & M.2 ATX Motherboard

• PCIe Gen5 (Graphics, M.2)
• Dual Channel DDR5

Rock-Solid Durability

• Server-Grade Low-Loss PCB
• 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor
• Flexible Integrated I/O Shield

Ultrafast Connectivity

• 2.5G LAN, 802.11ax Wi-Fi 6E Module

EZ Update

• BIOS Flashback Button
• ASRock Auto Driver Installer

EZ Troubleshooter

• ASRock Post Status Checker

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600+(OC)
• Max. capacity of system memory: 128GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

• 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2×2 with extended 6GHz band support
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth + High speed class II
• Supports MU-MIMO

• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

Chipset:

• 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

Chipset:

• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes
• 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 6 x SATA3 6.0 Gb/s Connectors

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

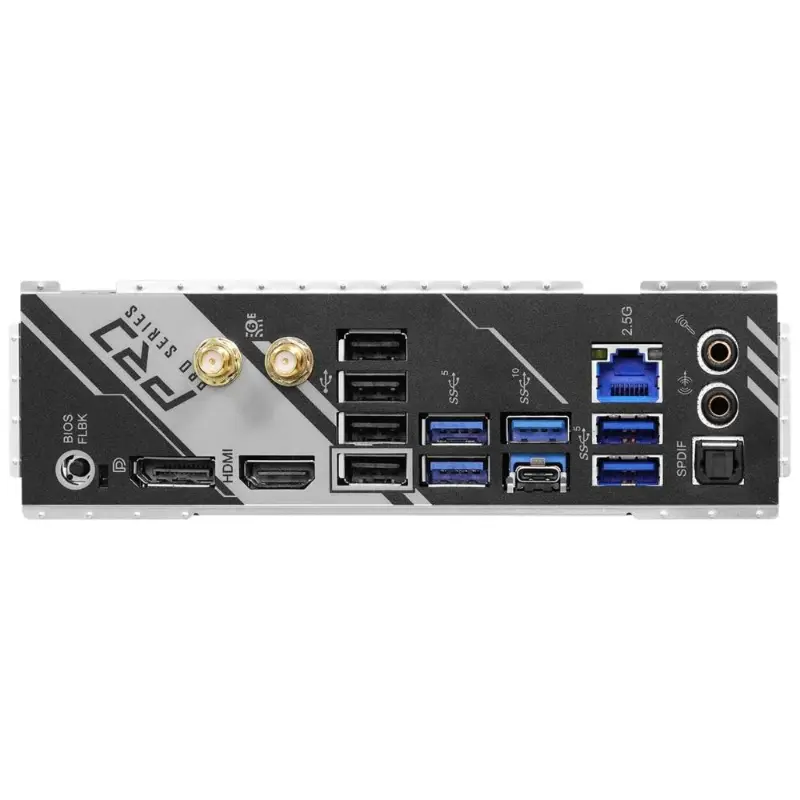

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF Out Port
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
• 4 x USB 3.2 Gen1 Ports
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC

UEFI

• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

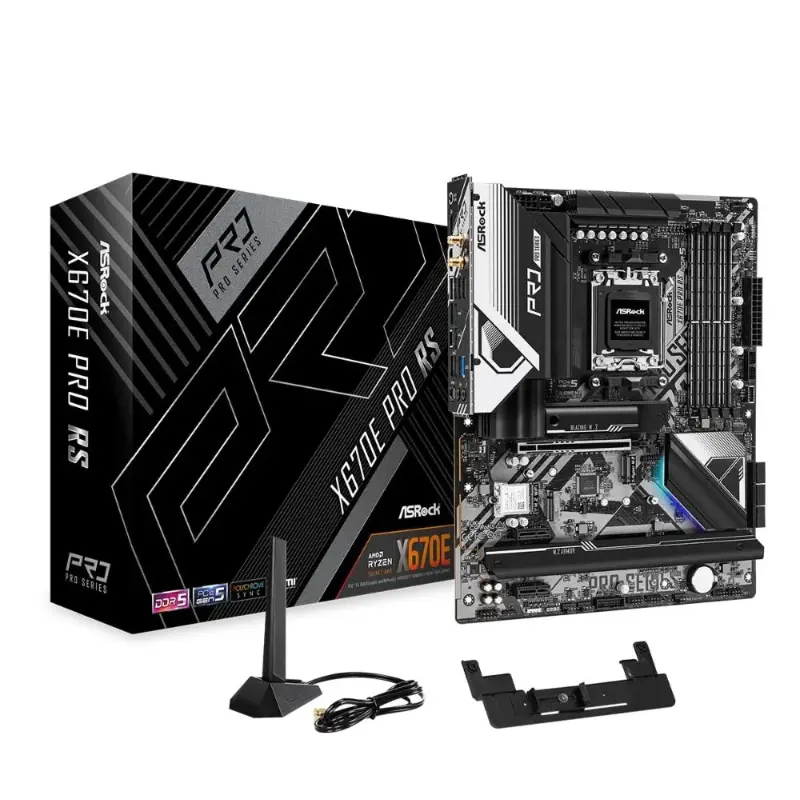

• 1 x User Manual
• 2 x SATA Data Cables
• 1 x ASRock WiFi 2.4/5/6 GHz Antenna
• 4 x Screws for M.2 Sockets
• 1 x Graphics Card Holder

• ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• 8 Layer PCB

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
