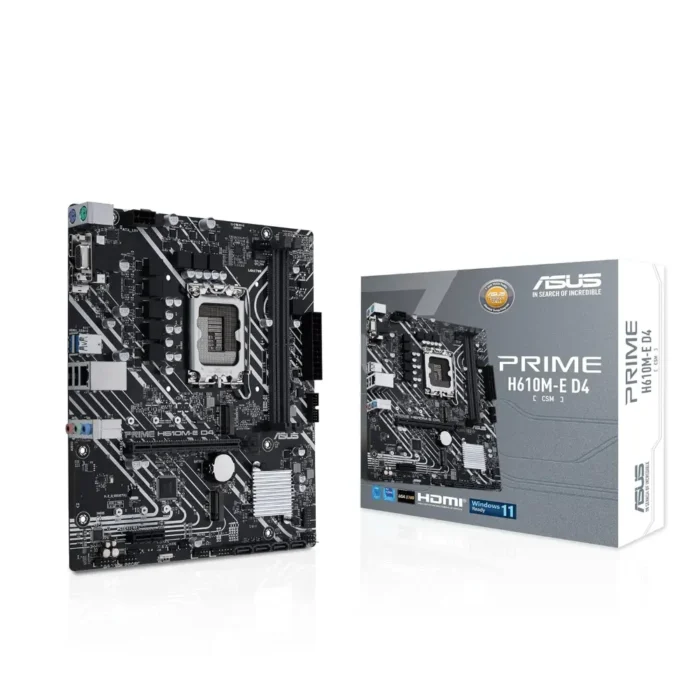

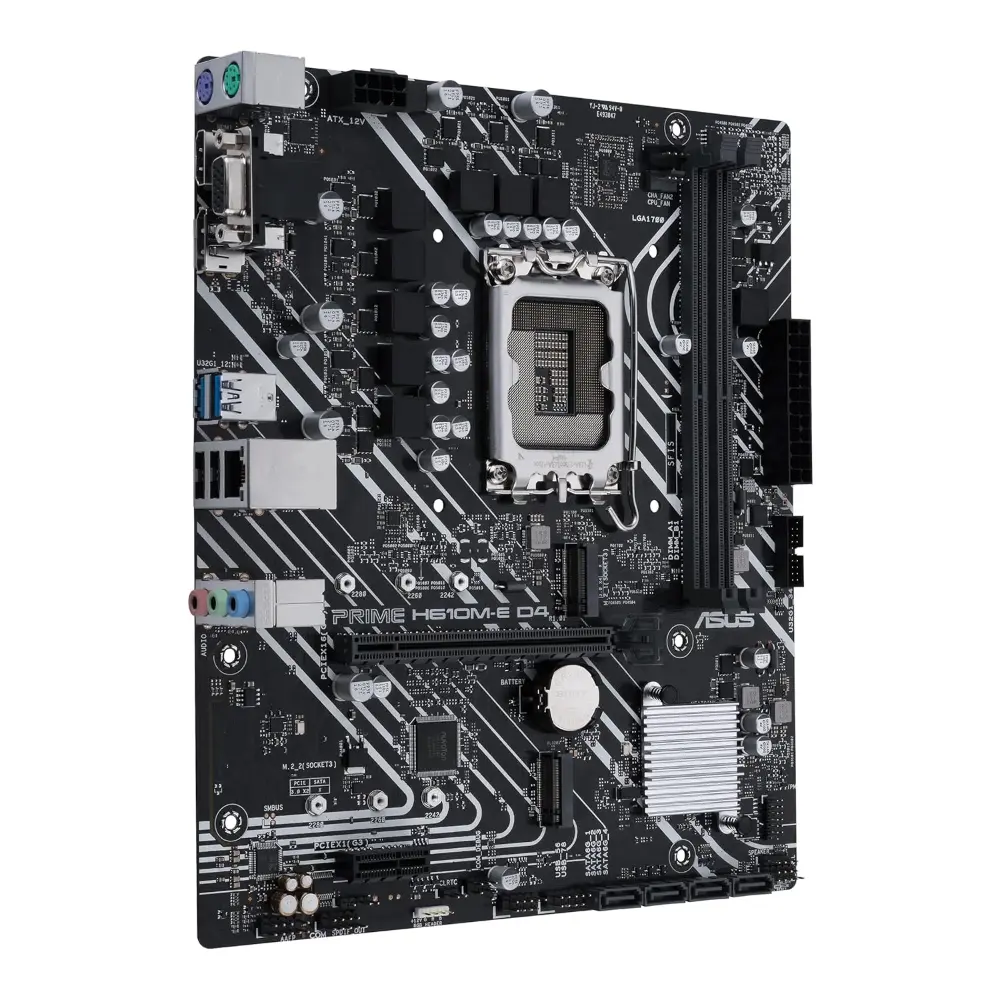

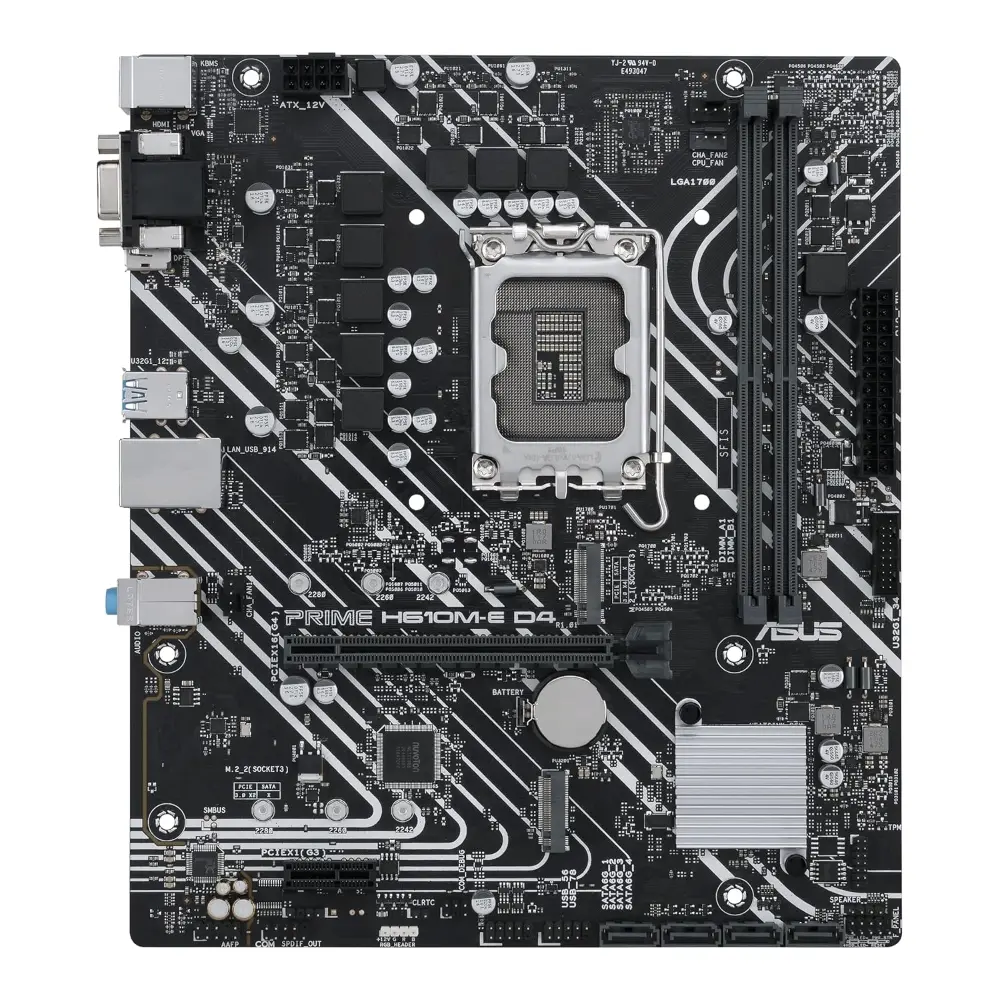

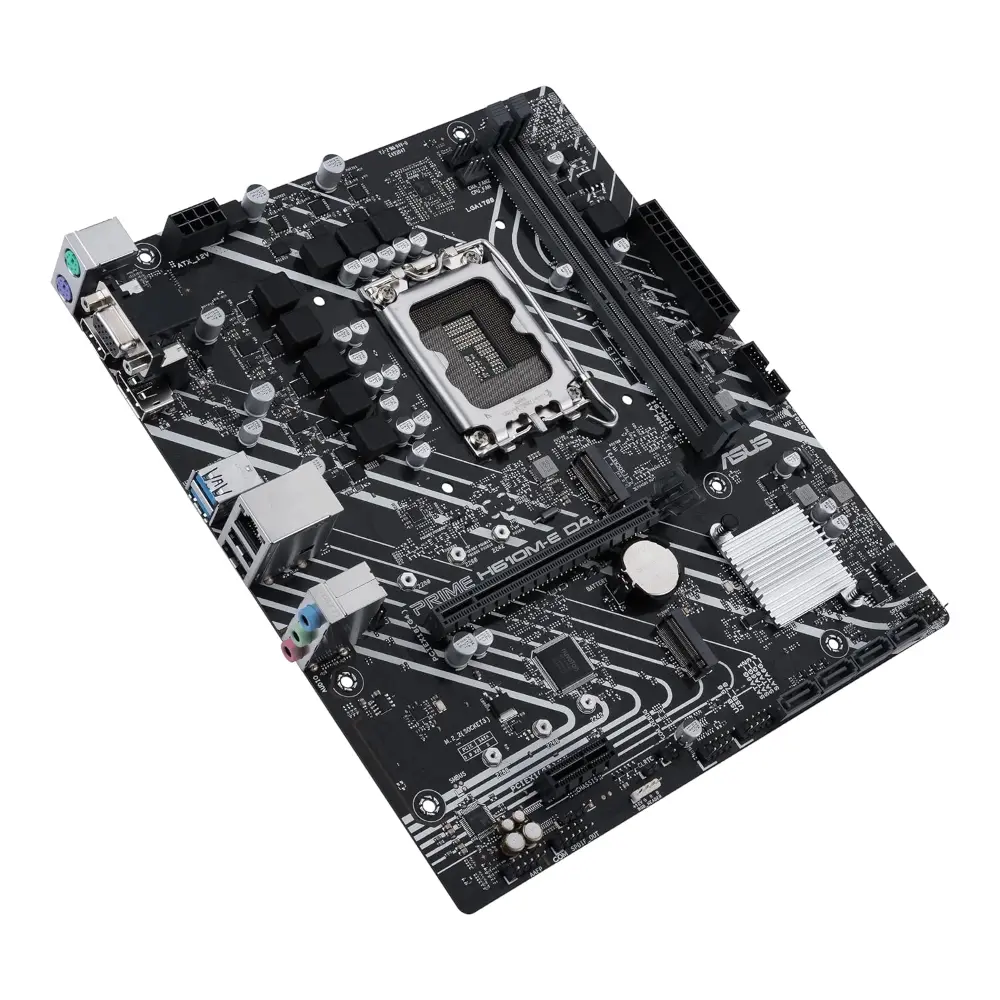

ASUS Prime H610M-E D4-CSM LGA 1700(Intel® 12th&13th Gen) mATX Commercial Motherboard (PCIe 4.0, DDR4, 2xM.2 Slots, 1Gb LAN, DisplayPort/HDMI/D-Sub, USB 3.2 Gen 1 Ports, COM Header, RGB Header, ACCE)
About this item
- Intel LGA 1700 Socket: Ready for 14th, 13th & 12th Gen Intel processors
- Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
- Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
- ASUS Control Center Express (ACCE) for easier IT endpoint management
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Technical Details
| Brand | ASUS |
| Model Number | ASUS Prime H610M-E D4-CSM |
| Form Factor | Micro-ATX (mATX) |
| Chipset | Intel H610 |
| CPU Socket | LGA 1700 |
| Supported Processors | Intel 14th / 13th / 12th Gen Core™, Pentium Gold, Celeron (refer to CPU support list) |
| Memory (RAM) | 2 × DIMM slots, DDR4, Dual Channel, up to 64 GB total |
| Supported RAM Speeds | DDR4 2133 / 2400 / 2666 / 2800 / 2933 / 3000 / 3200 MHz (Non-ECC, Unbuffered) |
| Memory Features | Supports Intel XMP; dual-channel architecture |
| Expansion Slots | 1 × PCIe 4.0 x16 (x16 mode) 1 × PCIe 3.0 x1 |
| Storage Interfaces | 2 × M.2 (Key M) slots: – M.2_1: 2242/2260/2280, PCIe 3.0 x4 – M.2_2: 2242/2260/2280, PCIe 3.0 x2 4 × SATA 6Gb/s ports |
| Onboard Graphics Output | 1 × DisplayPort (supports up to 4K@60Hz) 1 × HDMI (HDMI 2.1, up to 4K@60Hz) 1 × D-Sub (VGA) |

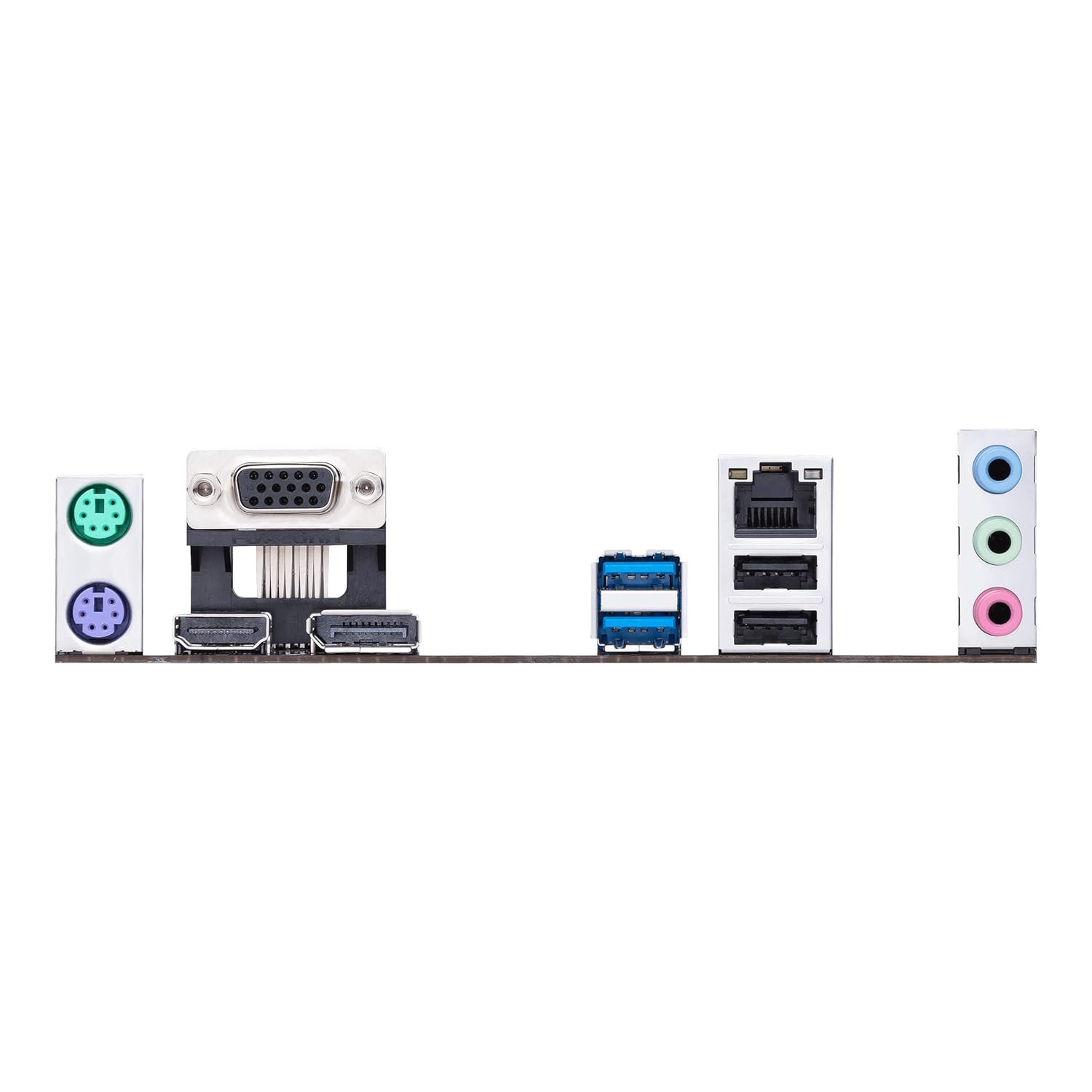

| Rear I/O Ports | 2 × USB 3.2 Gen 1 (Type-A) 2 × USB 2.0 (Type-A) 1 × PS/2 keyboard/mouse combo port (or 2 × PS/2) 3 × 3.5 mm audio jacks (Realtek 7.1 HD Audio) 1 × Gigabit Ethernet (Realtek) |
| Internal Headers / Connectors | 1 × USB 3.2 Gen 1 header (for 2 additional USB 3.2 ports) 2 × USB 2.0 headers (for up to 4 additional USB 2.0 ports) 1 × RGB header COM (serial) header Audio front panel header (AAFP) 24-pin ATX main power, 8-pin CPU power |
| Audio | Realtek 7.1-channel HD Audio codec, supports up to 24-bit/192 kHz playback; audio shielding and premium capacitors. |
| LAN | 1 × Realtek 1 Gb Ethernet port |
| BIOS / Firmware | UEFI BIOS; support for Intel features like Turbo Boost 2.0 / Turbo Boost Max 3.0 (depending on CPU) |
| Cooling / Other Features | PCH heatsink, support by fan control via “Fan Xpert 2+” for system cooling management. “5X Protection III” for hardware protection. |
| Supported OS | Windows 10, Windows 11 (typical for modern Intel boards) |
| Warranty | 2 Years |
