ASUS AMD AM5 Compatible X670E ATX Motherboard ROG STRIX X670E-A Gaming WIFI / Domestic Authorized Dealer (White)
About this item
- 16+2 power solution (rated 70A/stage)
- 6400 MT/s+, AMD EXPO, DRAM IC Profile, AEMP
- X16 slots and 2 on-board M.2 slots support PCIe Gen 5
- Easy to install GPU and SSD, easy to reset and update BIOS
- Allows high speed connection to new 6 GHz bands with low radio interference
- Dynamic clock function for Ryzen gaming and computing performance at the same time
- ASUS’s exclusive AI Cooling II function allows you to balance the heat and noise generated by your PC with a single click

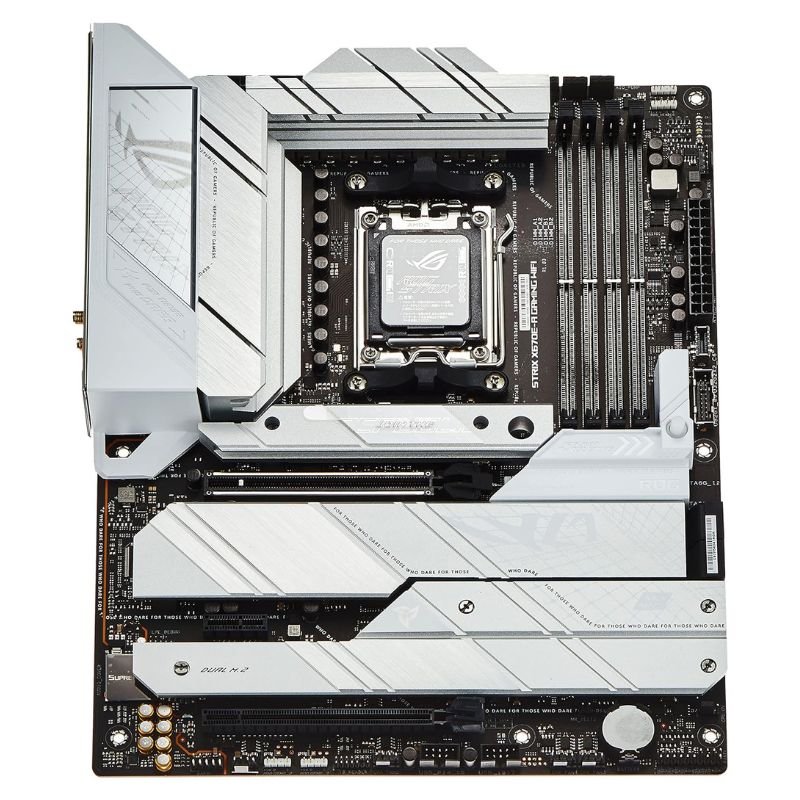

ROG Strix X670E-A Gaming WiFi – Suit up for the next gen with the stylish ROG Strix X670E-A Gaming WiFi. Its black PCB and white accents neatly contrast silver-colored heatsinks that emphasize premium power delivery for AMD Ryzen™ 7000 Series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities, and DDR5 support are woven in alongside, adding uniquely tailored performance and AM5 essentials to your gaming build.

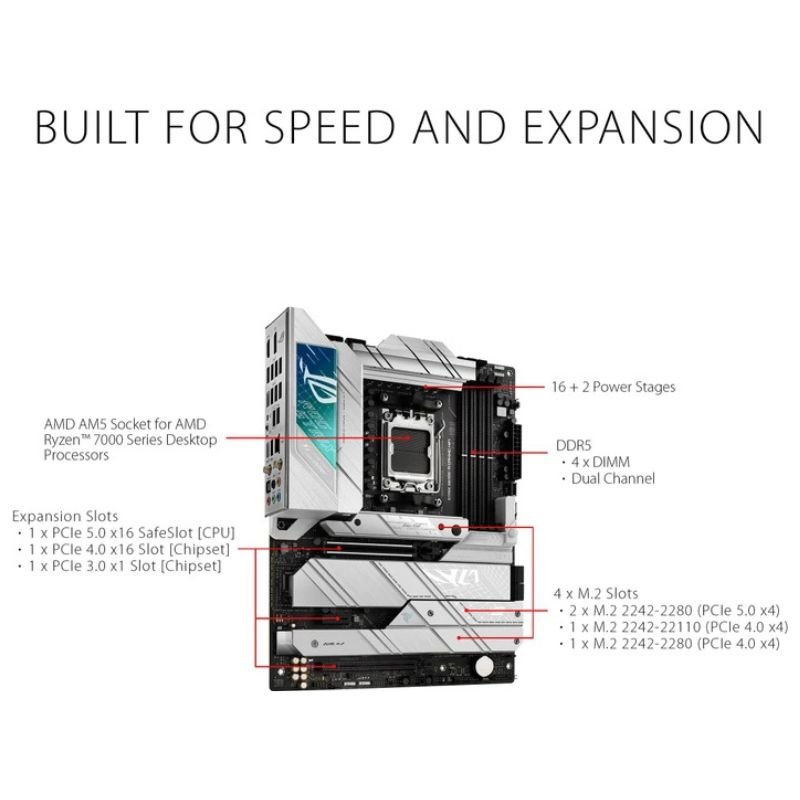

PCIe 5.0 – Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes SafeSlot to support heavy graphics cards and Q-release for easy upgrades.
WIFI 6E – Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel 2.5G Ethernet – Onboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.
Undeniably Rog Strix – The ROG Strix X670E-A Gaming WiFi will turn heads with a striking silver-white finish that contrasts with a bold Aura RGB-illuminated grid design. Parallel strakes and curved text on the VRM, M.2, and PCH heatsinks tie the whole aesthetic together with a clean, modern look.
AI COOLING II – Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Technical Details
| Brand | ASUS |
| Model Number | ROG STRIX X670E-A GAMING WIFI |
| CPU | AM5 Socket for AMD Ryzen™ 9000& 8000 & 7000 Desktop Processorss |
| Chipset | AMD X670 |
| Memory | - 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports AMD EXTended Profiles for Overclocking (EXPO™)
- OptiMem II
- Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
- Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
|
| Graphics | - 1 x DisplayPort
- 1 x HDMI® port
- *Supports max. 8K@60Hz as specified in DisplayPort 1.4.
- Supports Supports 4K@60Hz as specified in HDMI 2.1.
- VGA resolution support depends on processors’ or graphic cards’ resolution.
|
| Expansion Slots | - AMD Ryzen™ 7000 Series Desktop Processors
- 1 x PCIe 5.0/4.0/3.0 x16 slot
- AMD X670 Chipset
- 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
- 1 x PCIe 3.0 x1 slot
|
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD X670 Chipset - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
|
| Ethernet | - 1 x Intel® 2.5Gb Ethernet
- ASUS LANGuard
|
| Wireless & Bluetooth | Wi-Fi 6E- 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5/6GHz frequency band
Bluetooth v5.2 - WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
|
| USB | - Rear USB (Total 12 ports)
- 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
- 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
- 1 x USB 3.2 Gen 1 port (1 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
|
| Audio | “ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking –
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback”
Audio Features - SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
|

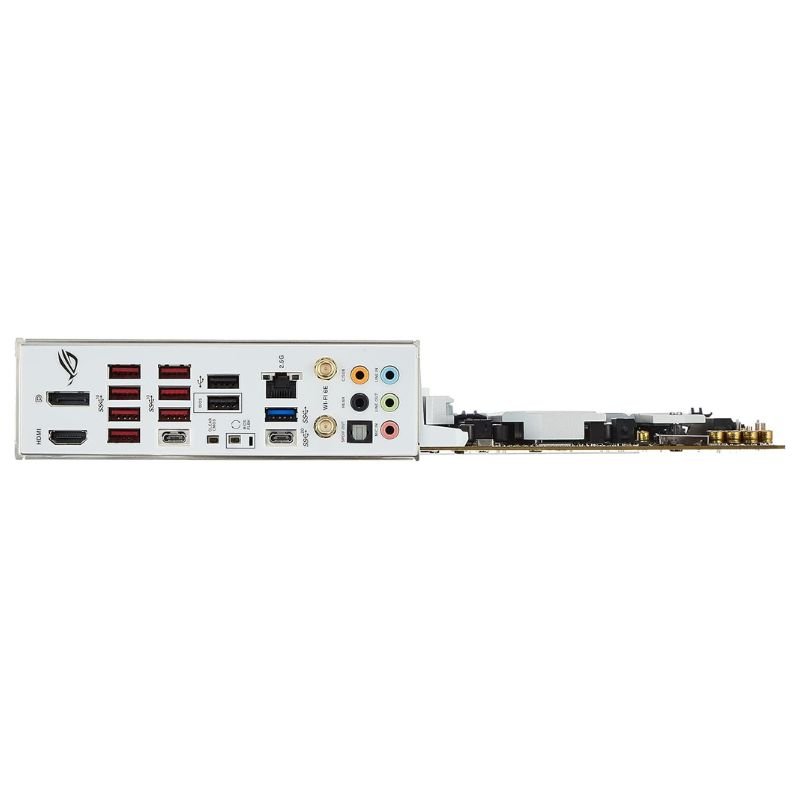

| Back Panel I/O Ports | - 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
- 8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®)
- 1 x USB 3.2 Gen 1 port (1 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x Wi-Fi Module
- 1 x Intel® I225-V 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
|
| Internal I/O Connectors | - Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 5 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V Power connector
- Storage related
- 4 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x CPU Over Voltage jumper
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thermal Sensor header
- 1 x Thunderbolt™ header
|
| Special Features | Extreme Engine Digi+- – 5K Black Metallic Capacitors
ASUS Q-Design - – M.2 Q-Latch –
- PCIe Slot Q-Release –
- Q-DIMM –
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) –
- Q-Slot
ASUS Thermal Solution - M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY - BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot –
- SafeDIMM
AURA Sync - AURA RGB header
- Addressable Gen 2 headers
|
| Software Features | ROG Exclusive Software- – GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software - Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellatio
- AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleane
- MyAsus
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- FlexKey
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

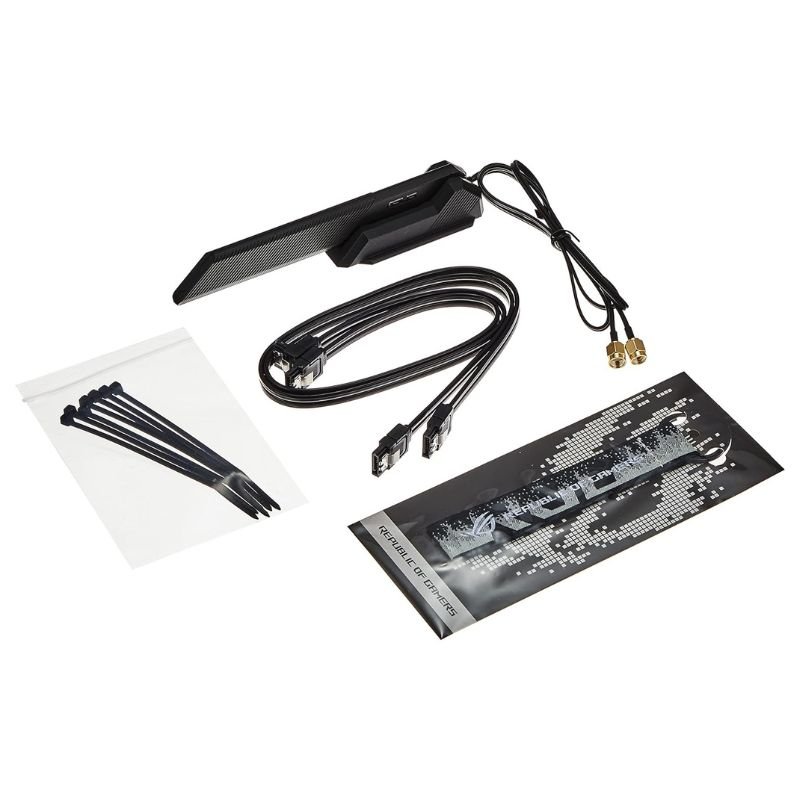

| Accessories | Cables Additional Cooling Kit Miscellaneous - 1 x ASUS Wi-Fi moving antennas
- 1 x Cable ties pack
- 1 x M.2 Q-Latch packages for M.2 backplate
- 1 x M.2 Q-Latch package
- 1 x ROG key chain
- 1 x ROG Strix sticker
- 1 x ROG Strix thank you card
- 2 x Rubber Packages for M.2
- 1 x Rubber Package for M.2 backplate
Documentation |
| Operating System | Windows® 11 64-bit |
| Form Factor | - ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| Warranty | 1 Year |
