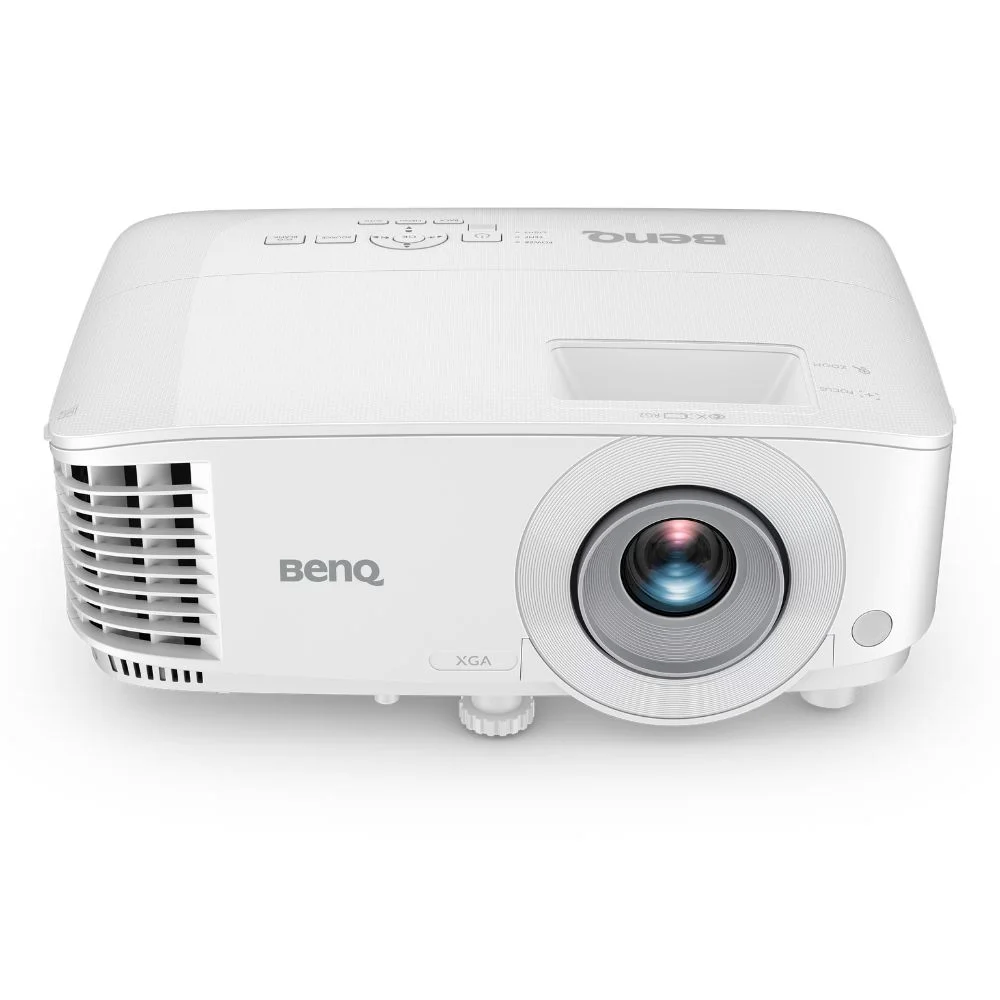

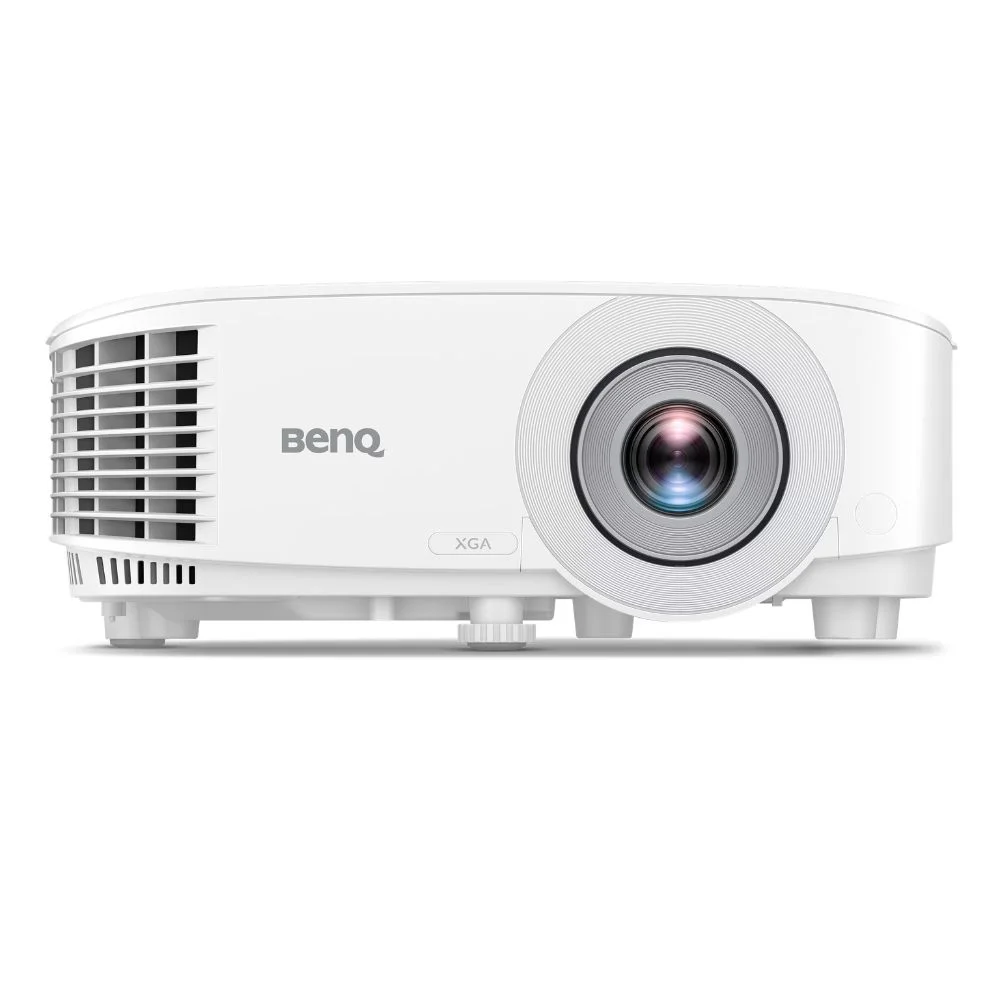

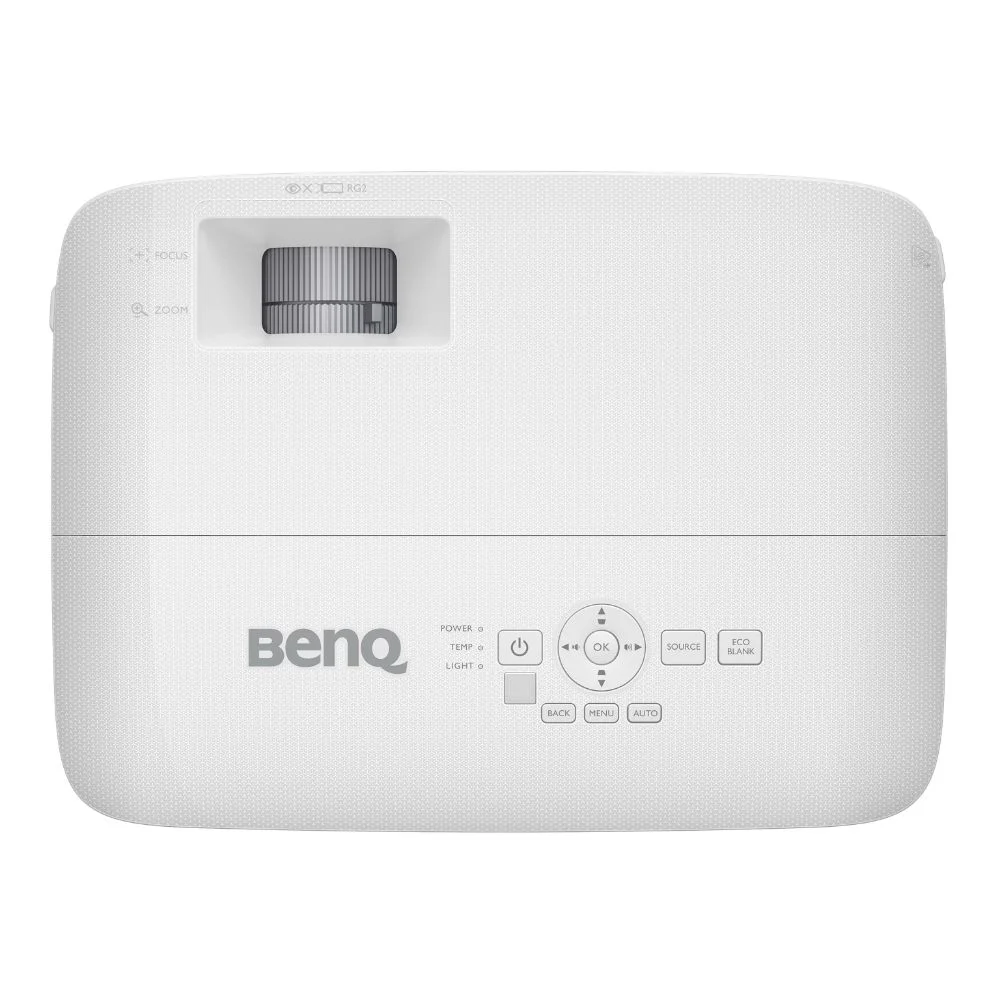

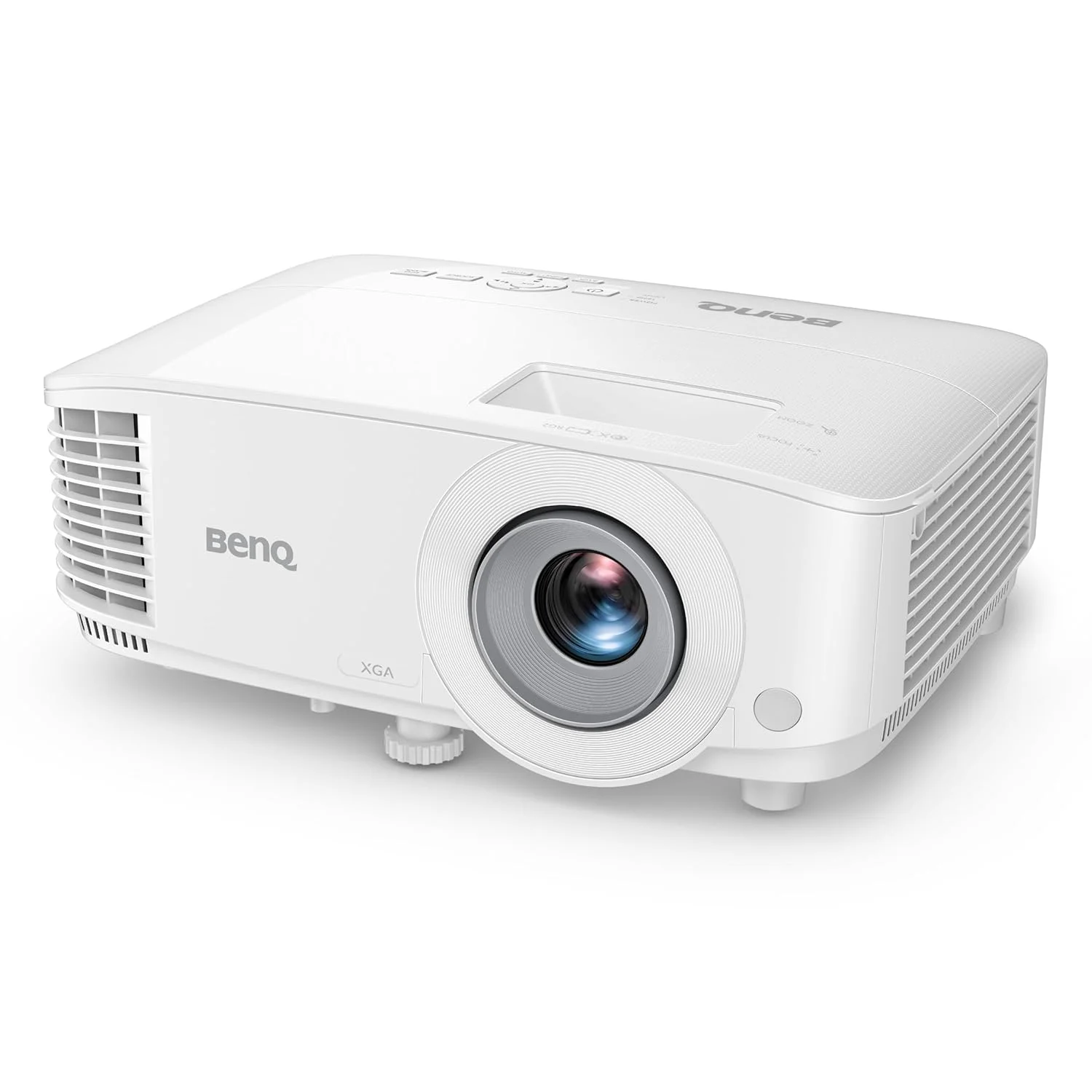

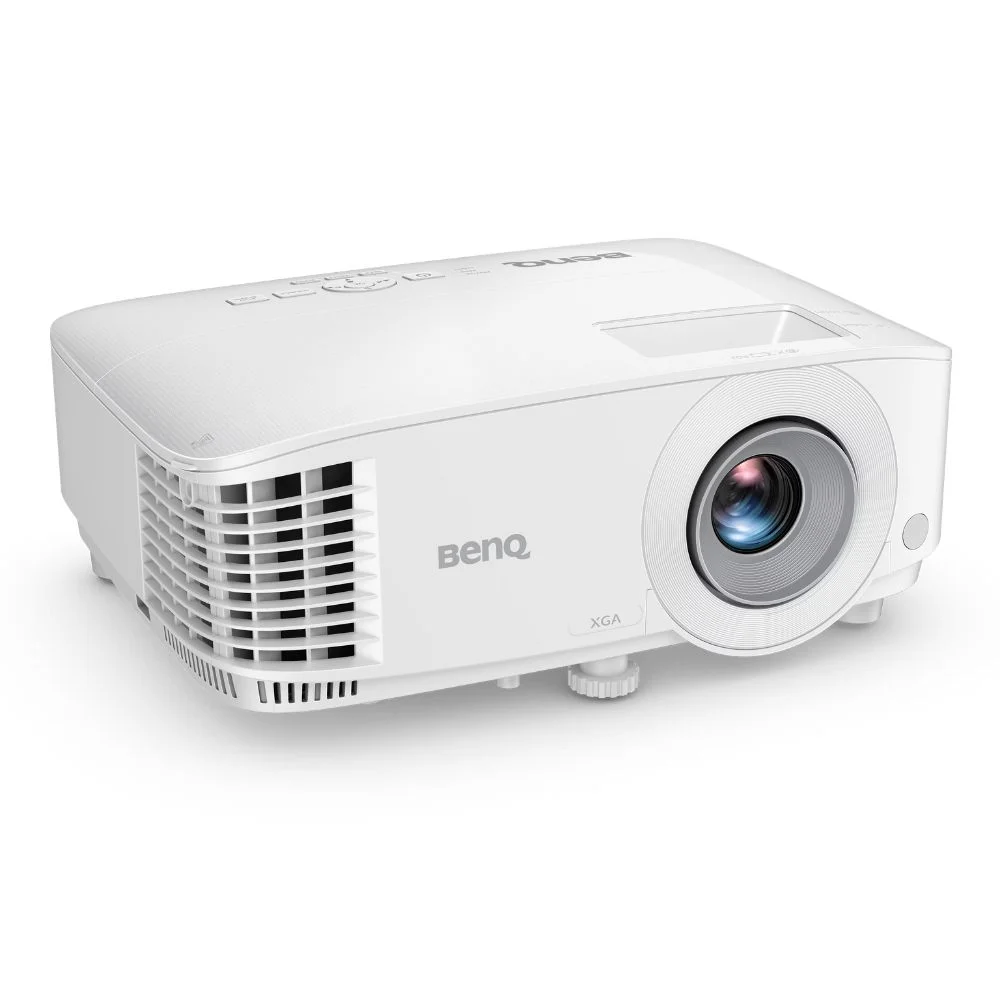

BenQ MX560C XGA Business & Education Projector, DLP, 4000 ANSI Lumens Brightness, 20000:1 High Contrast Ratio, HDMI, USB-A, Upto 15000 Hrs Extra-Long Lamp Life, 10 W Speaker, 3D Capable (White)
About this item
- 4000 ANSI Lumens Brightness – clear visuals even in well-lit rooms
- XGA (1024×768) resolution (4:3) – ideal for presentations & classrooms
- 20,000:1 high contrast ratio – sharper text and detailed images
- DLP technology – crisp, long-lasting image quality
- Up to 15,000 hours lamp life (SmartEco/LampSave modes)
- HDMI + USB-A connectivity – easy device connection & charging
- Built-in 10W speaker – no external audio needed
- 3D capable – supports 3D content playback
- Auto vertical keystone – quick and perfect image alignment
Clear Visuals with All-glass Lenses – Experience visuals with XGA clarity and 4000 ANSI lumens brightness using the BenQ MX560 projector. Its precision-crafted all-glass lenses deliver crisp, detailed images ideal for meeting rooms and classrooms.
Start Meetings Instantly – Get started in seconds with the MX560’s retractable adjustment foot and quick setup options. The vertical keystone correction ensures perfectly aligned visuals, making meetings seamless from the first click.
Effortless HDMI Connectivity – Dual HDMI ports enable flexible and reliable connections between multiple devices, allowing smooth transitions between presentations and content sources.
Enhanced Infographic Mode – BenQ’s exclusive Infographic Mode highlights fine details in charts and text, making data, images, and graphics appear sharp and easy to comprehend.
Auto Vertical Keystone – Whether placed at an angle or on an uneven surface, the MX560 automatically adjusts the projection for a flawless, squared image every time.
Smart Time-saving Features – The projector automatically powers on upon detecting an HDMI signal, helping you begin your presentation effortlessly without manual setup delays.
Energy-saving Efficiency – With its Auto Power Off function, the MX560 conserves energy by shutting down after 20 minutes of inactivity, ensuring longer life and lower power consumption.
Technical Details
| Brand | BenQ |
| Model Name | MX560C |
| Projector Type | Business & Education |
| Projection System | DLP |
| Resolution | XGA (1024 × 768) |
| Aspect Ratio | 4:3 |
| Brightness | 4000 ANSI Lumens |
| Contrast Ratio | 20,000:1 (FOFO) |
| Display Colors | 30-bit (1.07 Billion Colors) |
| Light Source | Lamp |
| Lamp Life | Normal: 6000 hrs / Eco: 10,000 hrs / SmartEco: 10,000 hrs / LampSave: 15,000 hrs |
| Optical | |
| Throw Ratio | 1.96 ~ 2.15 |
| Zoom Ratio | 1.1x |
| Lens | F/2.56 ~ 2.68, f = 22 ~ 24.1 mm |
| Projection Offset | 110% |
| Keystone Adjustment | Auto Vertical ±30° |
| Picture & Compatibility | |
| Picture Modes | 3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2 |
| Supported Resolution | VGA (640×480) to WUXGA_RB (1920×1200) |
| Horizontal Frequency | 15K ~ 102KHz |

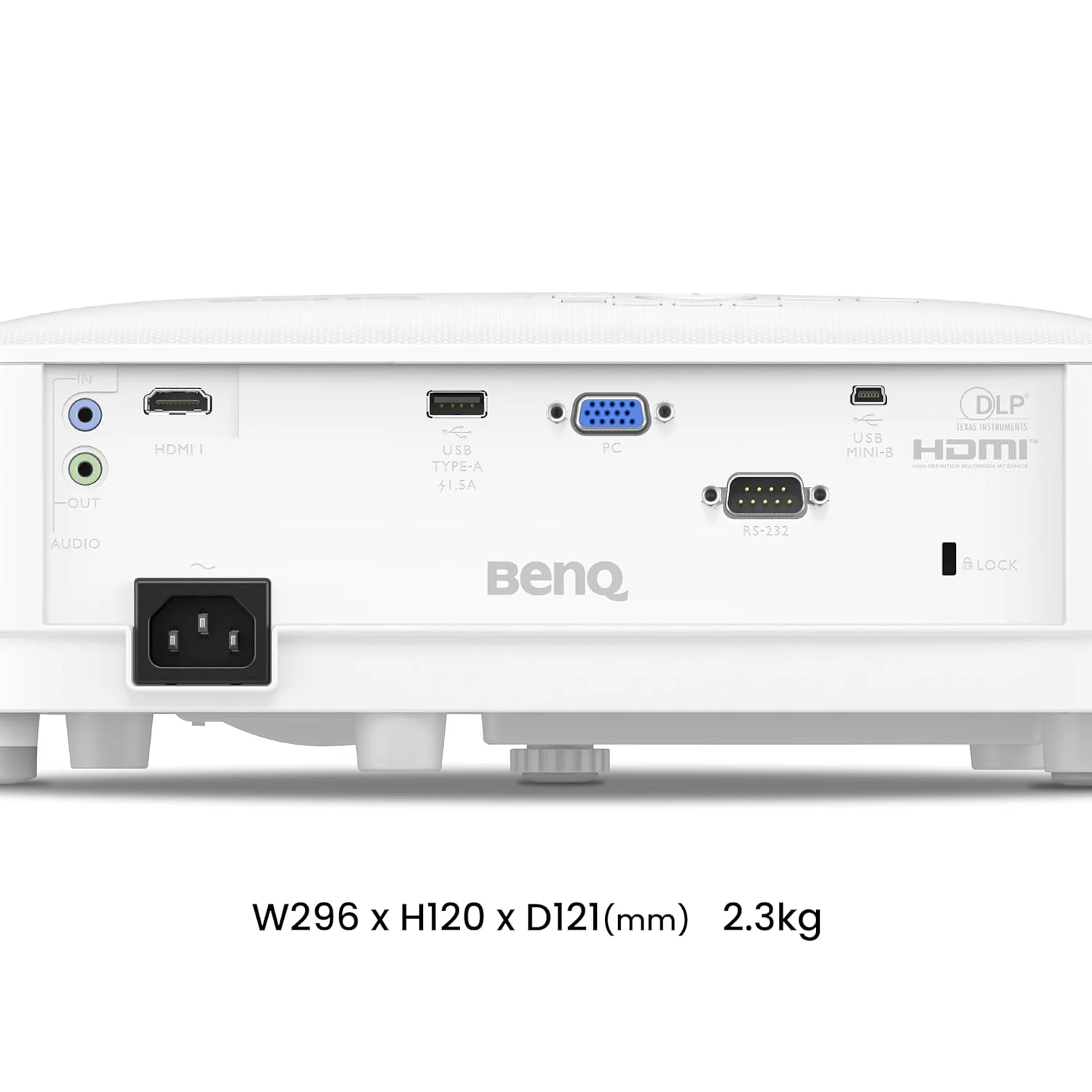

| Connectivity (I/O Interface) | |
| PC Input | 1 × D-Sub (15-pin) |
| HDMI Input | 1 × HDMI (1.4a / HDCP 1.4) |
| USB Type-A | 1 |
| USB Mini-B | 1 |
| RS232 | 1 × DB-9 |
| Audio | |
| Speaker | 10W Built-in |
| Audio Input | 3.5mm Jack ×1 |
| Audio Output | 3.5mm Jack ×1 |
| Environment & Power | |
| Operating Temperature | 0°C ~ 40°C |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 260W |
| Noise Level | 34 dB (Normal) / 29 dB (Eco) |
| Accessories | |
| Remote Control | RCX016 (with battery) |
| Power Cord | 1 × (1.8m) |
| 3D Glasses | Optional (DGD5) |
| Quick Start Guide | Yes |
| Warranty Card | Yes |
| Ceiling Mount | Optional (CM00G3) |
| Dimensions & Weight | |
| Dimensions (W×H×D) | 296 × 120 × 221 mm |
| Weight | 2.3 kg |
