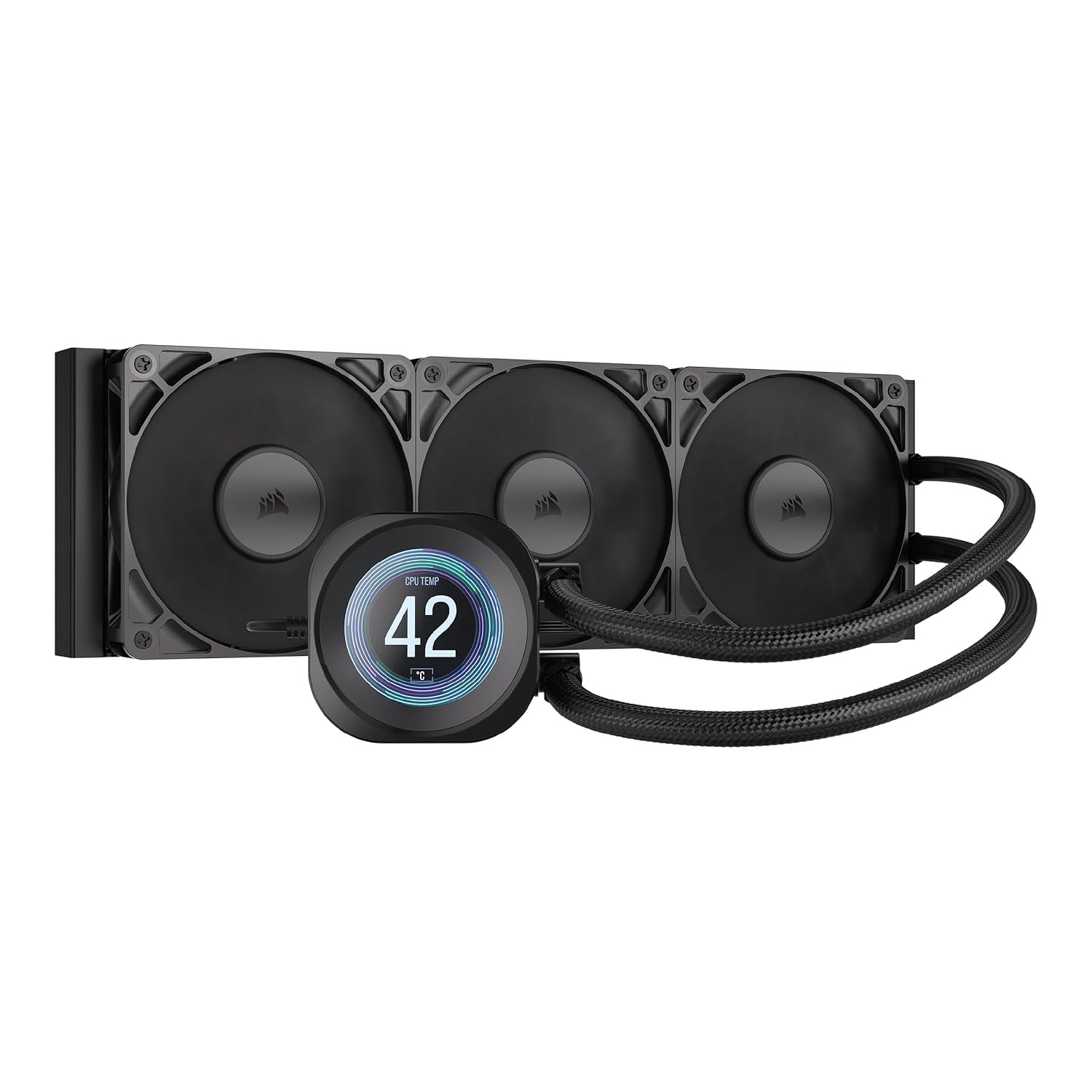

CORSAIR NAUTILUS 360 RS LCD Liquid CPU Cooler – 2.1 Inch IPS LCD Screen – RS120 Fans – 360mm Radiator – Fits Intel® LGA 1851/1700, AMD® AM5/AM4 – Simple Daisy-Chain Connections
About this item
- Efficient low-noise cooling
- Brightly lit 2.1″ IPS LCD screen
- High static pressure RS120 fans
- Precise PWM fan speed control with Zero RPM mode

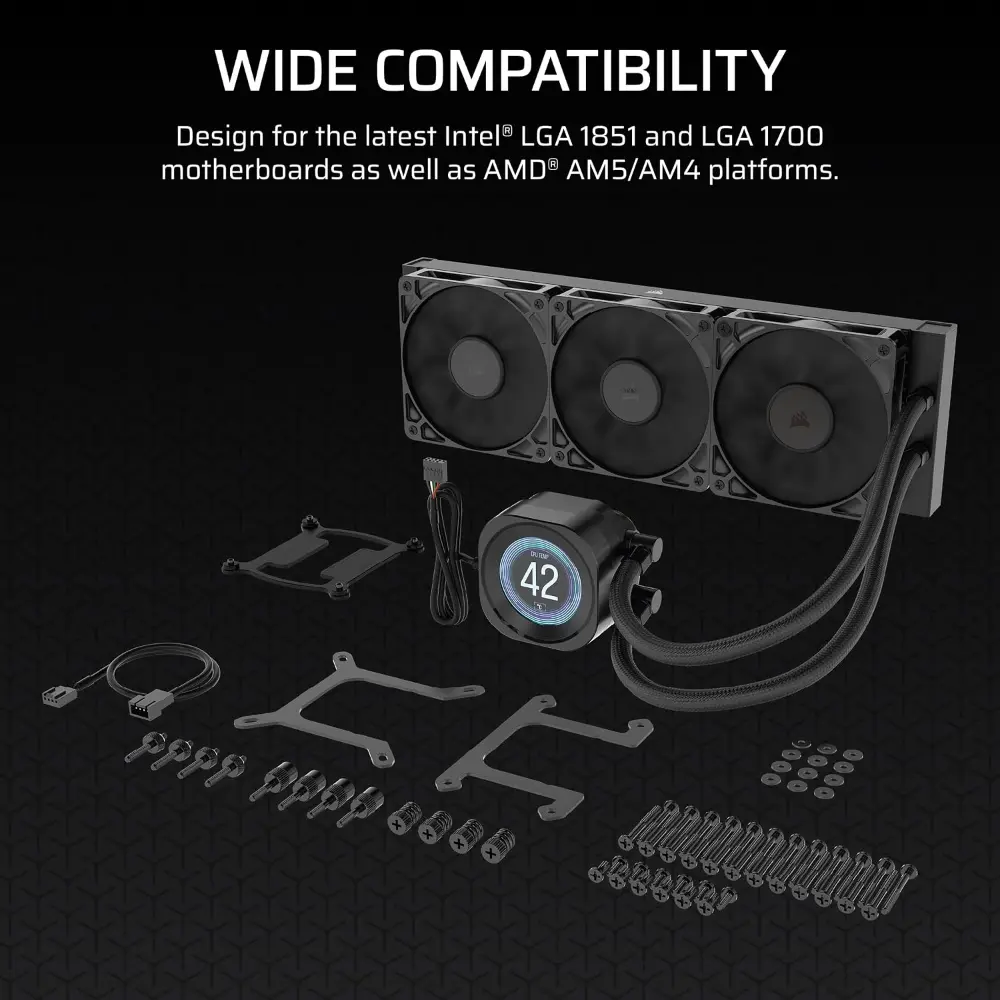

- Compatibility with Intel LGA 1851, LGA 1700, and AMD AM5, AM4

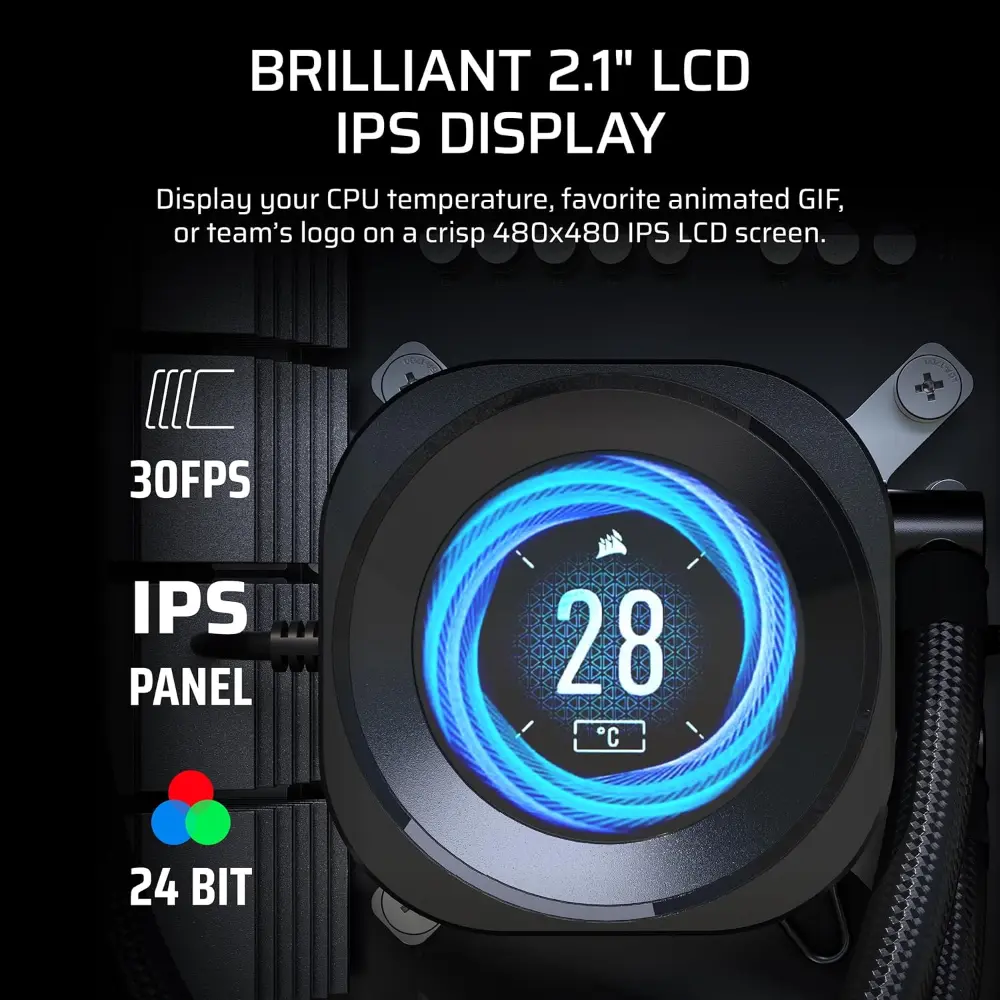

Brilliant IPS LCD Display – Showcase CPU temperature, animated GIFs, memes, or your team’s logo on a crisp 480 x 480 IPS screen at 30 FPS with an ultra-bright 600cd/m² backlight and over 16.7 million colors. iCUE Software includes full in-app GIPHY integration, giving you access to thousands of your favorite memes and GIFs.
Flowdrive Cooling Engine – Designed in-house by CORSAIR’s expert engineers, the pump is powered by a three-phase motor with a higher flow rate and even lower noise levels than its predecessors. Add to that a precision-engineered cold plate surface profile that maximizes contact with your CPU’s IHS, and you have a recipe for consistently lower temperatures.
Easy Installation – Simply connect the included cable to an available USB 2.0 (9-pin) header on your motherboard to power and control the LCD display. That’s all it takes.

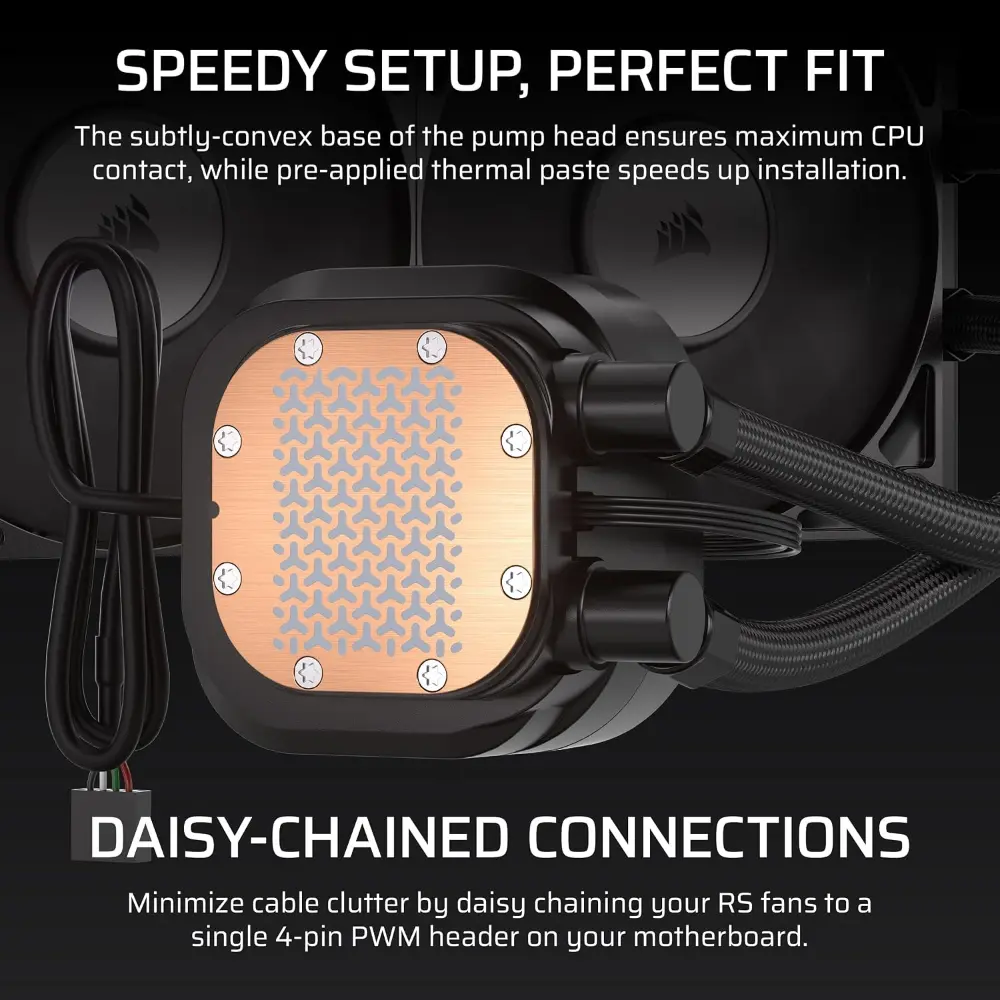

Maximum Contact – The slightly convex design ensures optimal contact with your CPU’s integrated heat spreader, with thermal paste applied in an optimized pattern to speed up installation.

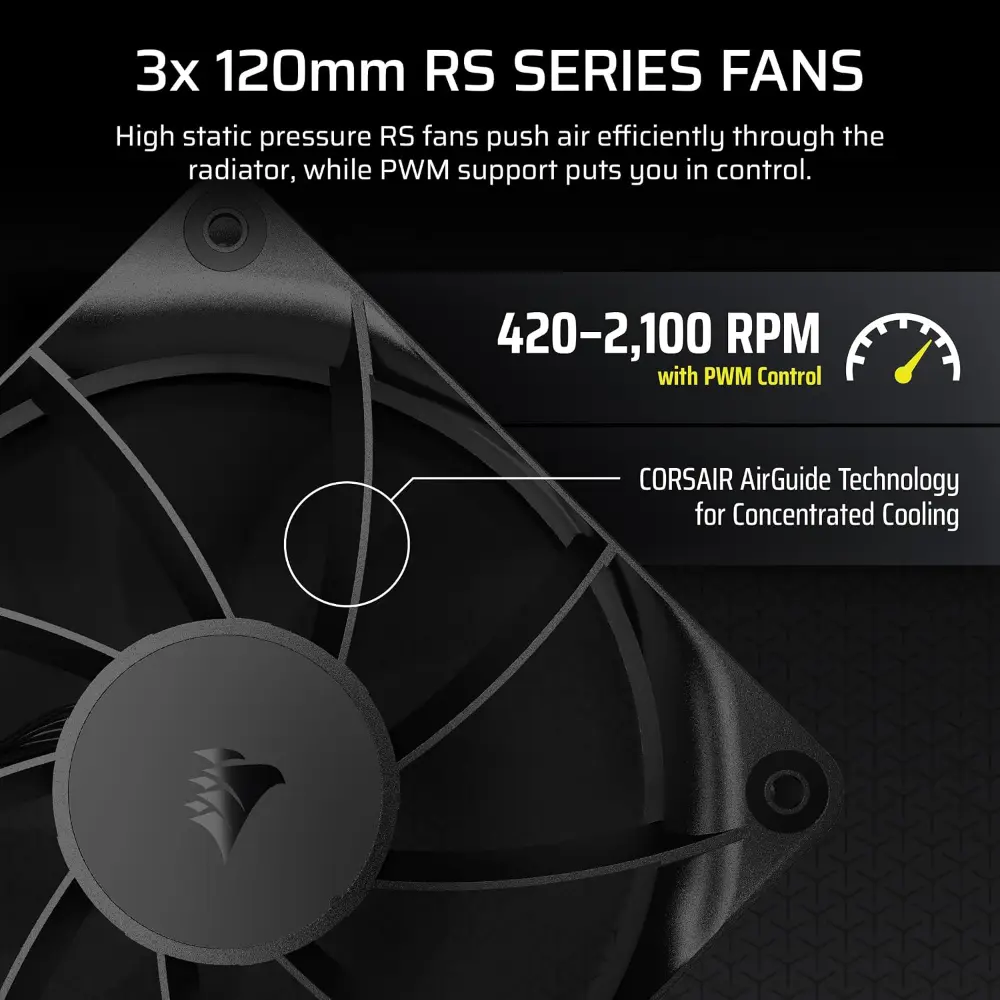

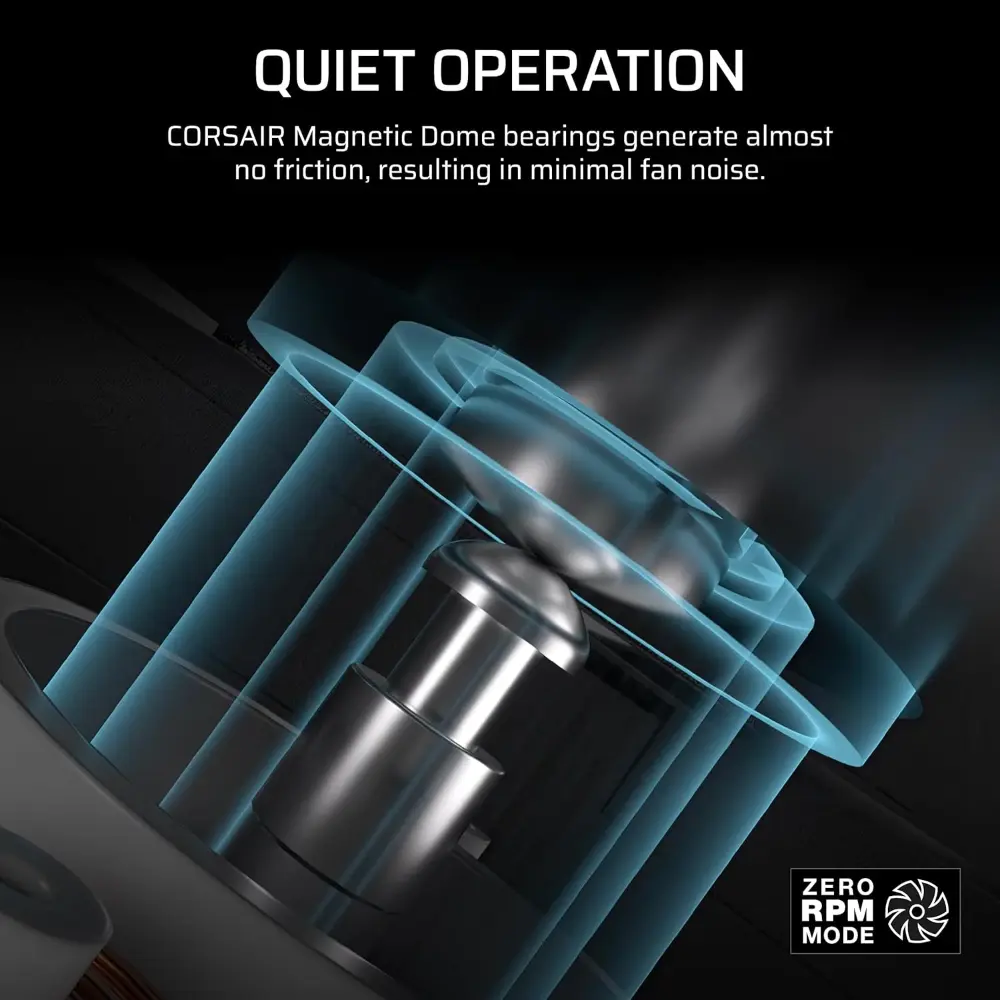

High Airflow And Static Pressure – RS Fans push air efficiently through the radiator, while CORSAIR AirGuide technology and Magnetic Dome bearings deliver strong cooling with low noise.
Daisy-chained Connections – Minimize cable-clutter in your system by daisy-chaining your RS fans to a single 4-pin PWM header on your motherboard.

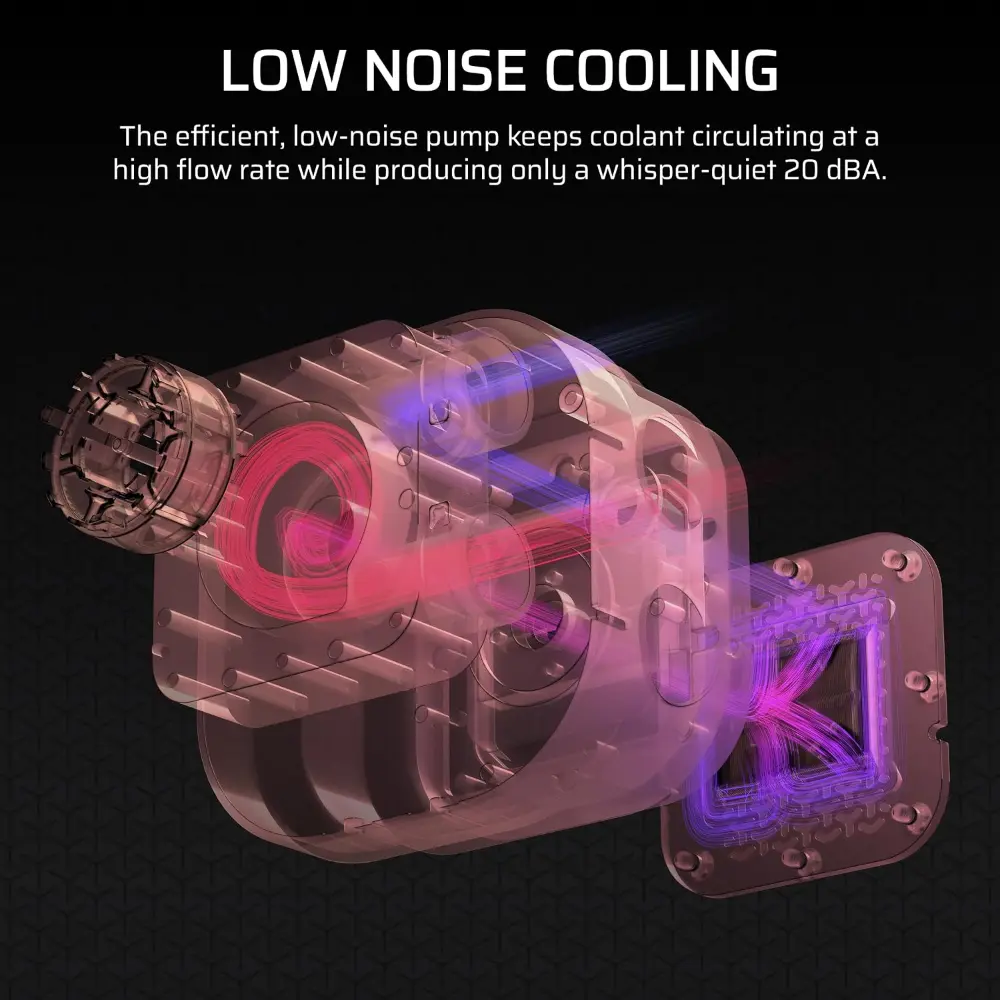

Quiet And Efficient – The efficient, low-noise pump circulates coolant with a high flow rate at a whisper-quiet 20 dBA. PWM control lets you set your fan speed up to 2,100 RPM, with support for Zero RPM mode for quiet operation.
Technical Details
| Brand | CORSAIR |
| Model Name | NAUTILUS 360 RS LCD |
| Part Number | CW-9061033-WW |
| Color | Black |
| Product Type | All-in-One (AIO) Liquid CPU Cooler |
| Radiator Size | 360mm |
| Radiator Material | Aluminum |
| Radiator Dimensions | 396 × 120 × 27 mm |
| Number of Fans | 3 |
| Fan Model | RS120 |
| Fan Speed | 420 – 2100 RPM ±10% |
| Fan Airflow | 13.3 – 72.8 CFM |
| Fan Static Pressure | 0.2 – 4.15 mm-H₂O |
| Fan Control | PWM |
| Fan Bearing | Magnetic Dome Bearing |
| Noise Level | 10 – 36 dBA |
| Pump / Cold Plate Material | Copper |
| Tubing Length | 450 mm |
| LCD Display | 2.1-inch IPS LCD |
| LCD Resolution | 480 × 480 |
| LCD Refresh Rate | 30 FPS |
| LCD Brightness | 600 cd/m² |
| LCD Color Support | Over 16.7 million colors |
| LCD Customization | CPU temperature, GIFs, images, logos, etc. |
| Software Support | CORSAIR iCUE |
| Lighting | None specified for cooler/fans |
| Daisy-Chain Support | Yes |
| Fan Connection | Single 4-pin PWM header via daisy-chain |
| Intel Socket Support | LGA 1851, LGA 1700 |
| AMD Socket Support | AM5, AM4 |
| Supported Intel CPUs | Core i9, i7, i5, i3, Pentium, Celeron |
| Supported AMD CPUs | Ryzen, A-Series |
| Product Dimensions | 396 × 120 × 27 mm |
| Weight | Approx. 2.389 kg* |
| Warranty | 5 Years |
