Dyazo NVME M2 SSD Enclosure USB 3.0 Micro B and USB 3.1 Type C Gen1 (up to 10 Gbps) | Supports M.2 NVME SSDs (2280/2260/2242/2230) Supports M & B&M Keys 2230/2242/ 2260 / 2280 SSDs, Realtek Chipset
About this item
High Speed Transfers (10Gbps): Equipped with USB 3.1 Type C Gen 1 and USB 3.0 Micro B ports, delivering blazing fast data transfer speeds up to 10Gbps. Ensures seamless access to large files, making it perfect for professionals, gamers and content creators.

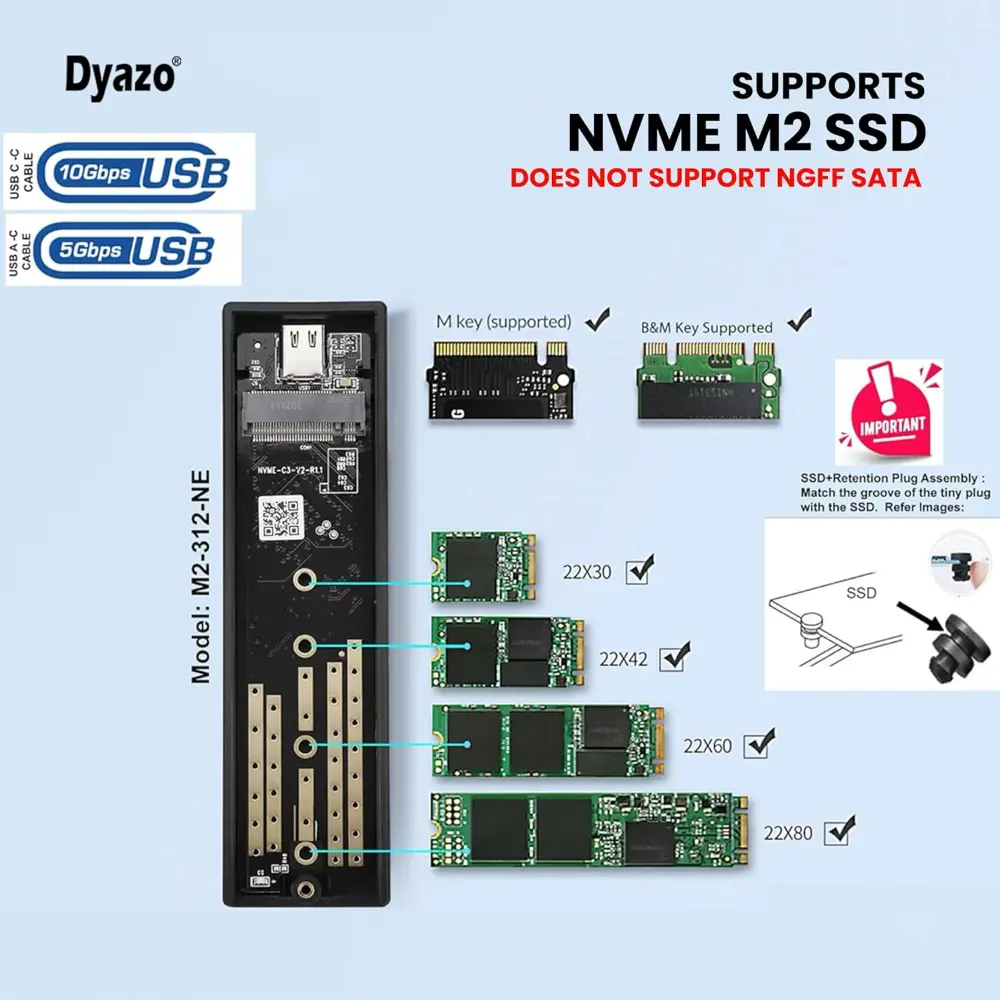

Supports Only NVME M.2 SSDs: Designed for M-key and B+M key NVME SSDs in sizes 2230, 2242, 2260 and 2280. Not compatible with NGFF SATA SSDs. Offers high performance storage expansion for laptops, desktops and other USB-enabled devices.
Cross Platform Compatibility: Works effortlessly with Windows, macOS, Android and Smart TVs. No additional drivers or software required—just plug and play for instant data access, backup and transfer across multiple devices.

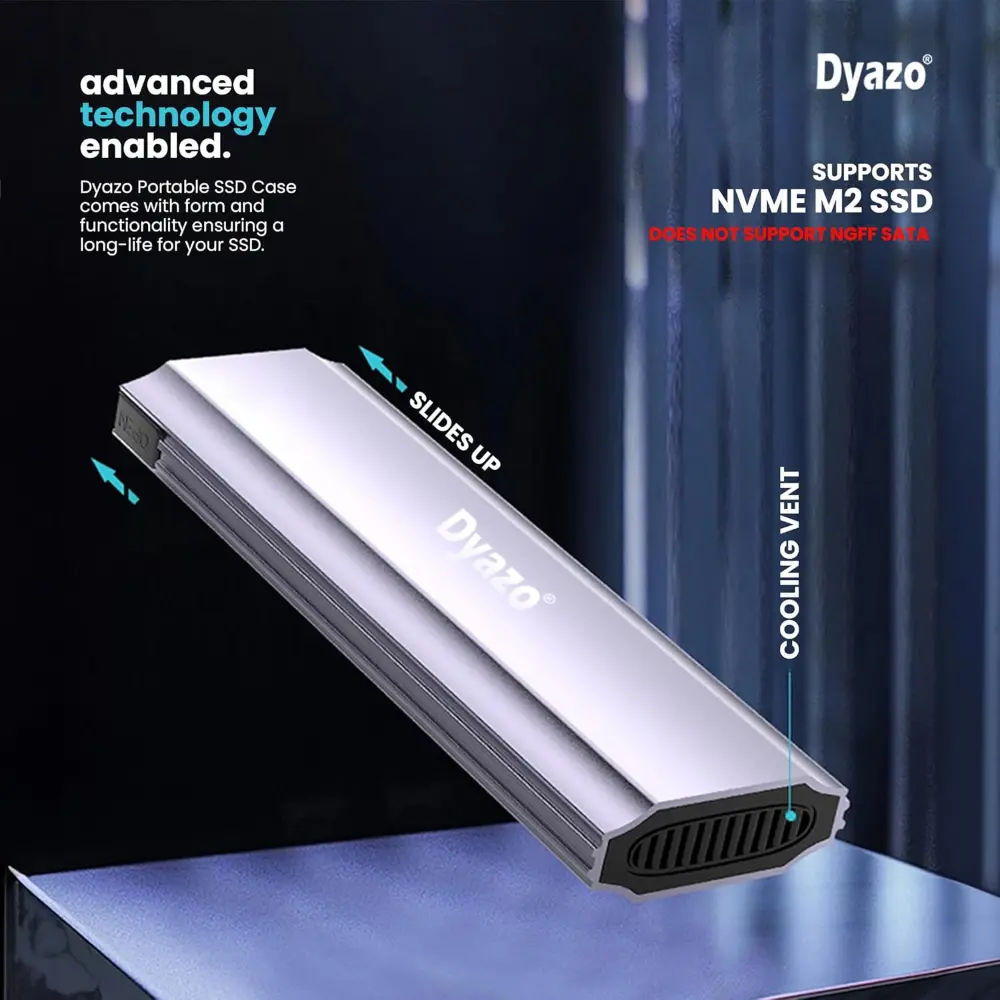

Premium Build & Efficient Cooling: Crafted from high quality aluminum for durability and enhanced heat dissipation. The enclosure features built-in cooling vents, ensuring optimal SSD performance while preventing overheating during extended use.
Tool Free, Slide to Open Design: Hassle free SSD installation with a tool free sliding mechanism—no screws or additional tools needed. Provides a secure fit for your NVME SSD while maintaining a sleek, portable design for easy storage and travel.
Technical Details
| Brand | Dyazo |
| Product Type | NVMe M.2 SSD Enclosure |
| Model Compatibility | M.2 NVMe SSD |

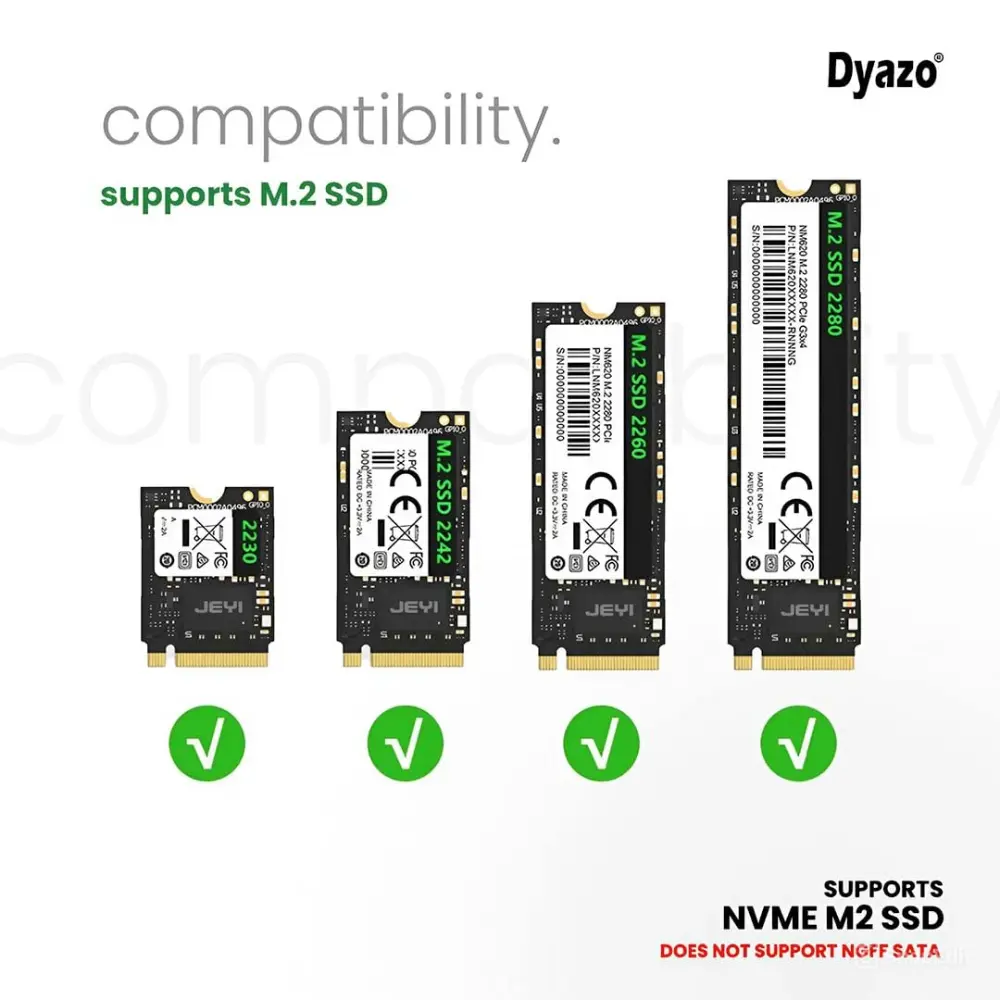

| Supported SSD Sizes | 2230 / 2242 / 2260 / 2280 |
| Key Support | M Key & B+M Key |
| Interface (Host Side) | USB 3.0 Micro-B, USB Type-C |
| USB Version | USB 3.1 Gen 1 |
| Max Data Transfer Speed | Up to 10 Gbps |
| Chipset | Realtek |
| Protocol Support | NVMe (PCIe-based SSDs) |
| Backward Compatibility | USB 3.0 / USB 2.0 |
| Power Supply | Bus-powered via USB |
| Driver Requirement | Plug & Play (No External Driver Needed) |
| Operating System Support | Windows / macOS / Linux |
| Build Type | Portable external enclosure |
| Cooling | Passive heat dissipation design |
| Usage Application | External storage, data transfer, backup, SSD reuse |
| Installation Type | Tool-free or screw-based (varies by batch) |
| LED Indicator | Yes (activity status) |
| Dimensions | 10L x 3.7W x 1.2H Centimeters |
| Weight | 90 g |
| Warranty | 6 Months |
