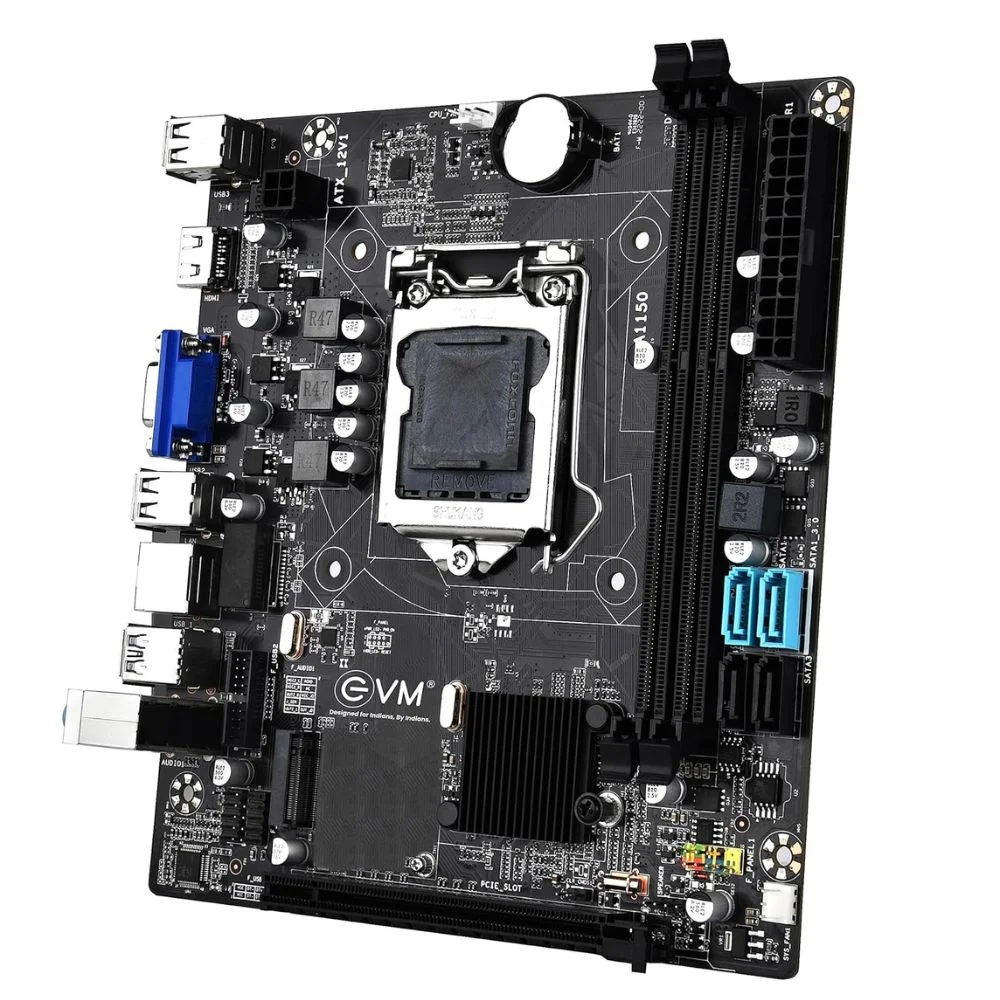

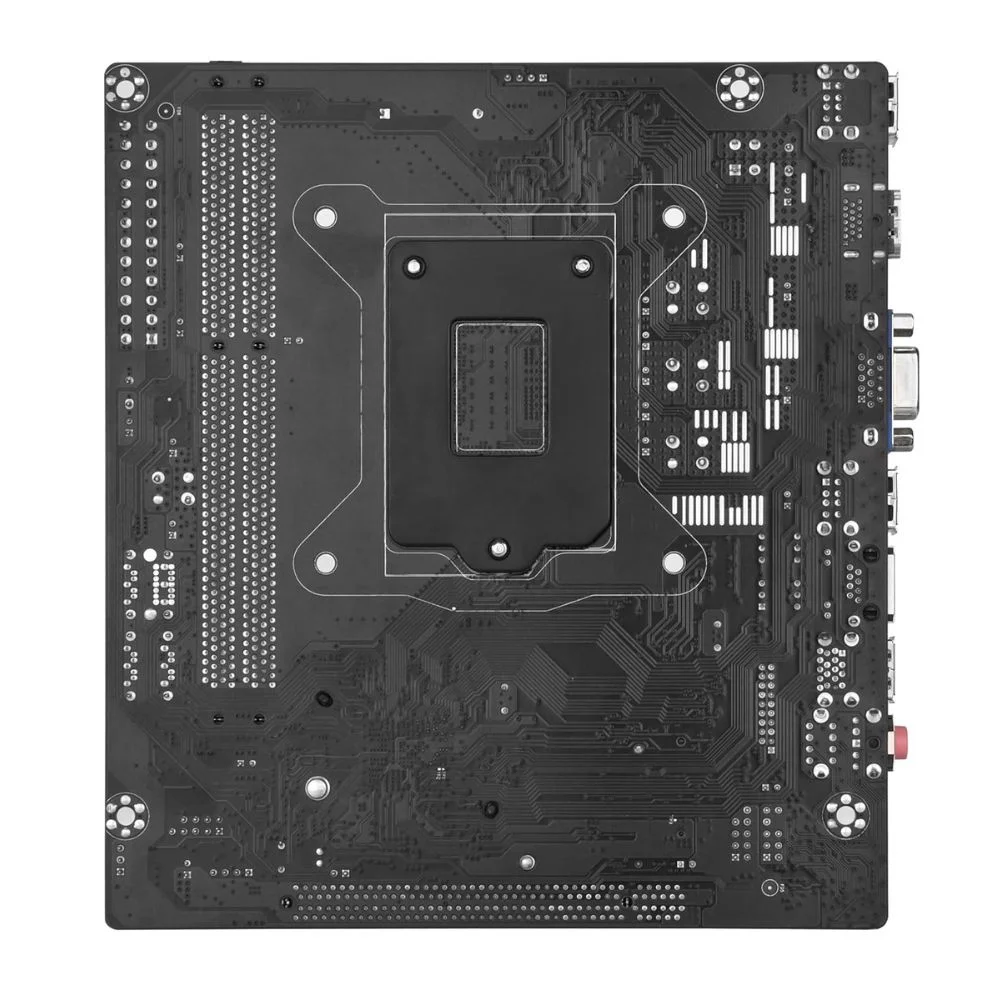

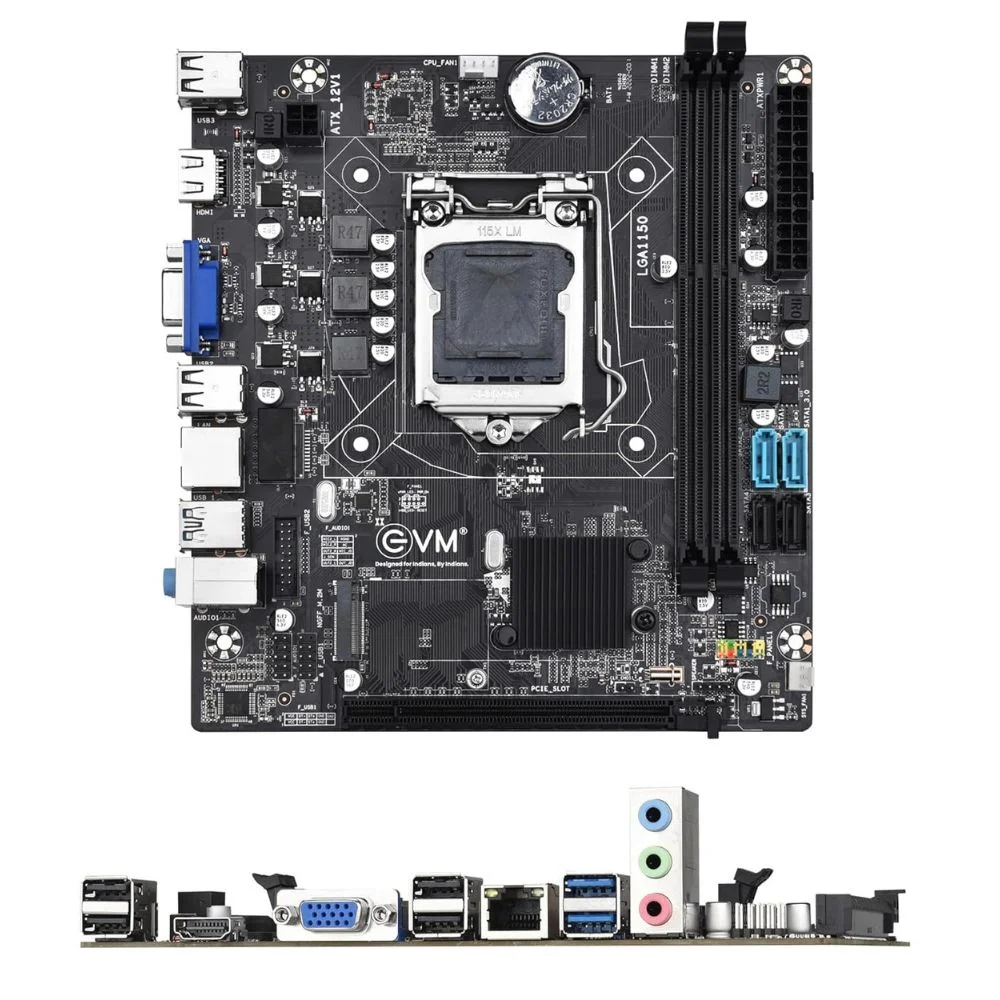

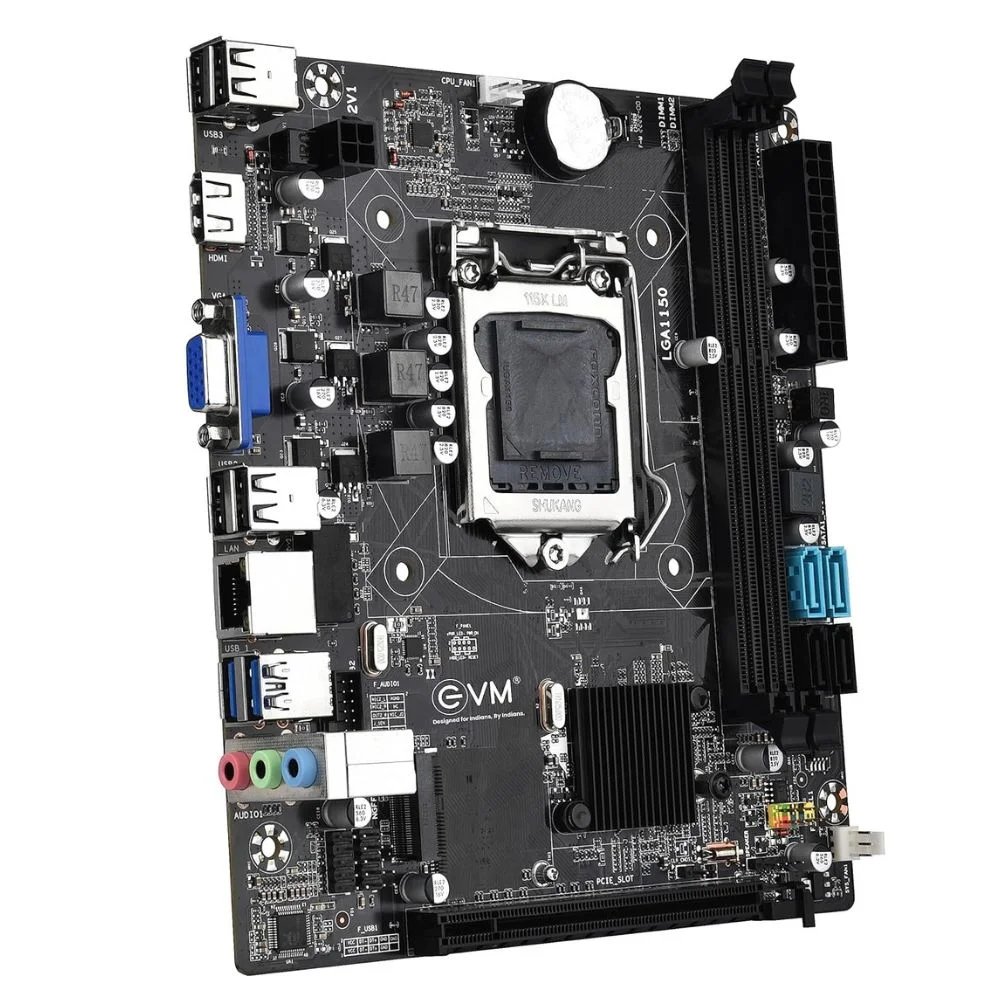

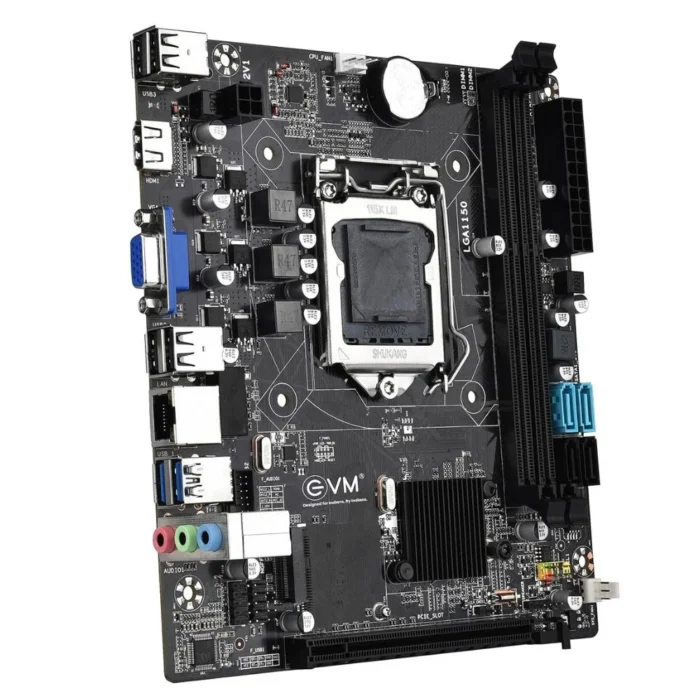

EVM H81JEL DDR3 Motherboard with NVME Slot-Socket 1150 for 4th Gen Intel Core i7/i5/i3, Supports DDR3 1066/1333 SDRAM, SATA 3Gb/s Ports, PCI Express x16 and x1 Slots (EVMH81JEL)
About this item
- Intel H81 Chipset(LGA1150)
- Intel Core i3 i5 i7 E3-V3 LGA 1150 series CPU
- Supports 2* DDR3 1066/1333/1600MHz Slots, up to 16GB
- 4 SATA 6Gb/s Ports
- 1 * PCIE x16 slot( x8 mode)
- 1*HDMI, 1*VGA, 1*RJ45, 1*Line-out, 1*Line-in, 1*MIC,
- 4*USB2.0, 2*USB3.0
- (USB 2.0/USB 3.0/etc…) 6* USB2.0 + 4* USB3.0
- With NVMe Slot
Compatibility: The EVM DDR3 Motherboard is compatible with Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron processors, ensuring a wide range of processor compatibility options.
Memory Support: The motherboard supports DDR3 1066/1333 SDRAM, providing reliable and efficient memory performance for your desktop system.
Expansion Slots: It features a PCI Express x16 slot and a PCI Express x1 slot, allowing for expansion options to add additional components such as graphics cards, sound cards, or networking cards.
Storage Connectivity: The motherboard is equipped with SATA 3Gb/s ports, providing ample connectivity options for your storage devices such as hard drives and solid-state drives.
USB Ports: It offers 8 USB 2.0 ports, with 6 located at the back panel and 2 at the mid-board, ensuring convenient connectivity for your peripherals and accessories.
Technical Details
| Brand | EVM |
| Model Name | EVM H81JEL |
| Form Factor | Micro-ATX |
| Chipset | Intel H81 Express |
| Socket Type | LGA 1150 |
| Processor Support | Intel Core i3 / i5 / i7 (4th Gen), Xeon E3 v3, Pentium, Celeron |
| Memory Type | DDR3 |
| Memory Slots | 2 × DIMM Slots |
| Max Memory Capacity | Up to 16GB |
| Memory Speed | 1066 / 1333 / 1600 MHz |
| Storage Interface | 4 × SATA (6Gb/s) |
| NVMe Support | Yes (M.2 NVMe Slot) |
| Expansion Slots | 1 × PCIe x16 (runs at x8 mode) |
| Graphics Output | 1 × HDMI, 1 × VGA |
| LAN | 1 × RJ45 Ethernet (10/100 Mbps) |
| Audio | Line-in / Line-out / Mic (3 audio jacks) |
| USB Ports (Rear + Internal) | Up to 6 × USB 2.0 + 4 × USB 3.0 |
| Integrated Graphics Support | Yes (via CPU) |
| Other Connectors | CPU Fan, System Fan, Front Audio, USB Headers |
| Warranty | 1 Year |
