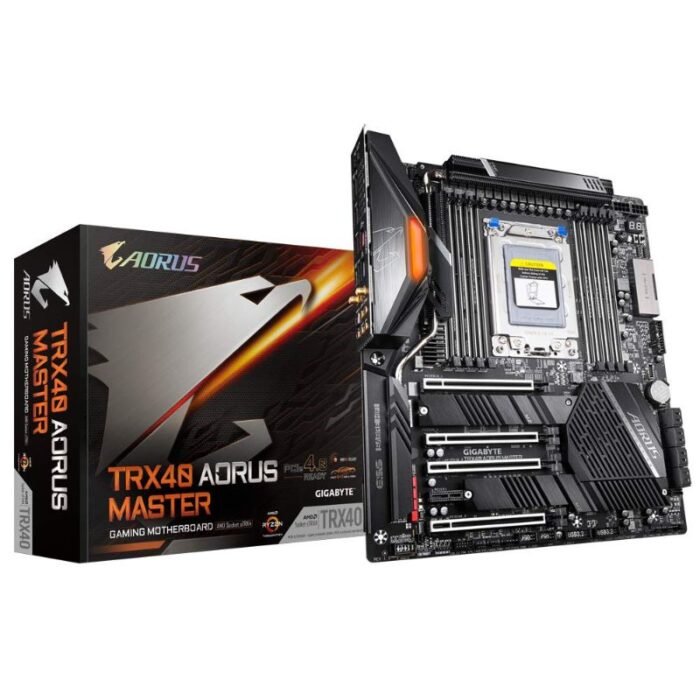

GIGABYTE TRX40 AORUS Master (Wi-Fi) Motherboard
GIGABYTE TRX40 AORUS Master Wi Fi Motherboard 6

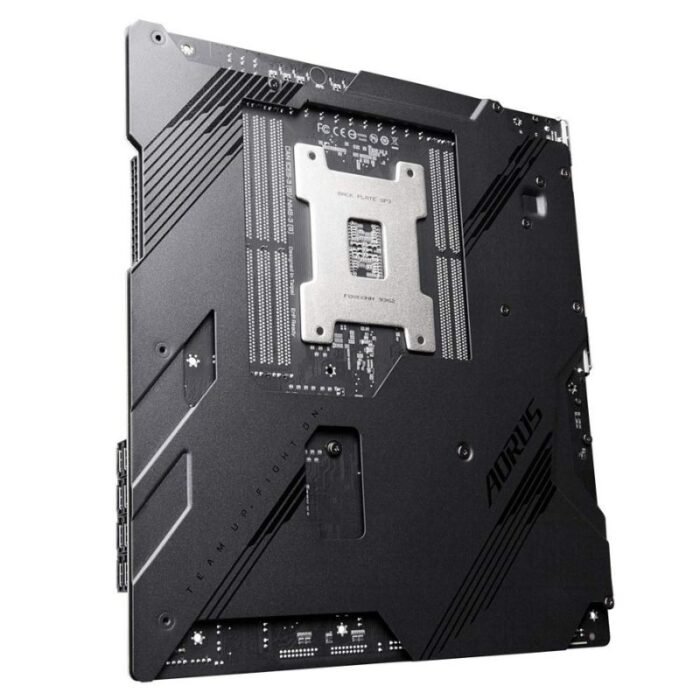

GIGABYTE TRX40 AORUS Master Wi Fi Motherboard 5
GIGABYTE TRX40 AORUS Master Wi Fi Motherboard 7
GIGABYTE TRX40 AORUS Master Wi Fi Motherboard 1
Lightbox
GIGABYTE TRX40 AORUS Master (Wi-Fi) Motherboard

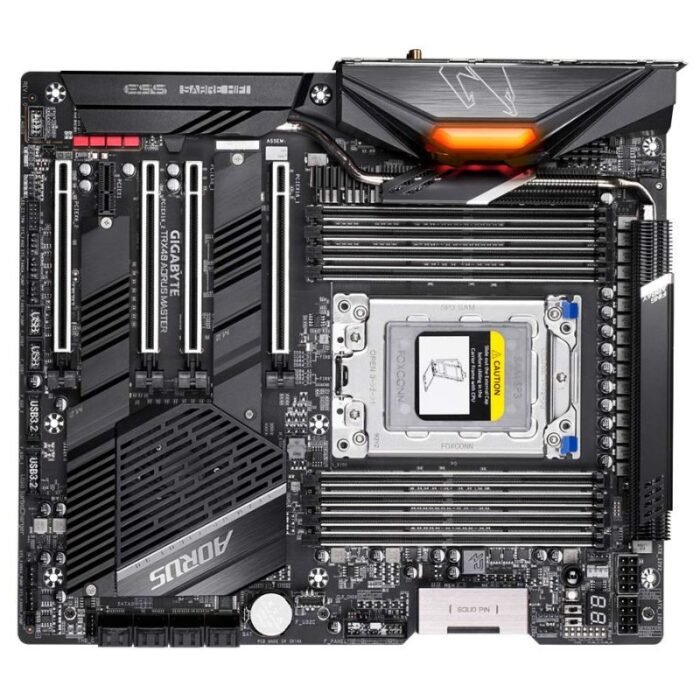

GIGABYTE TRX40 AORUS Master Wi Fi Motherboard 6
GIGABYTE TRX40 AORUS Master Wi Fi Motherboard 5

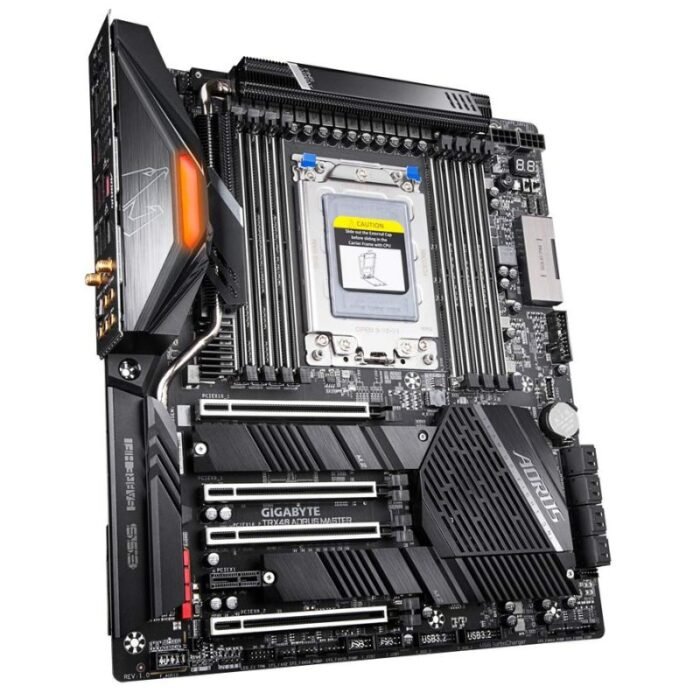

GIGABYTE TRX40 AORUS Master Wi Fi Motherboard 7
GIGABYTE TRX40 AORUS Master Wi Fi Motherboard 1

GIGABYTE TRX40 AORUS Master (Wi-Fi) Motherboard

₹34,999.00

53% Off
Hurry, Only 1 left.

Open Box Product in Good Condition, 1 Year Brand Warranty with GST Invoice.

What Is Repack Products ?
ETD Delivery:
15 May - 20 May
6 People viewing this product right now!

Service: 7 Days Replacement Policy

Note: Open Box Delivery Is Not Available

SKU: TRX40 AORUS MASTER

COD Avail with Partial Payment

if you order in COD above 5k products, you need to pay min 500/- advance payment at order confirmation time on whatsapp. Read More
Description
AMD TRX40 AORUS Master Motherboard with Direct 16+3 Phases Infineon Digital VRM, Fins-Array Heatsink, NanoCarbon Baseplate, 5GbE+1GbE LAN, 3 PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, ESS SABRE HiFi 9218 DAC, RGB FUSION 2.0

About this item

  • Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
  • Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
  • 16+3 Phases Infineon Digital VRM Solution with 70A Power Stage
  • Advanced Thermal Design with Fins-Array Heatsink, Heatpipe with Extended Heatsink and NanoCarbon Baseplate
  • AQUANTIA® 5GbE LAN and Intel® GbE LAN with cFosSpeed
  • 3 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5
  • 130dB SNR AMP-UP Audio with High-End ESS SABRE 9218 DAC, ALC1220-VB and WIMA Audio Capacitors
  • USB TurboCharger for Mobile Device Fast Charge Support
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Front & Rear USB 3.2 Gen 2 Type-C™ Header
  • Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

TRX40 AORUS MASTER reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink, Heatpipe and a thermal baseplate, to provide lower MOSFET temperatures for enthusiasts, overclockers and professional gamers. TRX40 AORUS MASTER pushes the envelope once again by featuring Full PCIe 4. 0 Design. RX40 AORUS MASTER features RGB FUSION 2. 0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish. RX40 AORUS MASTER is equipped with several audiophile level components such as ESS SABRE DAC and WIMA capacitors to provide a superb audio experience.

Technical Details

BrandGIGABYTE
Model‎TRX40 AORUS MASTER
Operating SystemSupport for Windows 10 64-bit
Form FactorE-ATX Form Factor; 30.5cm x 26.9cm
CPUAMD Socket sTRX4:

  1. Support 3rd Generation AMD Ryzen™ Threadripper™ processors

(Please refer “CPU Support List” for more information.)

ChipsetAMD TRX40
Memory
  1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
  2. Quad Channel memory architecture
  3. Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Audio
  1. 1 x Realtek® ALC4050H codec+1 x Realtek® ALC1220-VB codec (Rear audio)
  2. 1 x Realtek® ALC4050H codec+1 x ESS SABRE9218 DAC chips (Front audio)
  3. Support for DTS:X® Ultra
  4. High Definition Audio
  5. 2/4/5.1/7.1-channel
  6. Support for S/PDIF Out
LAN
  1. 1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN)
  2. 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN)
Wireless Communication moduleIntel® Wi-Fi 6 AX200

  1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.0
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
  2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
  3. 1 x PCI Express x1 slot
    (All of the PCI Express slots conform to PCI Express 4.0 standard.)
Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
Storage InterfaceIntegrated in the CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
  2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)

Integrated in the Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
  2. 8 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

USBIntegrated in the CPU:

  1. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Integrated in the Chipset:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
  4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

  1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 2 x system fan headers
  6. 4 x system fan/water cooling pump headers
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 3 x M.2 Socket 3 connectors
  10. 8 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  14. 2 x USB 3.2 Gen 1 headers
  15. 2 x USB 2.0/1.1 headers
  16. 1 x noise detection header
  17. 1 x GIGABYTE add-in card connector
  18. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  19. 1 x power button
  20. 1 x reset button
  21. 2 x BIOS switches
  22. 2 x temperature sensor headers
  23. 1 x Clear CMOS jumper
  24. Voltage Measurement Points
Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 1 x Clear CMOS button
  3. 2 x SMA antenna connectors (2T2R)
  4. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  5. 5 x USB 3.2 Gen 2 Type-A ports (red)
  6. 2 x USB 2.0/1.1 ports
  7. 2 x RJ-45 ports
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
I/O ControlleriTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  8. Noise detection
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    AutoGreen
    Cloud Station EasyTune
    Fast Boot
    Game Boost
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart Survey
    System Information Viewer
    USB Blocker
    USB TurboCharger
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
Warranty1 Year
