About this item
- Original Hikvision 8-Channel SMPS for CCTV Cameras
- Supports 8 cameras simultaneously with stable 12V DC output
- High-power 10A capacity to ensure continuous performance
- Short-circuit, overload, and over-voltage protection
- Durable metal enclosure with ventilation design
- Comes with USEWELL DC connectors for easy installation
- Plug & Play – No technical hassle, ideal for DVR/NVR CCTV setups

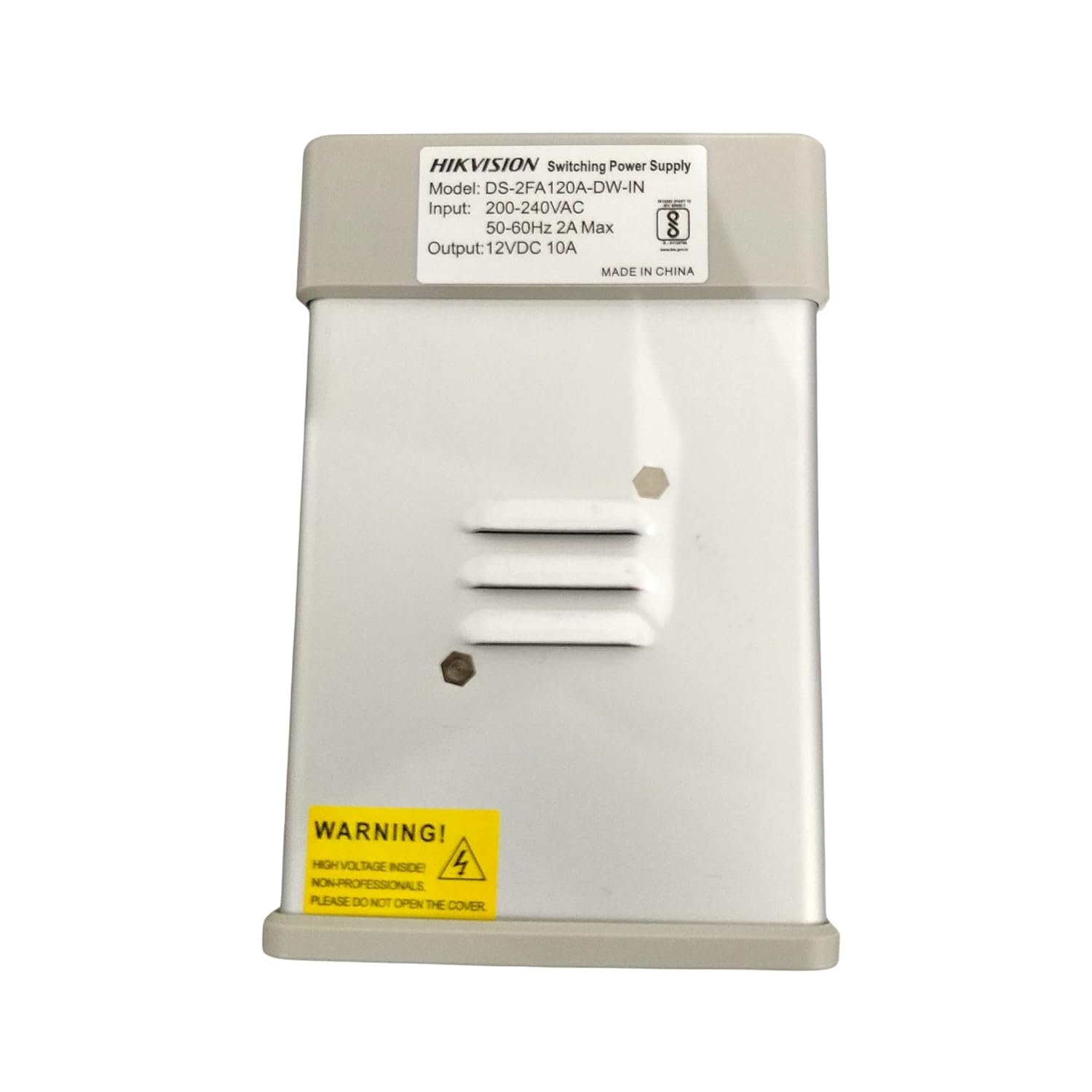

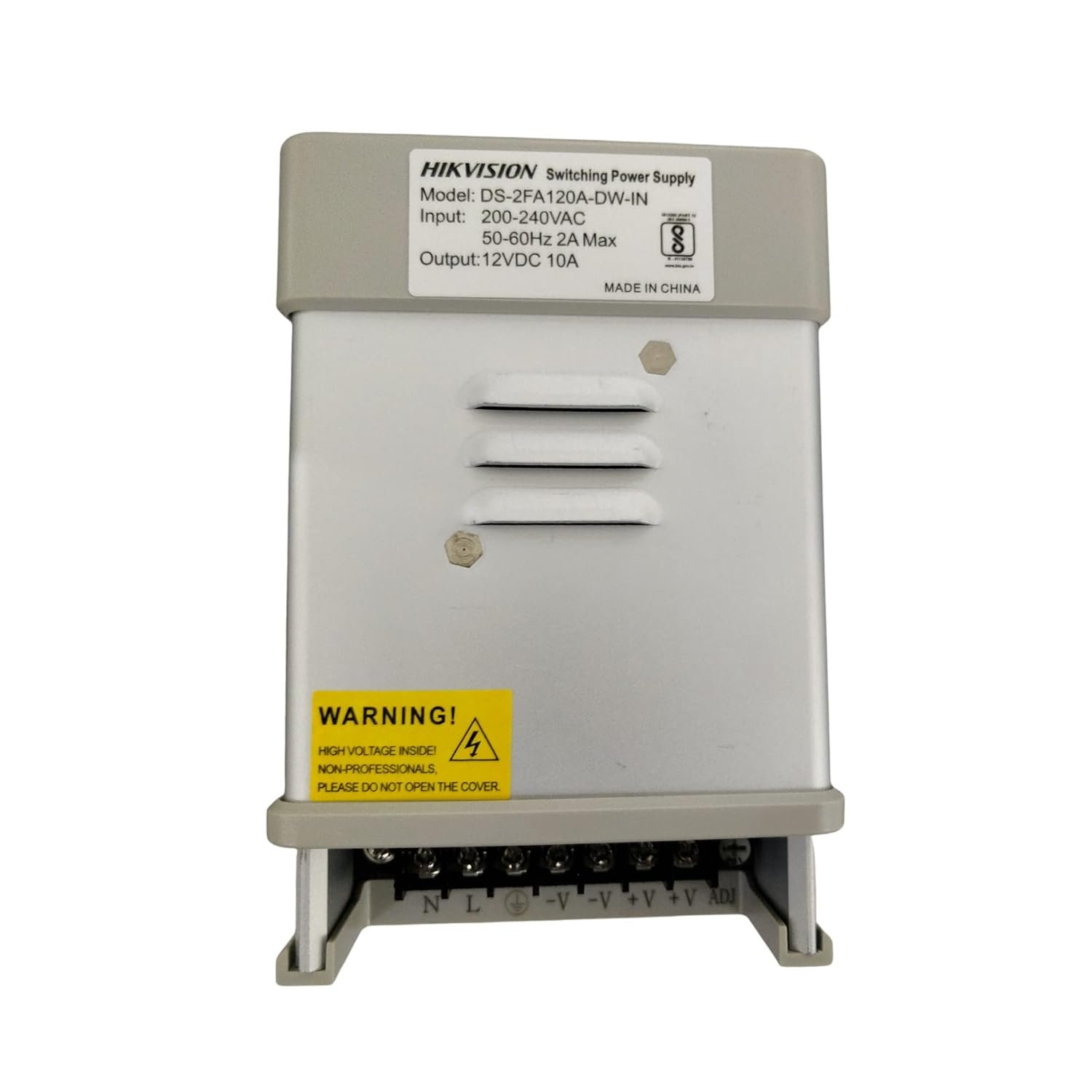

The HIKVISION DS-2FA120A-DW-IN is a reliable 8-channel switching power supply designed for CCTV surveillance systems. With a 12V output and 10A capacity, it ensures stable power for up to 8 cameras simultaneously. Built with multiple protection features, it safeguards against voltage fluctuations, short circuits, and overloads, making it ideal for long-term CCTV operations. Its compact metal body with heat-dissipating vents ensures durability and safe performance. Supplied with USEWELL DC connectors, this unit is easy to install and connect with CCTV cameras and DVR/NVR systems.
Technical Details
| Brand | Hikvision |
| Model Number | DS-2FA120A-DW-IN |
| Type | 8 Channel Switching Power Supply (SMPS) |
| Input Voltage | 100 – 240V AC, 50/60Hz |
| Output Voltage | 12V DC |
| Total Output Current | 10A |
| Channel Support | 8 Channels (up to 8 cameras) |
| Output per Channel | ~1.25A Max |
| Power Protection | Short-circuit, overload, over-voltage |
| Connector Type | DC 2.1/5.5mm (with USEWELL connectors included) |
| Enclosure Material | Metal case with vented design |
| Cooling | Air-cooled with heat dissipation vents |
| Safety Features | Over-temperature & surge protection |
| Dimensions | Approx. 200 × 150 × 50 mm (varies slightly) |
| Weight | ~1.2 kg |
| Usage | CCTV Cameras, DVR, NVR, Security Systems |
| Warranty | 6 Months |
