Name: MSI MPG B550 Gaming Plus AM4Socket ATX AMD B550 Chipset DDR4 Motherboard - MACZONE
Brand: MSI
SKU: MPG B550 GAMING PLUS
Price: 10999.00 INR
Availability: OutOfStock

MSI MPG B550 Gaming Plus AMD AM4 DDR4 m.2 USB 3.2 Gen 2 HDMI ATX Motherboard AMD Ryzen 5000 Series Desktop Processors

About this item

Powered by 3rd generation AMD Ryzen 9, Ryzen7, Ryzen 5 AM4 to maximize connectivity and speed with dual M.2, PCIe 4.0, USB 3.2 Gen2 and up to 128GB of DDR4 (4400MHz)
With 3rd Gen Ryzen processors, this motherboard featurs the latest Lightning Gen 4 solution on both PCI-E and M.2 slot, which allow for faster data transfer on graphics cards, storage devices and networking devices.
Mystic Light provides a complete function to control the RGB light all around the system. It supports both RGB and Rainbow LED strip, and 16.8 million colors / 29 effects controlled in one click.
Audio Boost which rewards your ears with studio grade sound quality for the most immersive gaming experience.
Enhanced Thermal Solution includes extended heatsink, 7W/mK level thermal & choke pad with 2oz thickened copper PCB to ensure best performance for gamers.
Pre-installed I/O Shielding provides better EMI protection and more convenience for installation.

Lightning Gen 4 Solution – The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

Enhanced Thermal Solution – Higher performance generates more heat. Thermal solution is very important to B550 chipset which featured latest Gen4 bandwidth. MSI motherboards featured extended heatsink, 7W/mK level thermal & choke pad, 2oz thickened copper and M.2 Shield Frozr to provide best performance for enthusiast gamers and prosumers.

USB Type-C Ready In Both Front Case Panel and Rear IO – Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

Core Boost – Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing.

Pre-installed Io Shielding – Featuring the pre-installed IO shielding, makes your installation process easier and safer. The patent design protect your IO ports also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

Customize Your Gaming Rig – Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.

Technical Details

Brand	MSI
Model Name	MPG B550 GAMING PLUS
Part Number	911-7C56-075
CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Expansion Slot	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots The supported specification depends on installed processor. When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.
Multi-GPU	Supports 2-Way AMD CrossFire Technology
Onboard Graphics	1x HDMI port, supports a maximum resolution of 4096×2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz Maximum shared memory of 16 GB Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage	AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0×4 Supports 2242/ 2260/ 2280 storage devices The supported specification depends on installed processor.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek 8111H Gigabit LAN controller
LED Features	1x EZ LED Control switch 4x EZ Debug LED
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper

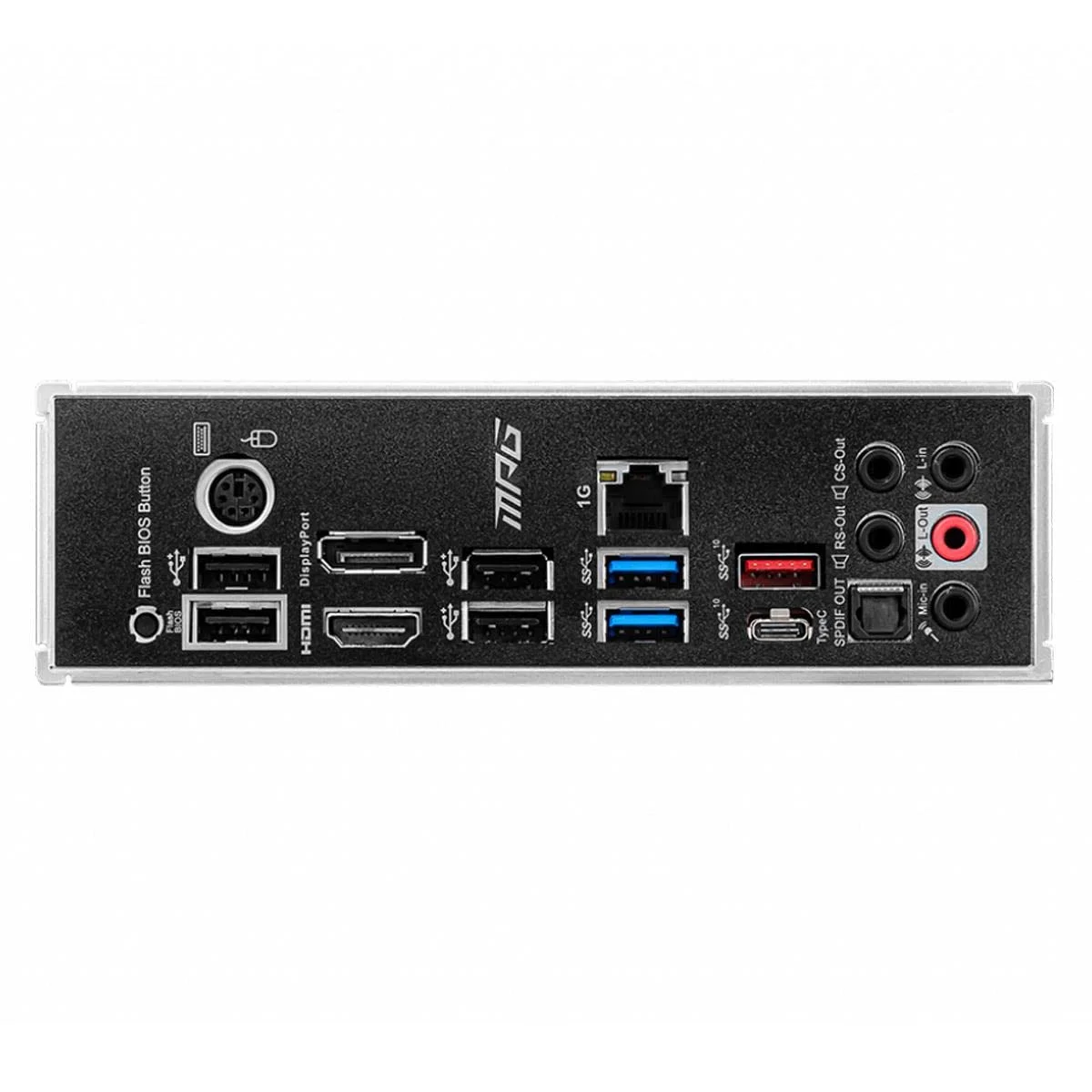

Back panel ports	PS/2 Combo Port DisplayPort LAN Port USB 3.2 Gen 2 10Gbps (Type-A) HD Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Optical S/PDIF OUT
Dimensions	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting	9 mounting holes
I/O Controller	NUVOTON NCT6687-R Controller Chip
Hardware Monitor	CPU/ System/ Chipset temperature detection CPU/ System/ Pump fan speed detection CPU/ System/ Pump fan speed control
Warranty	1 Year
