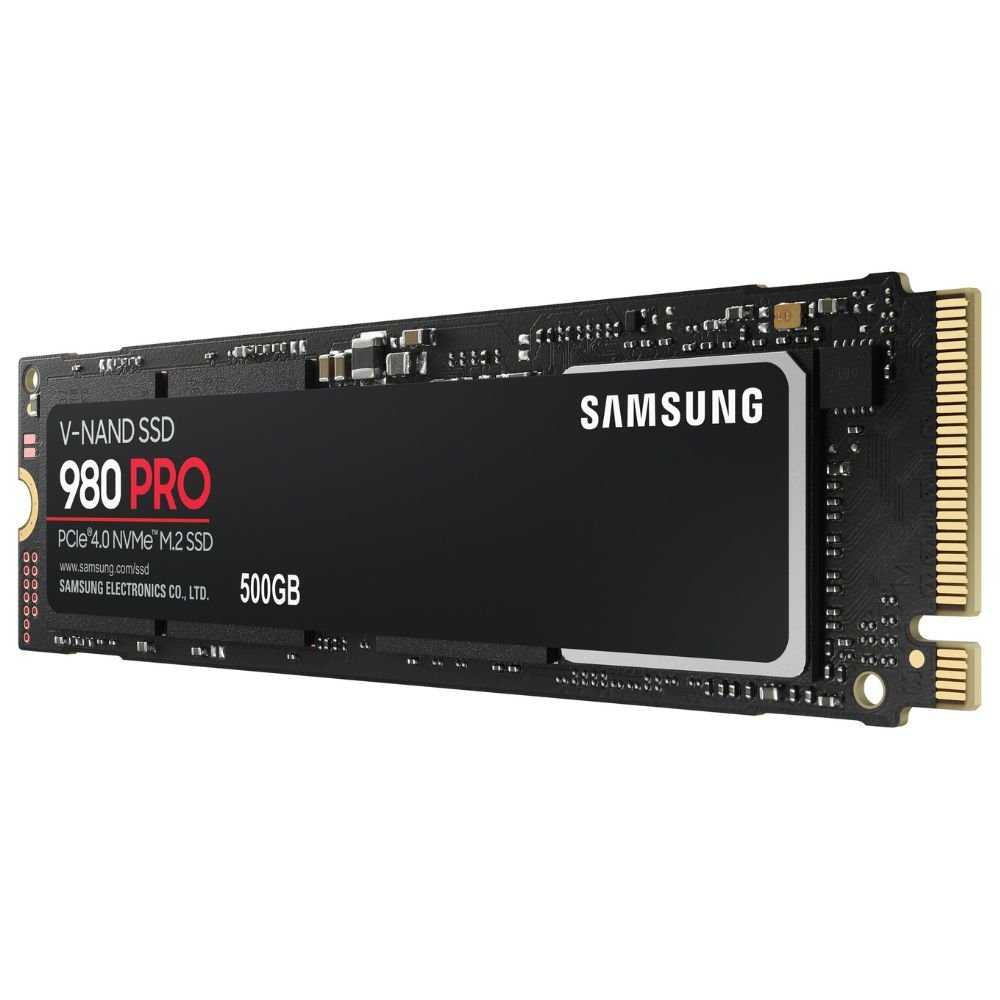

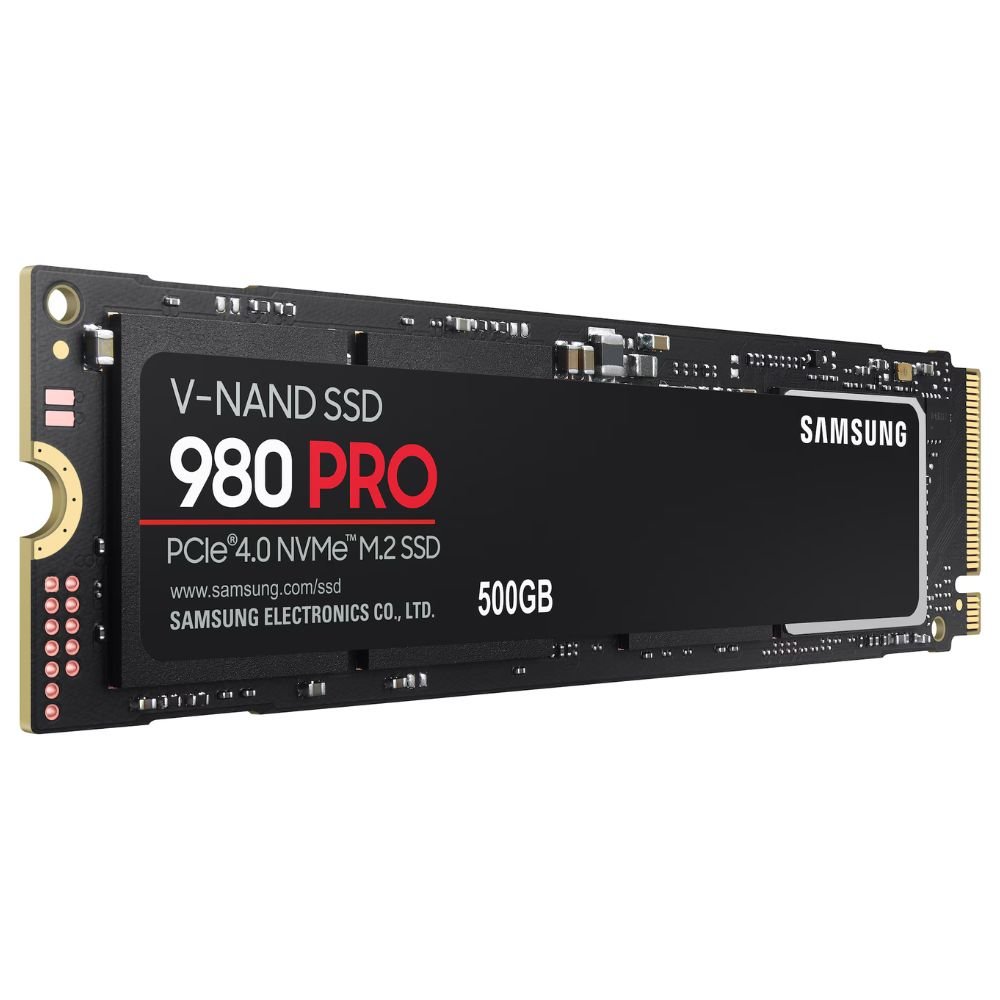

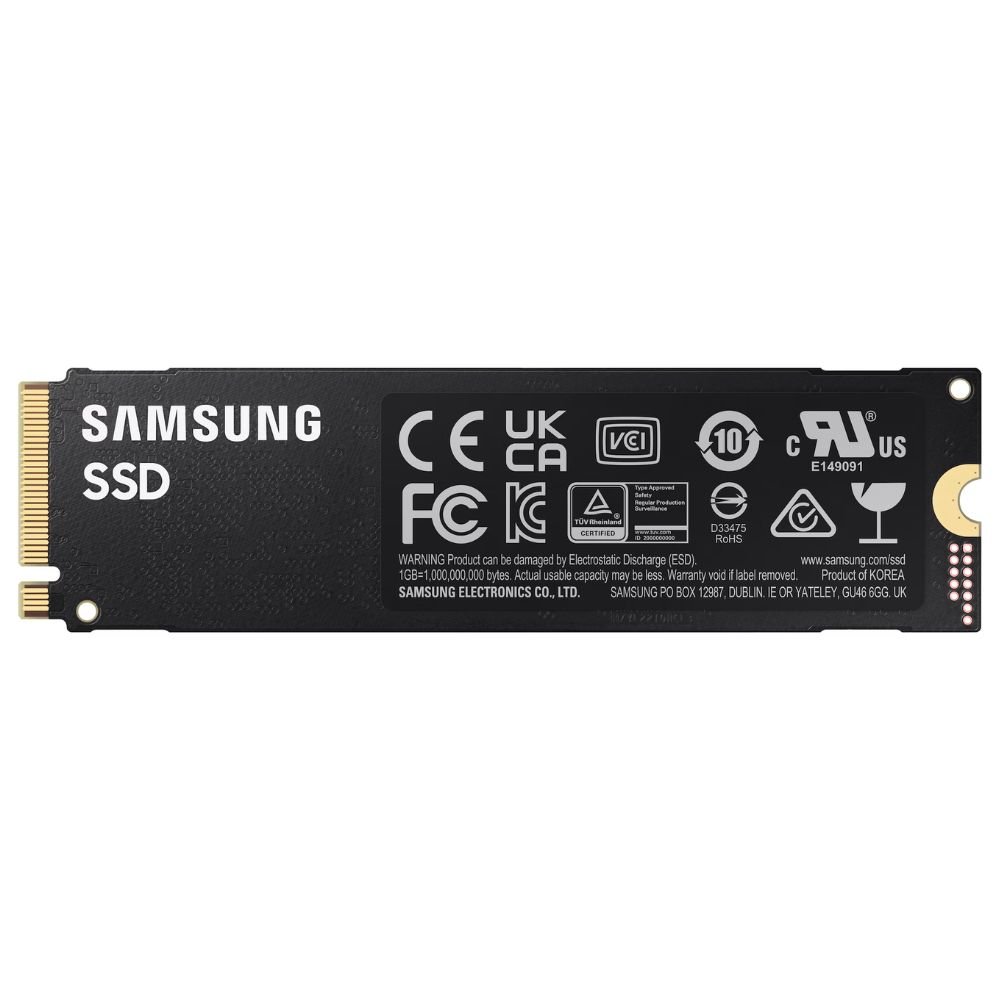

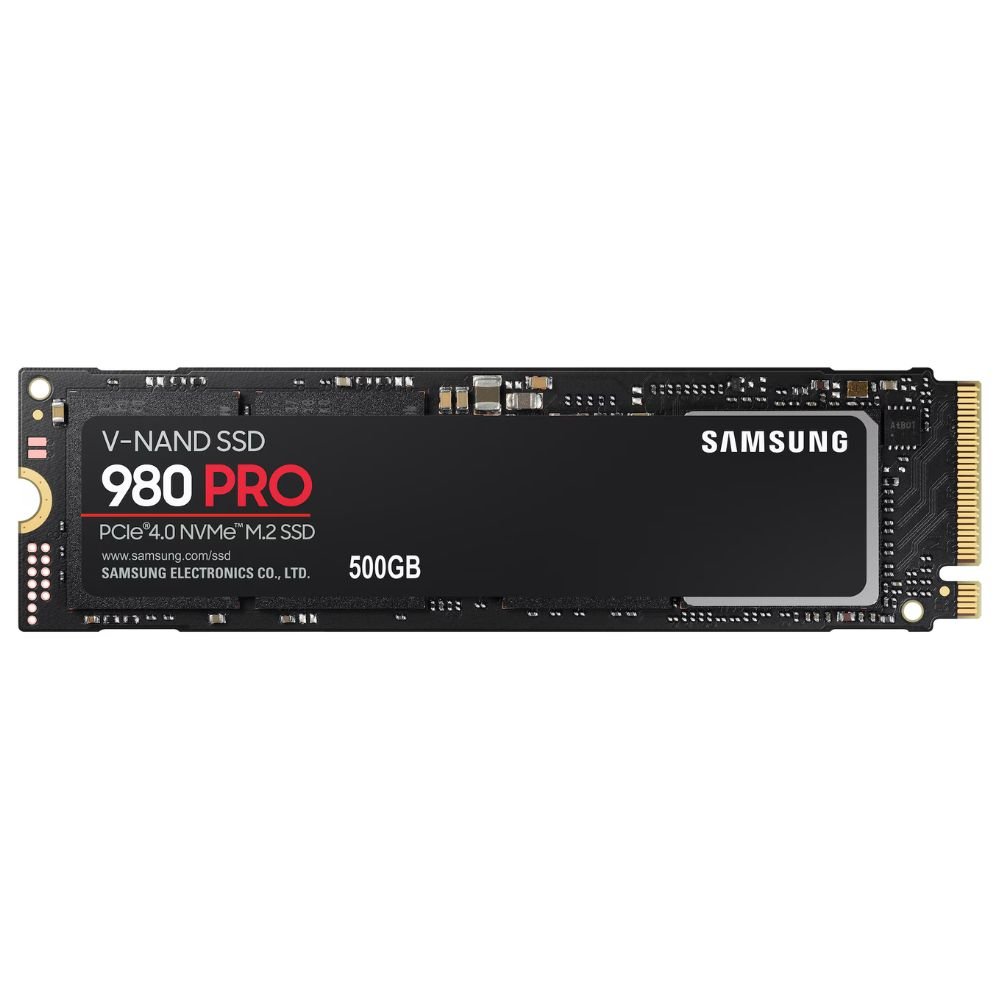

Samsung 980 PRO 500GB Up to 6,900 MB/s Read Speed, Up to 5000 MB/s Write Speed PCIe Gen 4.0 x4, NVMe 1.3c M.2 (2280) Thermal Control, Internal SSD – MZ-V8P500
About this item
- Up to 6,900 MB/s Read Speed
- Up to 5,000 MB/s Write Speeds
- PCIe Gen 4.0 NVMe SSD
- M.2 2280 compact form factor
- Next-level SSD performance
- Advanced Thermal Control
- Built with Samsung V-NAND & DRAM cache
- 5-year Warranty / 300 TBW Endurance
Next-level SSD Performance – Unleash the power of the Samsung PCIe 4.0 NVMe SSD 980 PRO for your next-level computing. Leveraging the PCIe 4.0 interface, the 980 PRO delivers double the data transfer rate of PCIe 3.0 while being backward-compatible for PCIe 3.0 for added versatility.
Maximum Speed – Powered by Samsung custom Elpis Controller for PCIe 4.0 SSD, the 980 PRO is optimised for speed. It delivers read speeds up to 7,000 MB/s, making it 2 times faster than PCIe 3.0 SSDs and 12.7 times faster than SATA SSDs. The 980 PRO achieves maximum speeds on PCIe 4.0 and may vary in other environments.
A winning Combination – Designed with hardcore gamers and tech-savvy users in mind, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. It’s fast at loading games so you can play more and wait less.
Efficient M.2 SSD – The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged into desktops and laptops for maximum board design flexibility. The drive is suitable for building high-performance computing systems due to its optimised power efficiency.
Reliable Thermal Control – High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 PRO uses nickel coating to help manage the controller’s heat level and a heat spreader label to deliver effective thermal control of the NAND chip.
Smart Thermal Solution – Embedded with Samsung’s cutting-edge thermal control algorithm, the 980 PRO manages heat on its own to deliver durable and reliable performance. To minimise performance fluctuations in the long haul, Samsung’s Dynamic Thermal Guard technology maintains the 980 PRO’s temperature at optimal levels.
Samsung Magician software – Unlock the full power of the 980 PRO with Samsung Magician’s intuitive yet advanced optimisation tools. Monitor drive health, optimise performance, protect valuable data, and receive important updates with Samsung Magician to ensure you’re always getting the best performance out of your SSD.
World’s No. 1 Flash Memory – Experience superior performance and reliability that you can only get from the world’s number one brand for flash memory since 2003. All firmware and components, including Samsung’s world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
Technical Details
| Brand | Samsung |
| Model Name | 980 PRO |
| Model Number | MZ-V8P500BW |
| Capacity | 500GB |
| Form Factor | M.2 (2280) |
| Interface | PCIe Gen 4.0 x4, NVMe 1.3c |
| Controller | Samsung Elpis Controller |
| NAND Flash | Samsung V-NAND (3-bit MLC / TLC) |
| Cache Memory | 512MB LPDDR4 DRAM |
| Sequential Read | Up to 6,900 MB/s |
| Sequential Write | Up to 5,000 MB/s |
| Random Read (4KB) | Up to 800,000 IOPS |
| Random Write (4KB) | Up to 1,000,000 IOPS |
| Encryption | AES 256-bit, TCG/Opal, IEEE1667 |
| TRIM Support | Yes |
| S.M.A.R.T Support | Yes |
| Power Management | Device Sleep Mode supported |
| Use Case | Client PCs, Gaming, High-performance Tasks |
| Dimension (WxHxD) | 80.15 x 22.15 x 2.38 (mm) |
| Weight | Max 9.0 g Weight |
| Warranty | 5 Years |
