About this item
- AMD Radeon RX 6800
- 16GB 256-Bit GDDR6
- GPU: Boost Clock: Up to 2170MHz
- 1 x HDMI 2.1 3 x DisplayPort 1.4
- PCI Express 4.0
- Stream Processors: 3840
- RDNA™ 2 Architecture
- Ray Accelerator: 60
- Game Clock: Up to 1950 MHz
- Radeon VR Ready Premium
- Video Streaming up to 8K
- High Performance 4K Gaming

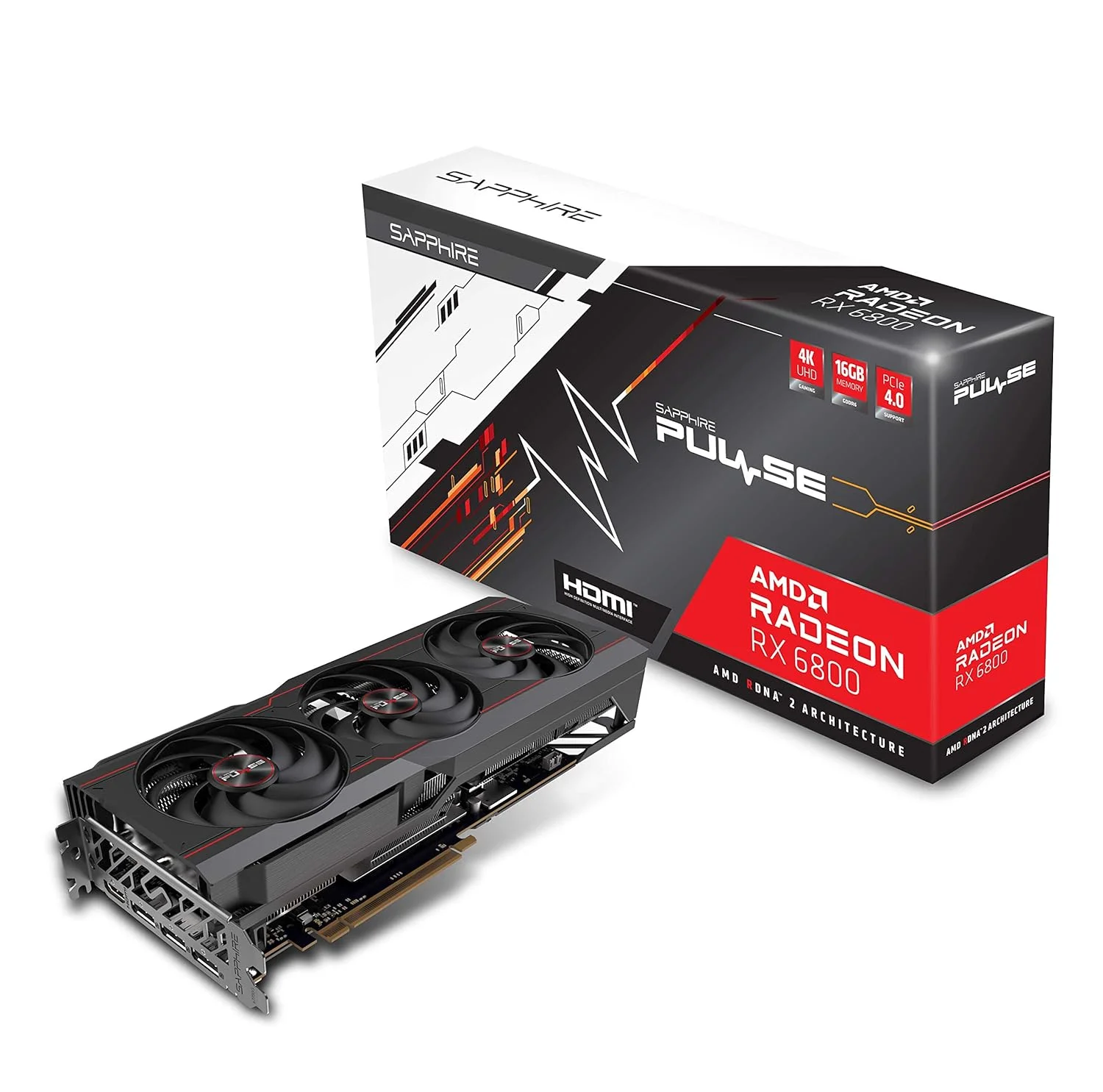

The Sapphire Pulse AMD Radeon™ RX 6800 yields robust 4K gaming performance at the optimal budget. Push your limits with high refresh rate competitive gaming and streamlined designs for incredible performance and efficiency powered by AMD’s visionary RDNA2 architecture. SAPPHIRE’s renowned components like the dual ball bearing fans, fuse protection and dual BIOS ensure a quality and reliability. The remarkable SAPPHIRE Tri-X Cooling Technology powered by two fans on the outside and the middle fan with reverse spinning direction secures a low temperature and low noise solution. These efficient cooling solutions alongside the all-aluminum aesthetic backplate coupled with our SAPPHIRE exclusive TriXX Boost builds a mix of incredible performance and stability with the PULSE AMD Radeon™ RX 6800. Take your gaming to the next level with the PULSE AMD Radeon™ RX 6800 as the beating heart of your PC!
AMD RDNA™ 2 – Introducing the AMD Radeon™ RX 6000 Series graphics cards, featuring the breakthrough, AMD RDNA™ 2 architecture, engineered to deliver powerhouse performance for all gamers. The AMD Radeon™ RX 6800 Series graphics cards power a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame.
Powerhouse Performance – AMD Radeon™ RX 6800 Series graphics cards deliver ultra-high frame rates and serious 4K gameplay. Get the ultimate gaming experience with powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen™ 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.
Technical Details
| Brand | Sapphire |
| Series | Pulse |
| Model Number | 11305-02-20G |
| Interface | |
| Interface | PCI Express 4.0 |
| Chipset | |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 6000 Series |
| GPU | Radeon RX 6800 |
| Game Clock | 1950 MHz |
| Boost Clock | 2170 MHz |
| Stream Processors | 3840 Stream Processors |
| Memory | |
| Effective Memory Clock | 16 Gbps |
| Memory Size | 16GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| 3D API | |
| DirectX | DirectX 12 |
| Ports | |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4 |
| Details | |
| Max Resolution | 7680 x 4320 |
| Virtual Reality Ready | Yes |
| Cooler | Triple Fans |
| OS Supported | Linux, Windows 7*, Windows 10, and Windows 8.1. 64-bit operating system required *Does not support all features including but not limited to Hardware Raytracing |
| Thermal Design Power | 280W |
| System Requirements | Minimum 650-Watt Power Supply. 2 x 8-pin Power Connector. PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
| Rec PSU Wattage | 650W |
| Power Connector | 2 x 8-Pin |
| Form Factor & Dimensions | |
| Form Factor | ATX |
| Max GPU Length | 303 mm |
| Card Dimensions (L x H) | 11.92″ x 5.01″ |
| Slot Width | 2.5-slot |
| Warranty | |
| Warranty | 3 Years |
