TP-Link VIGI NVR1008H VIGI 8 Channel Network Video Recorder | H.265+ | 80 Mbps Video Access Bandwidth | Two-Way Audio | Remote Monitoring | ONVIF, Black (VIGINVR1008H)
About this item
- 24/7 Continuous Recording: Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- 8-Channel Real-Time Live View: Sharp image definition up to 8MP and an 8 channel display ensures you capture every detail, from every angle.
- Simultaneous Playback: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
- H.265+ Smart Video Coding: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensure Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- 1 HDD Interface (up to 10 TB): Stores up to 10 TB (720 days* of video) on a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
- 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.

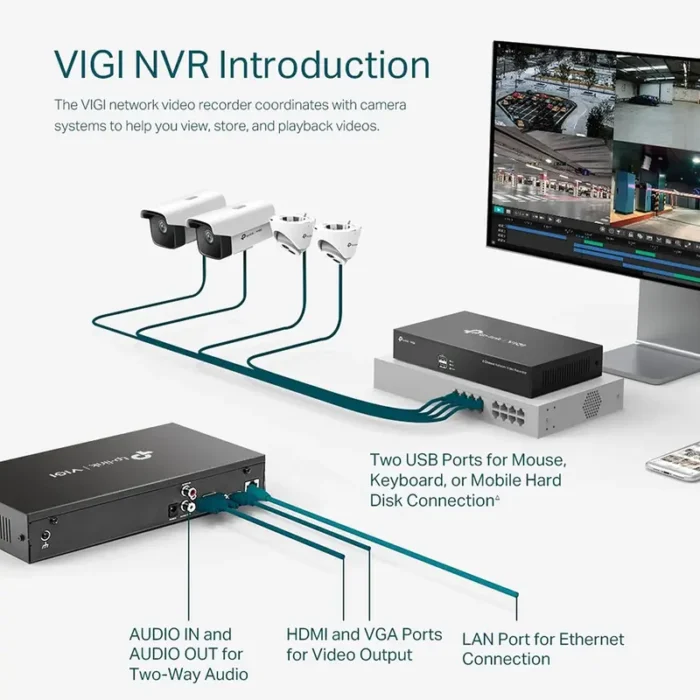

VIGI NVR Introduction – The VIGI network video recorder coordinates with camera systems to help you view, store, and playback videos. Two USB Ports for Mouse, Keyboard, or Mobile Hard Disk Connection
Security for every hour and every day – Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
Every angle all on one screen. – Sharp image definition up to 8MP and an 8 channel display ensures you capture every detail, from every angle.
Keep an eye on things even when you are on the move – Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
More compression. More savings. Same quality. – Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No need to check long compatibility lists – Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Up to 720 days of footage stored locally – Stores up to 10 TB ( 720 days of video) on a SATA hard drive, keeping your data storage secured locally.
Greet your visitors before they enter – With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
More bandwidth for more cameras – High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.
Technical Details
Brand | TP-Link |
Model Number | VIGINVR1008H |
Product Type | Network Video Recorder |
Video and Audio | |
Incoming Bandwidth | 80 Mbps |
Outgoing Bandwidth | 60 Mbps |
HDMI Output Resolution | 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
Video Output Mode | HDMI/VGA Simultaneous Output |
Multi-View Display | 1/4/6/8 |
Decoding | |
Audio Compression | G.711A/G.711U/G.726 |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Video Compression | H.265+/H.265/ H.264+/H.264 |
Record Resolution | 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
Live View/Playback Resolution | 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
Synchronous Playback | 4 Channel† |
Capability | 1-ch @ 8MP, 2-ch @ 4MP, 4-ch @ 2MP |
Record Management | |
Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
Backup Mode | • Regular Backup • Video Clip Backup |
Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
Network | |
Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
Mobile Phone Access | Android, iOS |
Incoming Bandwidth | 80 Mbps |
Outgoing Bandwidth | 60 Mbps |
Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
Interoperability | ONVIF, CGI |

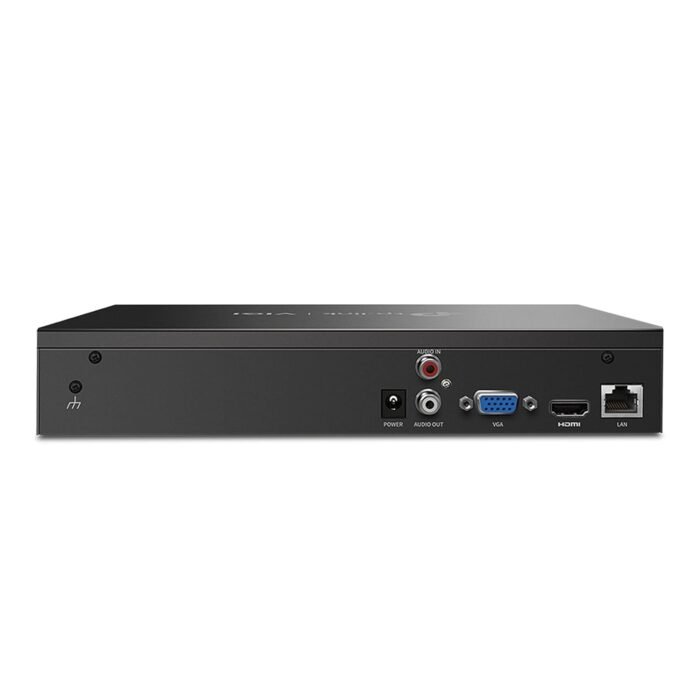

External Interface | |
Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
USB Interface | 2× USB 2.0 |
Audio Interface | 1, Audio In; 1, Audio Out |
Alarm In/Out | N/A |
Serial Interface | N/A |
Power | 1× DC Jack |
Reset Button | 1 |
Speaker | N/A |
eSATA | N/A |
HDMI | 1 |
VGA | 1 |
HARD DISK | |
SATA | 1 SATA Interface |
Capacity | Up to 16 TB |
Alarm | |
General Alarm | • Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection |
Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception |
Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm |
Interfaces | |
Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
USB Interface | 2× USB 2.0 |
GENERAL | |
Operating Temperature | -10–55 °C |
Storage Temperature | -40–70 °C |
Storage Humidity | 10%~90% RH Non-Condensing |
Weight | 578.5 g |
Package Content | VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
Working Humidity | 10%~90% RH Non-Condensing |
Dimensions( W X D X H ) | 246.2 × 148.2 × 45 mm |
External Power Supply | DC 12V/1.5A |
Net Weight | 0.59 Kg |
Gross Weight | 0.95 Kg |
Max. Power Consumption | 4.25 W (without disk) |
Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
Video / Image | |
Video Input | 8-Channel IP Video Input, up to 8 MP Resolution |
Video Output | Recording Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF HDMI/VGA Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz |
Recording Resolution | Recording Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
HDMI Output Resolution | 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
Warranty | |
Warranty | 1 Year |
