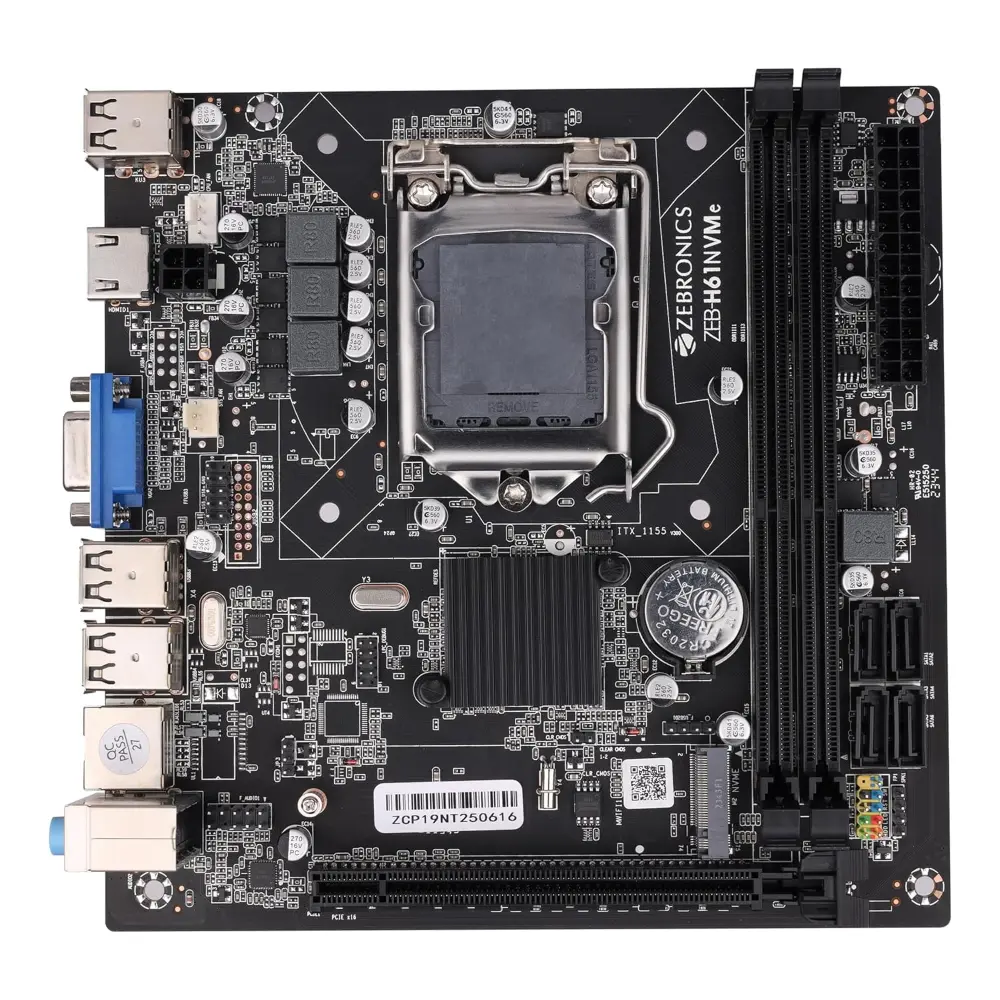

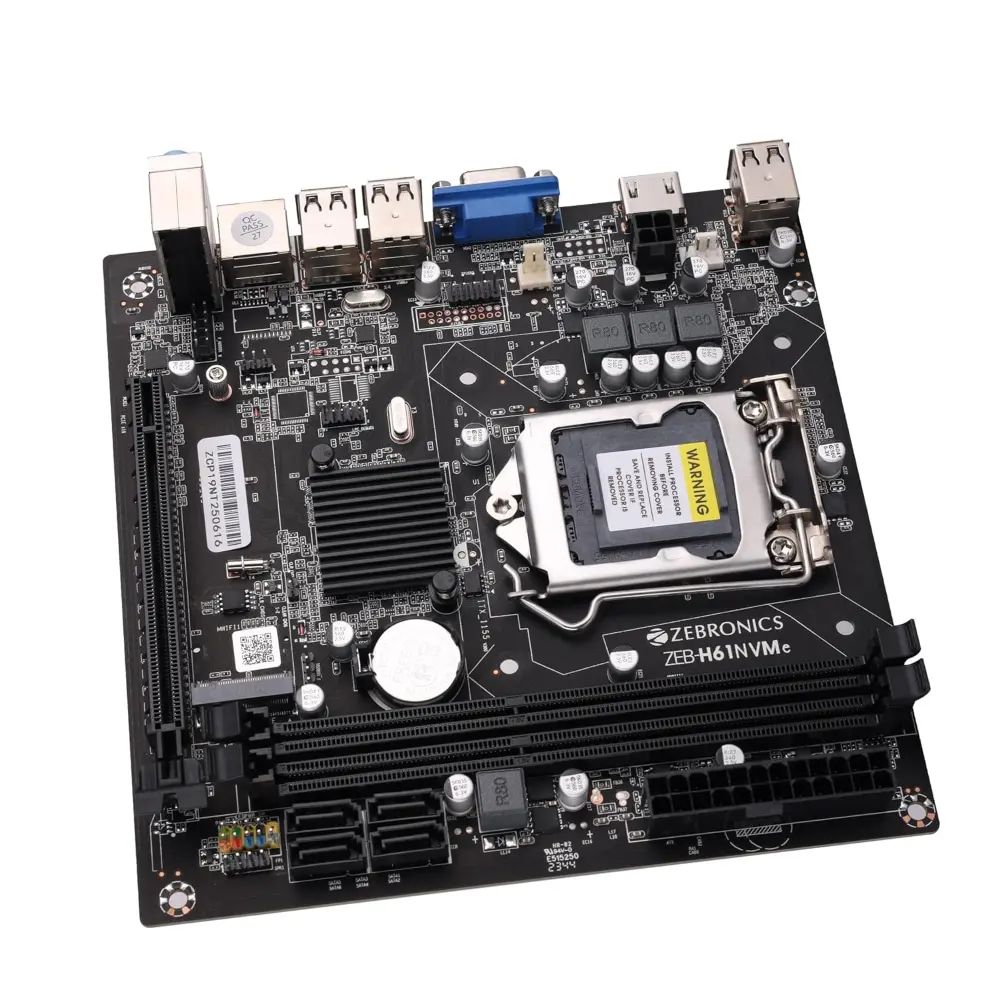

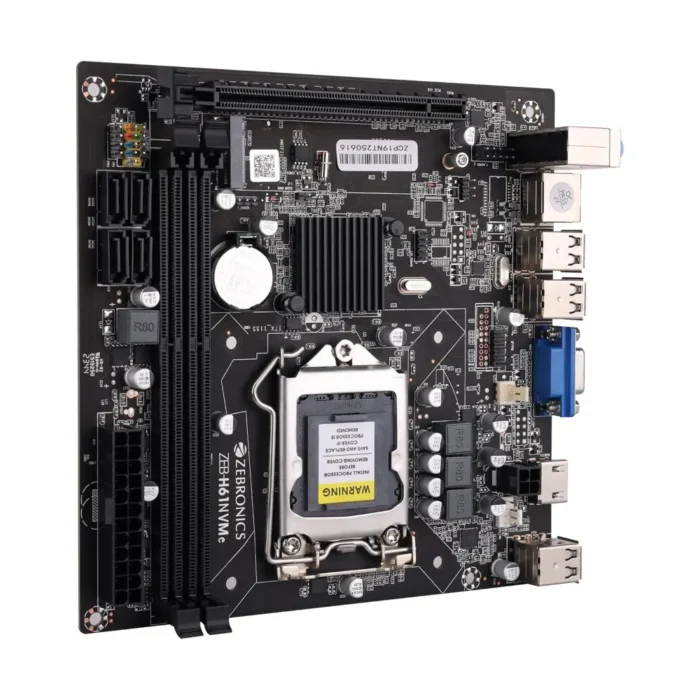

ZEBRONICS H61-NVMe Micro-ATX Motherboard for LGA 1155 Socket, Supports Intel 2nd & 3rd Generation Processors, M.2 Slot, 5.1 Audio, DDR3 1600 MHz, Ports (RJ45 | SATA | USB | HDMI)
About this item
- Suitable For Desktop, Workstation
- Intel H61 Express Chipset
- Data Rate DDR3
- Maximum RAM Capacity 16 GB
- Form Factor: Micro-ATX
DDR3 Memory Support: The ZEB-H61 NMVe motherboard is compatible with DDR3 memory modules, offering impressive speeds between 1066MHz and 1600MHz for optimal system performance.
H61 Chipset: The ZEB-H61 NMVe comes with the H61 chipset, a robust combination that provides a solid foundation for stability and reliability that coordinates the motherboard’s functions.
Socket Configuration: Designed with an LGA 1155 socket, this motherboard supports smooth data transfer and increased processing power by supporting the latest generation of Intel processors.
Motherboard: Equipped with LAN support, the motherboard ensures fast and reliable internet connectivity with 10/100 Mbps speeds. Additionally, including an M.2 slot improves data transfer speeds and optimizes storage space utilization.
Storage: The motherboard provides 4 SATA II ports, allowing for connecting multiple storage devices such as hard drives and SSDs. Additionally, including a PCIe 3.0 x16 slot for additional peripheral connection to the motherboard
Technical Details
| Brand | Zebronics |
| Model | ZEB-H61 NVMe / H61-M2 |
| Form Factor | Micro-ATX |
| Socket Type | LGA 1155 |
| Supported CPU | Intel Core i7 / i5 / i3 / Pentium / Celeron (2nd & 3rd Gen) |
| Chipset | Intel H61 / H67 |
| Memory Type | DDR3 |
| Memory Slots | 2 × DIMM |
| Max Memory | Up to 16GB |
| Memory Speed | 1066 / 1333 / 1600 MHz |
| BIOS | AMI BIOS |
| Graphics Interface | PCI Express x16 |
| Expansion Slots | 1 × PCIe x16 (Gen 3 size) |
| Storage Options | 4 × SATA II (3Gb/s), 1 × M.2 Slot |
| USB Ports | Up to 6 × USB 2.0 (rear + headers) |
| Video Output | HDMI + VGA |
| LAN | Realtek 8106E 10/100 Mbps Ethernet |
| Audio | 3-in-1 Audio / 6-channel HD Audio |
| Power Connectors | 24-pin ATX + 4-pin CPU power |
| Internal Connectors | Front panel, audio header, USB header, fan headers, CMOS header |
| Cooling Support | 2 × Fan connectors |
| Network Port | 1 × RJ45 LAN |
| Special Feature | NVMe (M.2) SSD support |
| Package Contents | Motherboard, SATA cable, I/O shield, driver disc, user manual |
| Warranty | 6 Months |
