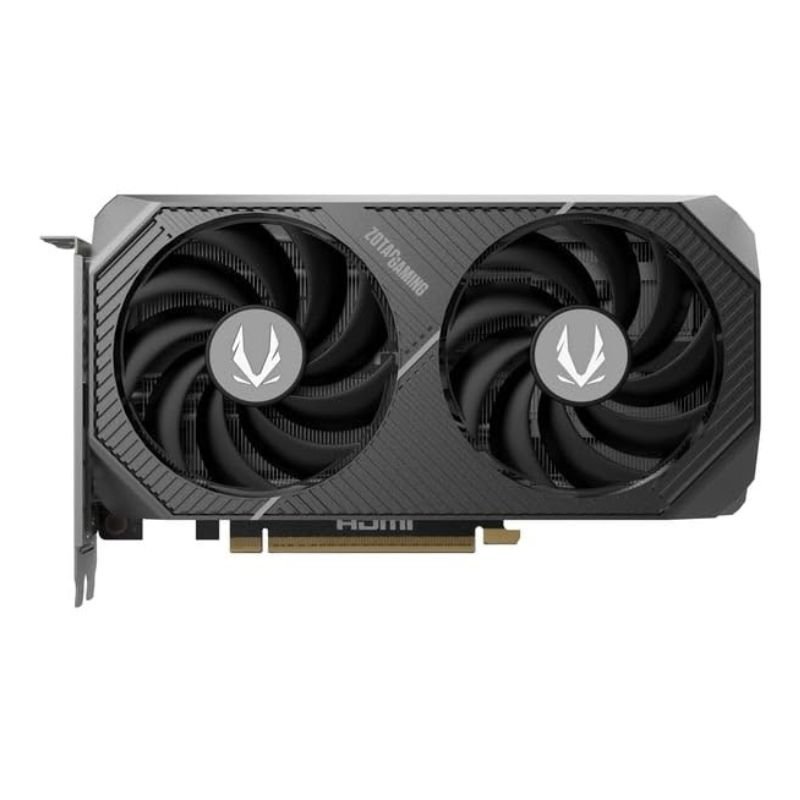

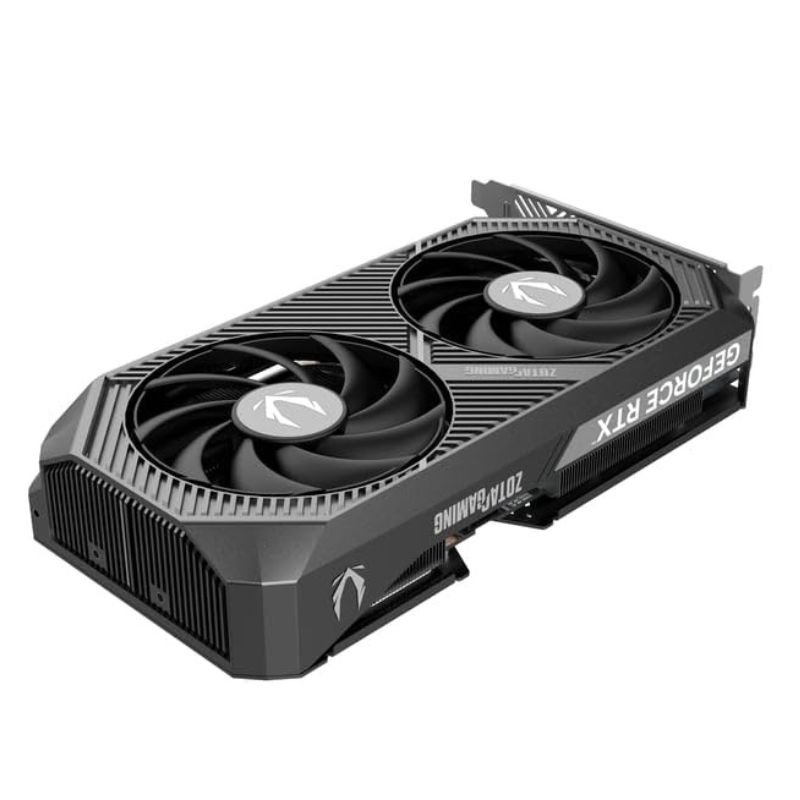

ZOTAC Gaming GeForce RTX 5060 Ti Twin Edge OC Graphics Card – Black | 8 GB | DLSS 4 | GDDR7 | 128 bit | IceStorm 2.0 Advanced Cooling | Dual Fan | SFF Ready | ZT-B50610H-10M
About this item
Powered by NVIDIA Blackwell Architecture: Experience next-generation gaming and AI performance with the latest NVIDIA Blackwell GPU, featuring 5th Gen Tensor Cores and 4th Gen RT Cores for advanced ray tracing and AI-accelerated graphics
8GB GDDR7 Ultra-Fast Memory: Enjoy smooth multitasking, high-resolution gaming, and creative workloads with 8GB of GDDR7 VRAM, a 128-bit memory interface, and 28 Gbps memory speed for future-ready performance
Factory Overclocked for Enhanced Performance: Achieve higher frame rates and faster rendering with a boost clock up to 2602 MHz, ensuring responsive gaming and creative workflows
4608 CUDA Cores: Unlock impressive graphics power for 1080p and 1440p gaming, content creation, and demanding applications with 4608 CUDA cores optimized for efficiency and speed
Compact SFF-Ready Dual-Slot Design: Features a space-saving 2-slot form factor, measuring just 220.5 mm in length and 120.25 mm in height, ideal for small form factor and SFF-Ready PC builds without sacrificing performance
Advanced IceStorm 2.0 Cooling & Dual 90mm BladeLink Fans: Stay cool and quiet under load with dual 90mm BladeLink fans, IceStorm 2.0 advanced cooling, and FREEZE fan stop technology for optimal thermal management and silent operation

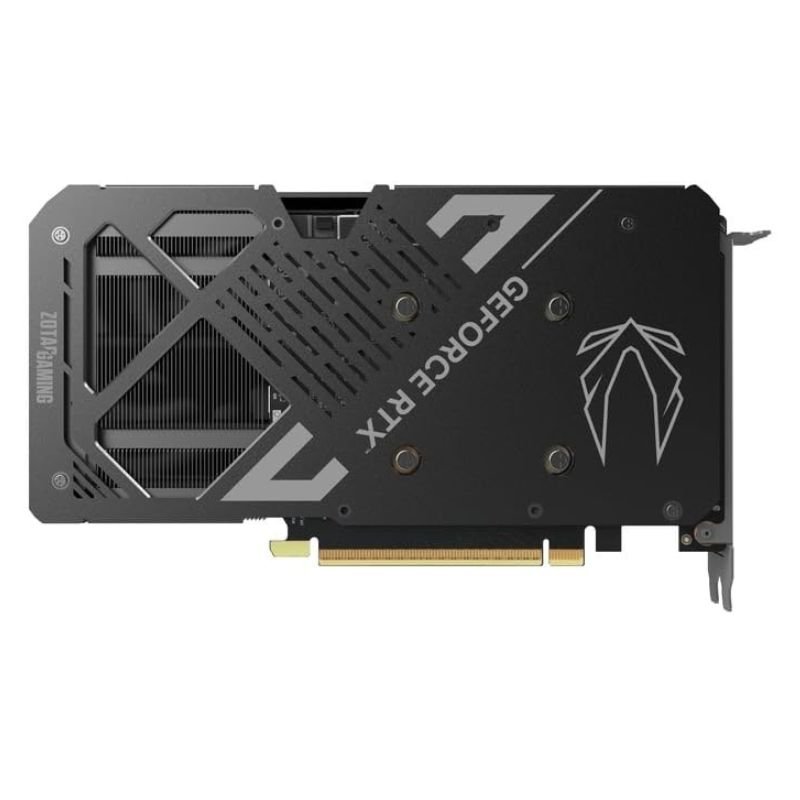

Metal Backplate & Side Retention Mount: Includes a durable metal backplate for added rigidity and protection, plus a side retention mount for secure installation and transport.
PCI Express 5.0 x8 Support: Achieve high bandwidth and compatibility with the latest motherboards, enabling lightning-fast data transfer and reduced bottlenecks for modern systems

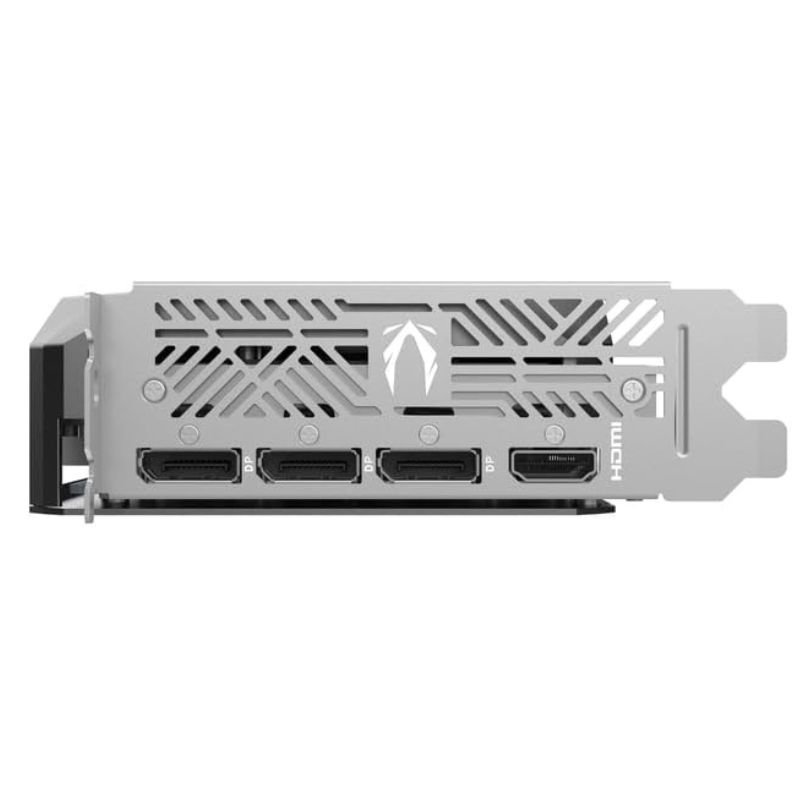

Next-Gen Display Connectivity: Connect up to 4 displays with 3x DisplayPort 2.1b (up to 4K 480Hz or 8K 165Hz with DSC) and 1x HDMI 2.1b (up to 4K 480Hz HDR or 8K 120Hz HDR), supporting VRR and HDCP 2.3 for immersive, stutter-free visuals
Comprehensive Software Support: Compatible with NVIDIA GeForce Experience, NVIDIA Broadcast, Game Ready and Studio Drivers, and ZOTAC GAMING FireStorm Utility for easy customization and updates
Technical Details
| Brand | ZOTAC |
| Model Name | RTX 5060 Ti Twin Edge |
| Model Number | ZT-B50610H-10M |
| GPU | NVIDIA GeForce RTX 5060 Ti GPU |
| CUDA cores | 4608 |
| Video Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Engine Clock | 2602 MHz |
| Memory Clock | 28 Gbps |
| PCI Express | PCI Express 5.0 x8 |
| Display Outputs | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) 1 x HDMI® Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 600W |
| Power Consumption | 180W |
| Power Input | 1 x 8-pin power input |
| DirectX | Microsoft DirectX® 12 Ultimate |
| OpenGL | 4.6 |
| Cooling | IceStorm 2.0 |
| Slot Size | 2 |
| SLI | No |
| Supported OS | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Card Length | 220.5mm x 120.25mm x 41.6mm / 8.7″ x 4.7″ x 1.6″ |
| Accessories | User Manual |
| Warranty | 3 Years |
