ZOTAC Gaming GeForce RTX 5060 Twin Edge 8GB Graphics Card – Black | 8 GB | DLSS4 | GDDR7 | PCIE 5.0 | SFF Ready | 3840 CUDA Cores | ZT-B50600E-10M | Only Graphics Card
About this item
- 8GB GDDR7 Memory
- NVIDIA Blackwell Architecture
- DLSS 4 Technology
- 3840 CUDA Cores
- 2497 MHz Boost Clock

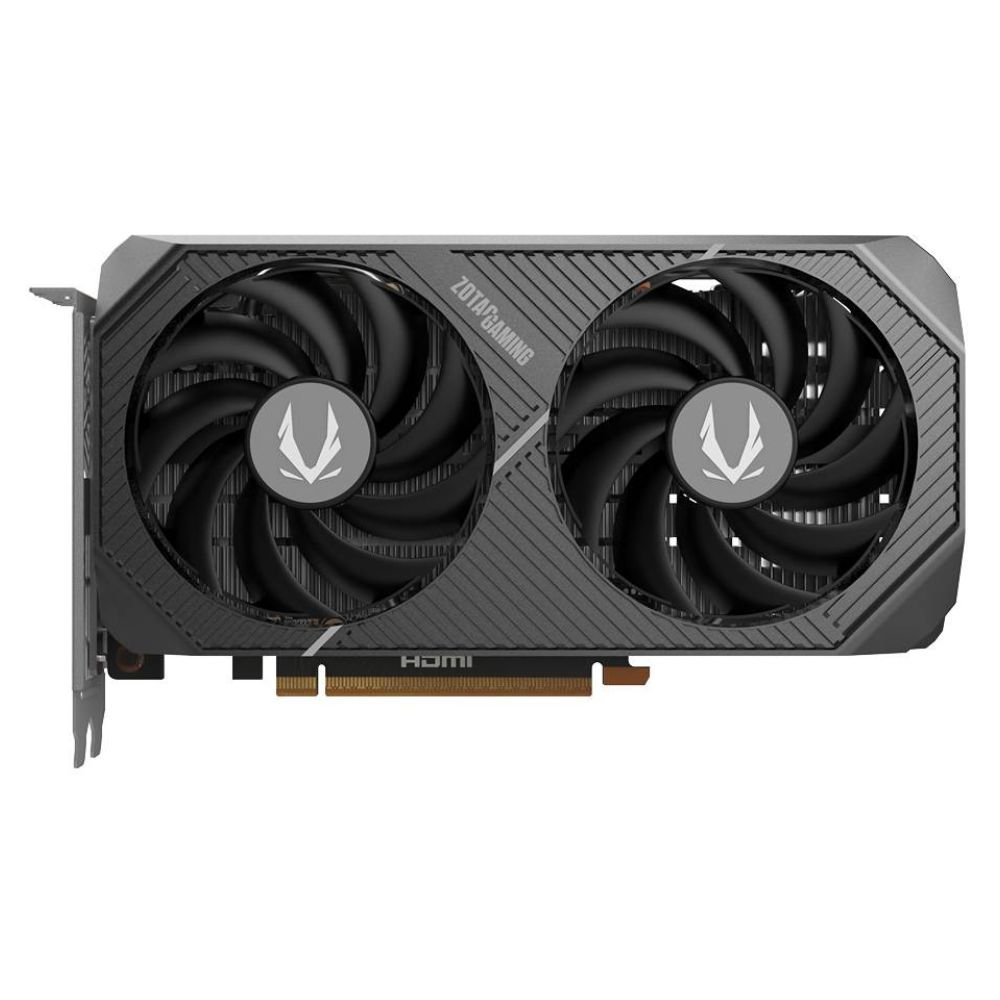

- Dual 90mm BladeLink Fans

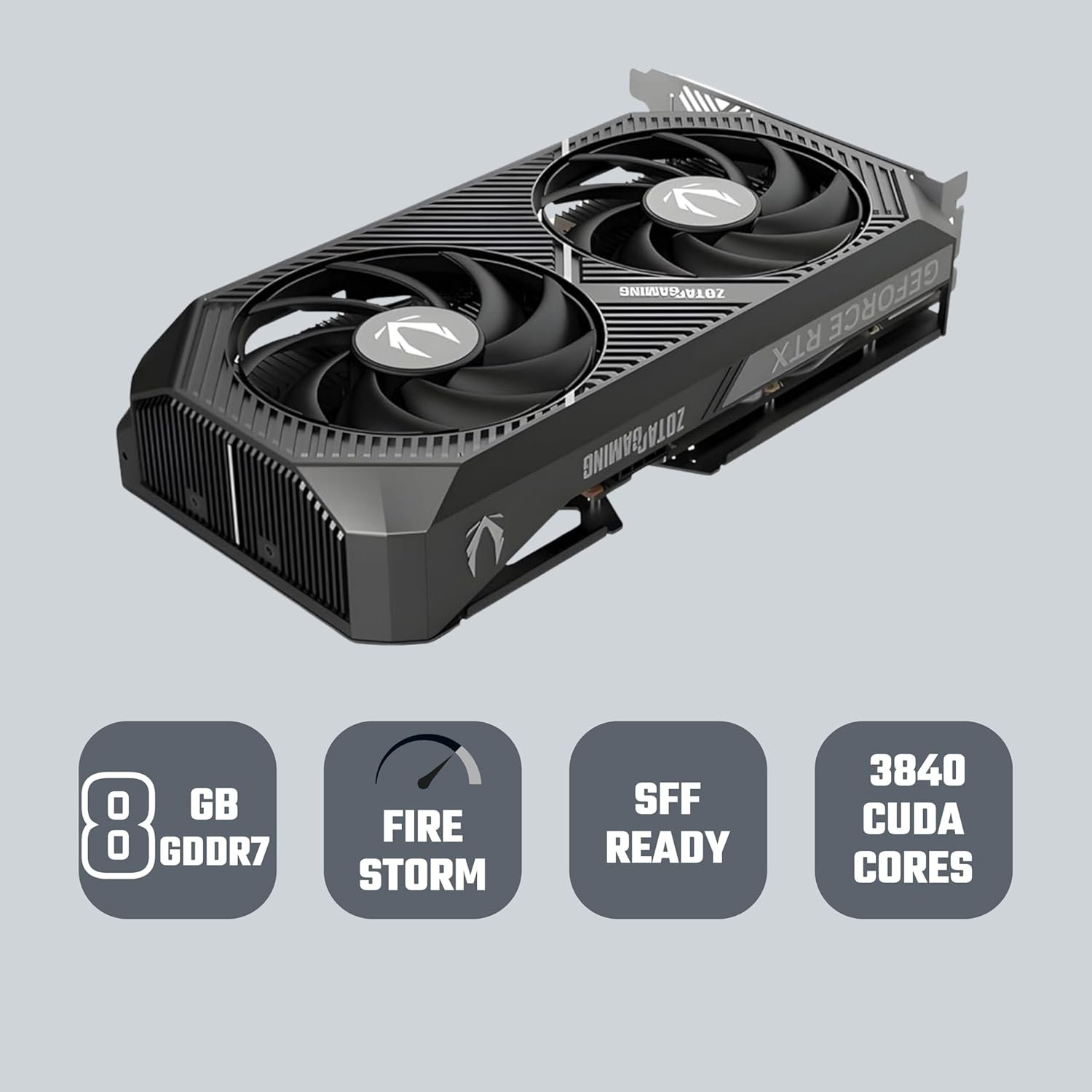

- Compact SFF-Ready Design

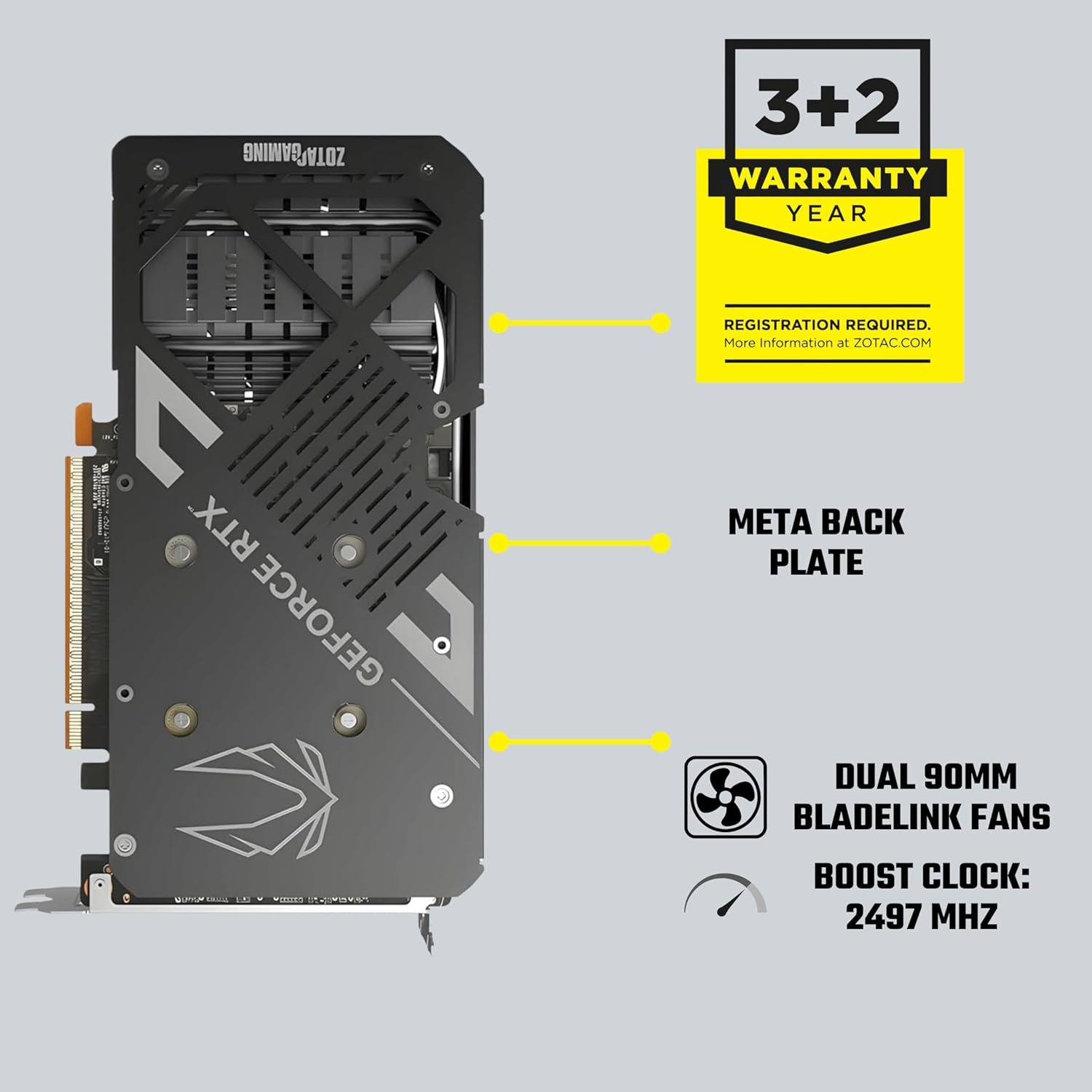

- Metal Backplate
- PCIe 5.0 x8 Interface
- Triple DisplayPort + HDM

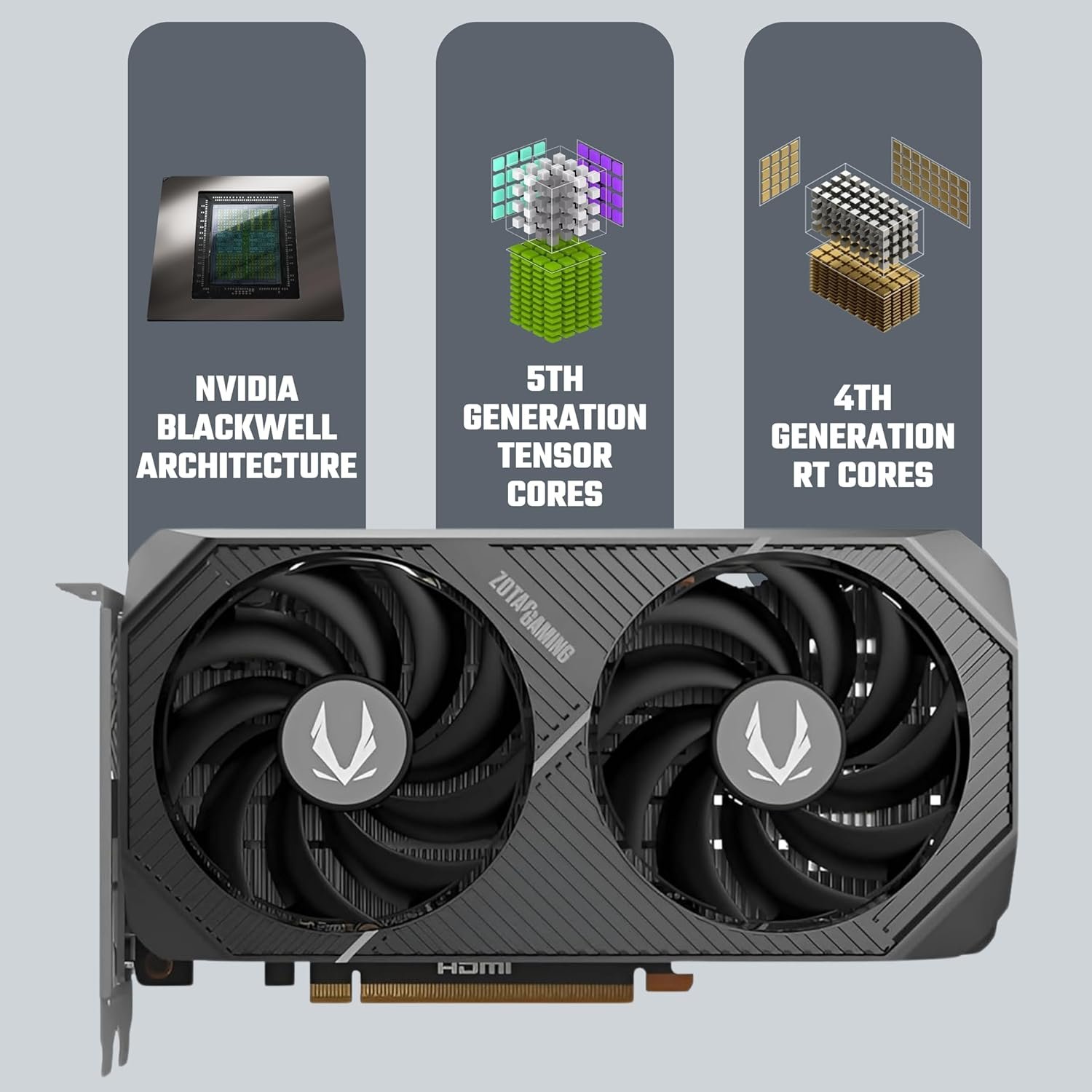

The ZOTAC GAMING GeForce RTX 5060 Twin Edge is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a solid cooling solution, the Twin Edge is ready to take on the latest title releases with smooth framerates and performance.
- Fifth-Gen Tensor Cores: Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors: Optimized for neural shaders
- Fourth-Gen Ray Tracing Cores: Built for Mega Geometry
The Ultimate in Ray Tracing and AI – RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.
Supreme Speed. Superior Visuals. Powered by AI. – DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.
Game-Changing Realism – The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.
Technical Details
| Brand | ZOTAC |
| Model | GeForce RTX 5060 Twin Edge |
| Model Number | ZT-B50600E-10M |
| GPU | NVIDIA GeForce RTX 5060 |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 3,840 |
| Boost Clock | Up to 2,497 MHz |
| Video Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Interface | PCI Express 5.0 x8 |
| Ray Tracing | Yes, 4th Generation RT Cores |
| Tensor Cores | 5th Generation |
| DLSS | DLSS 4 |
| Cooling | Dual-fan cooling system |
| Fans | 2 × 90mm BladeLink Fans |

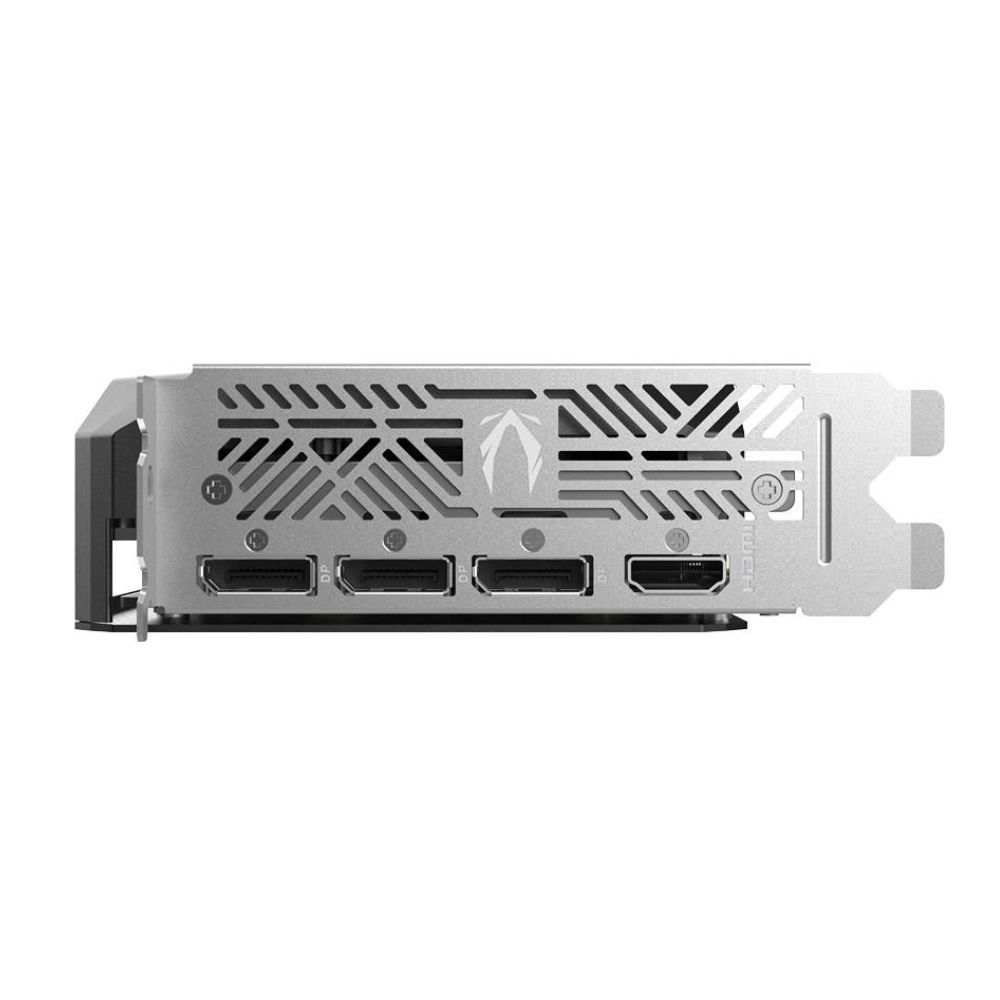

| Display Outputs | 3 × DisplayPort, 1 × HDMI |
| Maximum Displays | Up to 4 |
| HDCP | 2.3 |
| Power Connector | 1 × 8-pin |
| Recommended PSU | 600W |
| Slot | 2-slot |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Card Dimensions | Approx. 220.5 × 120.3 × 41.6 mm |
| SFF Ready | Yes |

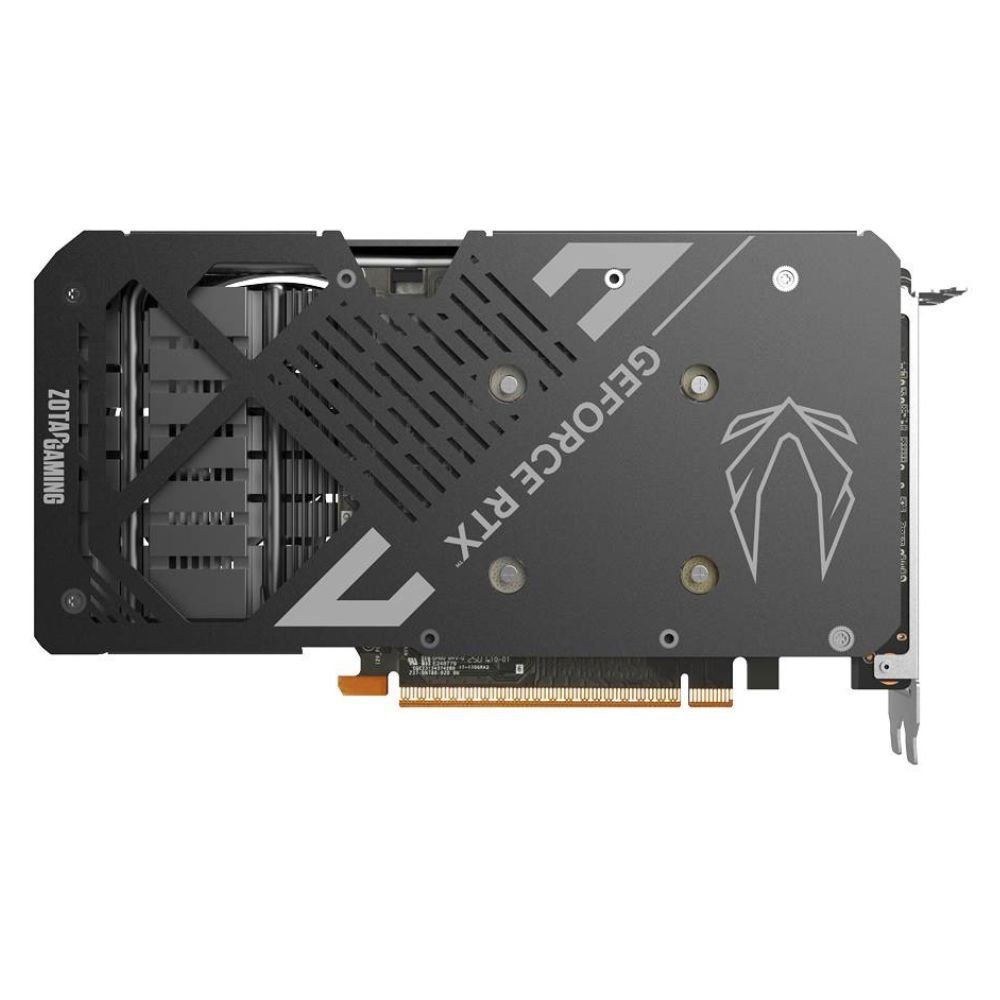

| Backplate | Metal Backplate |
| Cooling Features | Freeze Fan Stop, Active Fan Control |
| VR Ready | Yes |
| Warranty | 3+2 Years |
