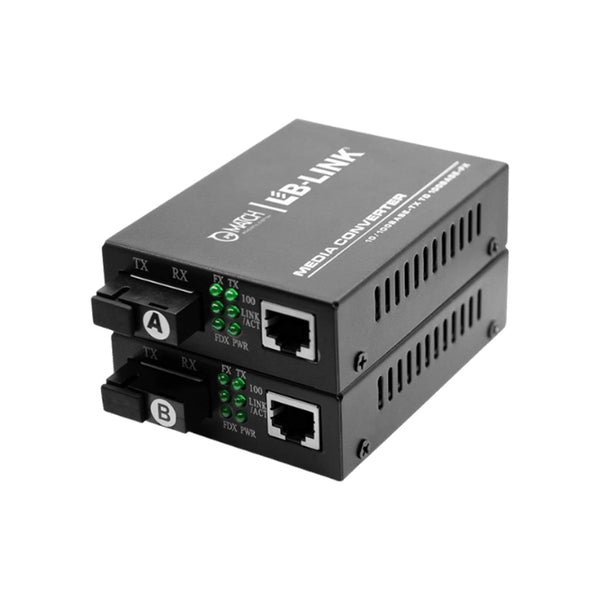

Match LB-Link BL-MC20SF100 Media Converter 10/100Base TX to 10/100Base-FX 1 Ports 100 Mbps Unmanaged Network Switch (Black)
About this item
- Type: Unmanaged
- Number of Ethernet Ports: 1
- Speed: 100 Mbps
- Power Consumed: 5 W
- Weight: 470 g
Experience the amazing performance of the media converter, which increases productivity and enables continuous connectivity. The 10/100 Mbps Adaptive Ethernet fibre converter by MATCH LB-LINK uses switching that adheres to IEEE802.3, 802.3u, and 802.3x standards. It can additionally offer hot-swappable power regulation, enabling a network’s transmission distance to be increased from 100 metres via copper wires to 20 kilometres. In addition, it actively employs a four-layer circuit structure that enables dependable operation and interference-free data transmission.
10/100 Mbps Fibre Ethernet Media Converter – The switching technique used by the MATCH LB-LINK 10/100 Mbps Adaptive Ethernet fibre converter complies with IEEE802.3, 802.3u, and 802.3x standards. Moreover, it can convert electrical signals between twisted-pair 10Base-T and 100Base-TX standards.

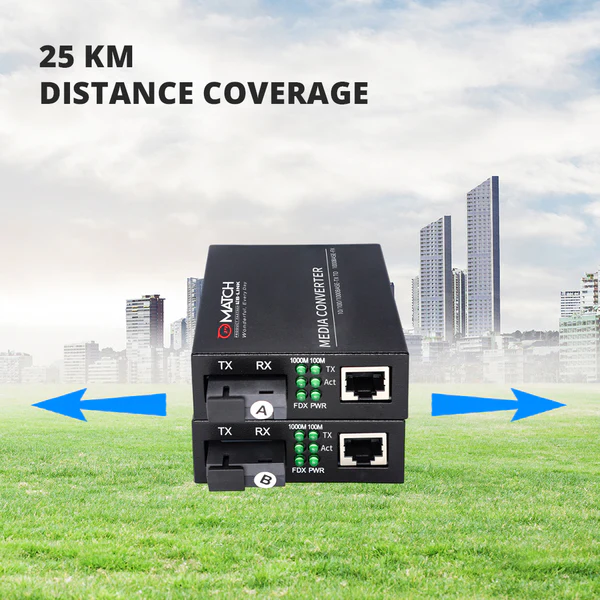

Stable Transmission – With this media converter, transmission is quick and reliable. It can further offer hot-swappable power protection that increases the network’s transmission distance from 100 metres over copper wires to 20 kilometres.

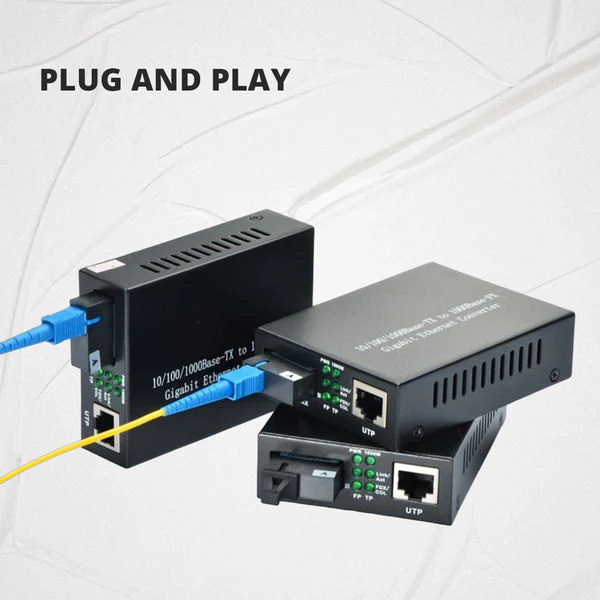

Easy Setup and Installation – Plug and play is all that is necessary to set up this Media Converter. This media converter can typically be used without issue for more than 50000 hours. Moreover, it functions at a standard telecom level.

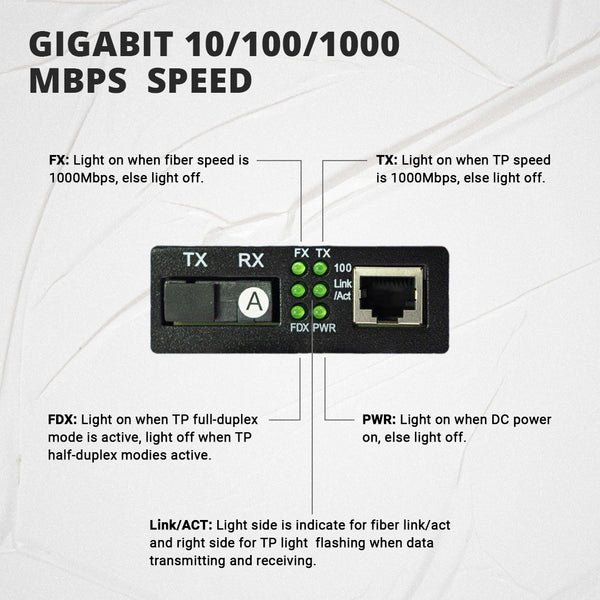

LED Indicators – To know what’s happening inside, this 10/100Base TX to 100 Base FX bridging converter incorporates LED indications. It actively uses a four-layer circuit topology that is capable of interference-free data transmission and provides reliable operation.
Technical Details
| Brand | Match LB-Link |
| Model Number | BL-MC20SF100 |
| Type | Unmanaged Media Converter |
| Color | Black |
| VLAN Support | No |
| Network Ports | |
| Number of Ethernet ports | 1 |
| Speed | 100 Mbps |
| Indicators | |
| LEDs | Link, Activity, TX, FX |
| Power | |
| Power Adapter Input | AC 220 V |
| Power Consumption | 5 W |
| Power Requirement | DC 5 V, 1 A |
| Supported Protocols | |
| Supported Protocols | IEEE 802.3x, IEEE802.3u, IEEE 802.3 |
| Operating Conditions | |
| Operational Humidity | 10 to 90 % |
| Operational Temperature | -20 – 40 DegreeC |
| Storage Humidity | 5 to 95 % |
| Storage Temperature | -40 – 85 DegreeC |
| Dimensions | |
| Height | 70 mm |
| Width | 95 mm |
| Depth | 25 mm |
| Weight | 470 g |
| In the box | |
| Sales Package | IEEE 802.3x, IEEE802.3u, IEEE 802.3 |
| Warranty | |
| Warranty | 6 Months |
