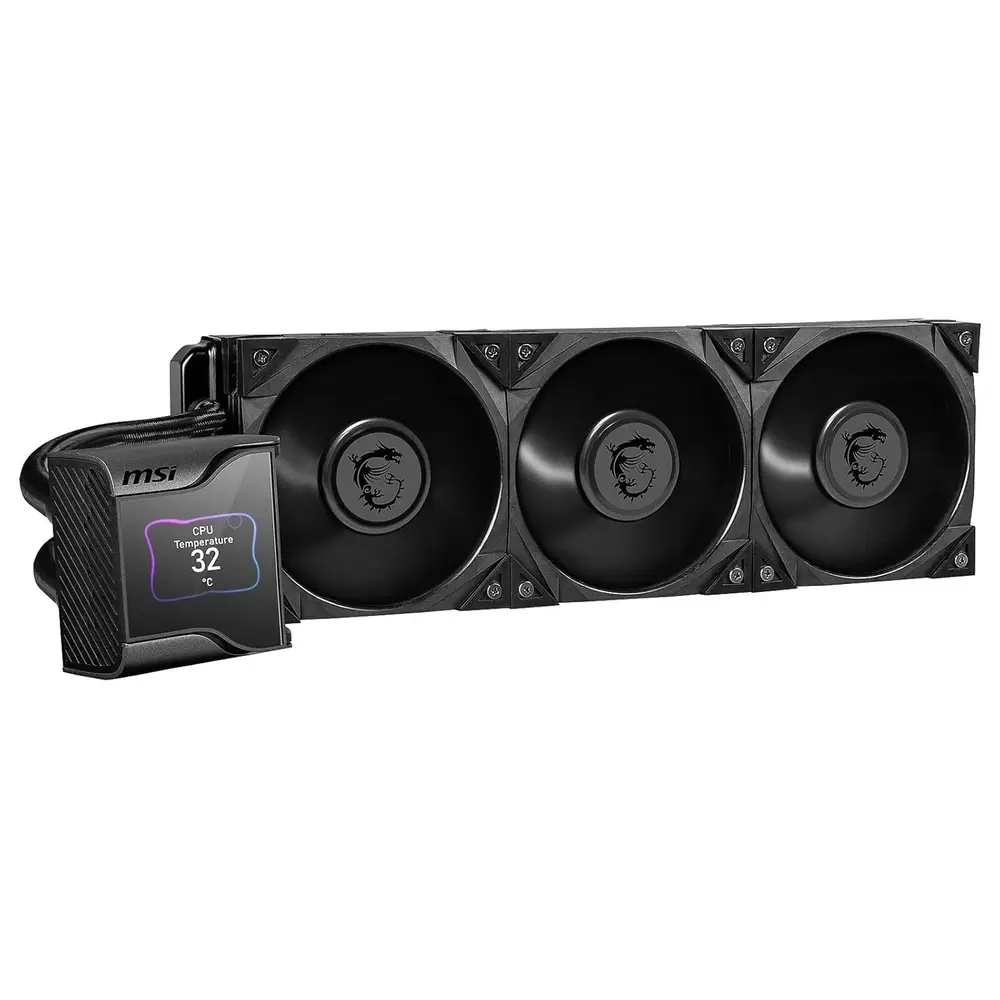

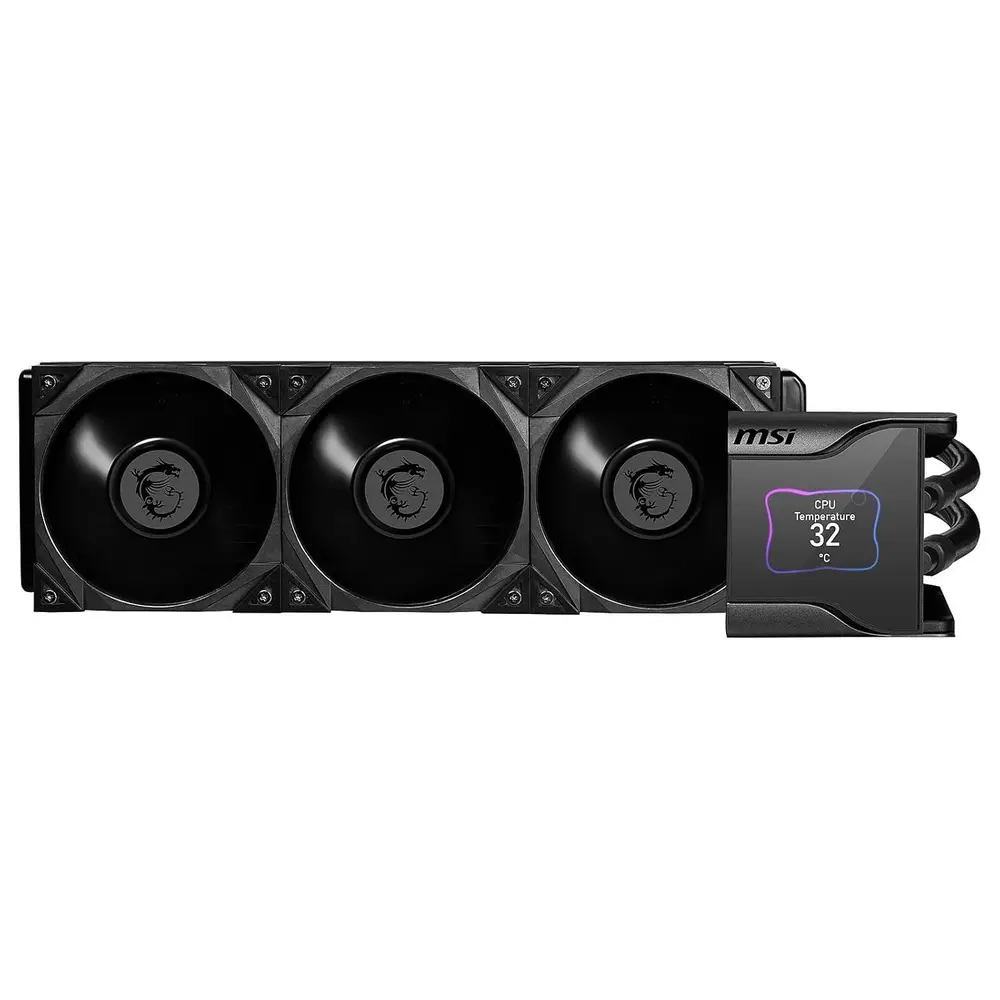

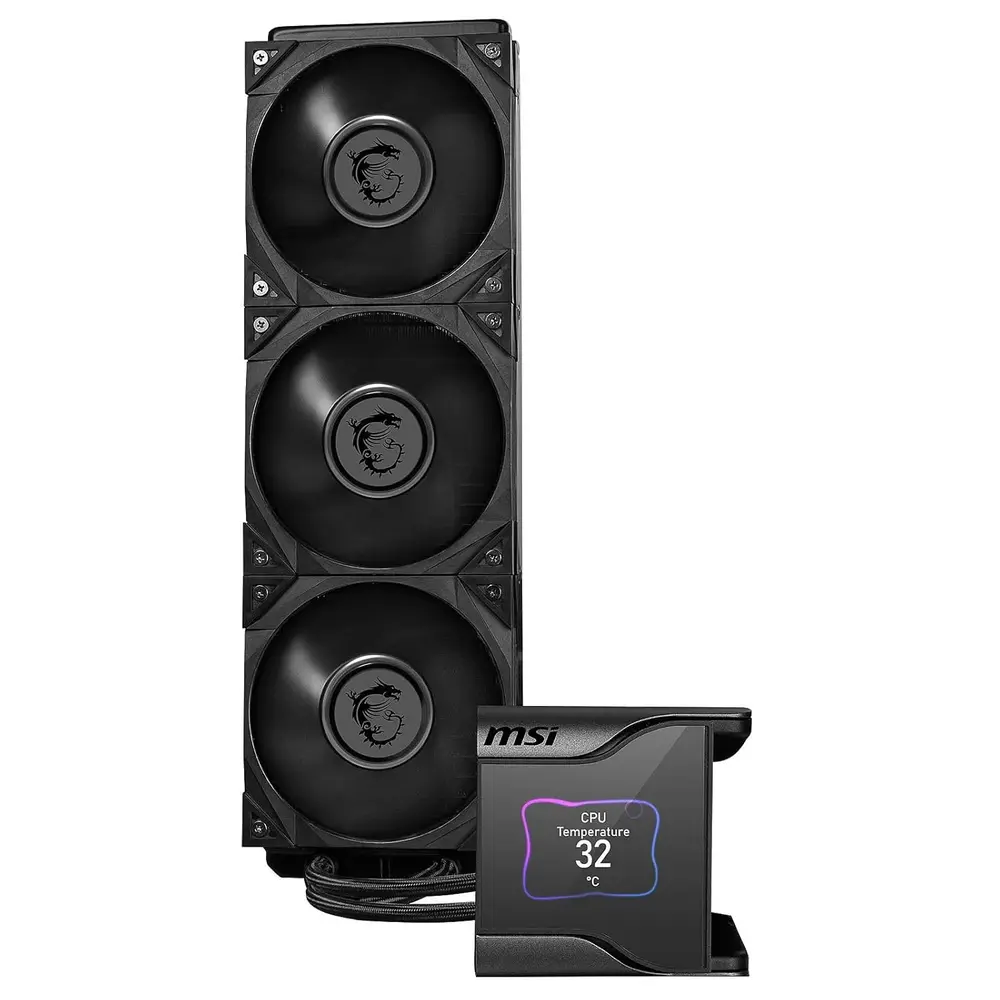

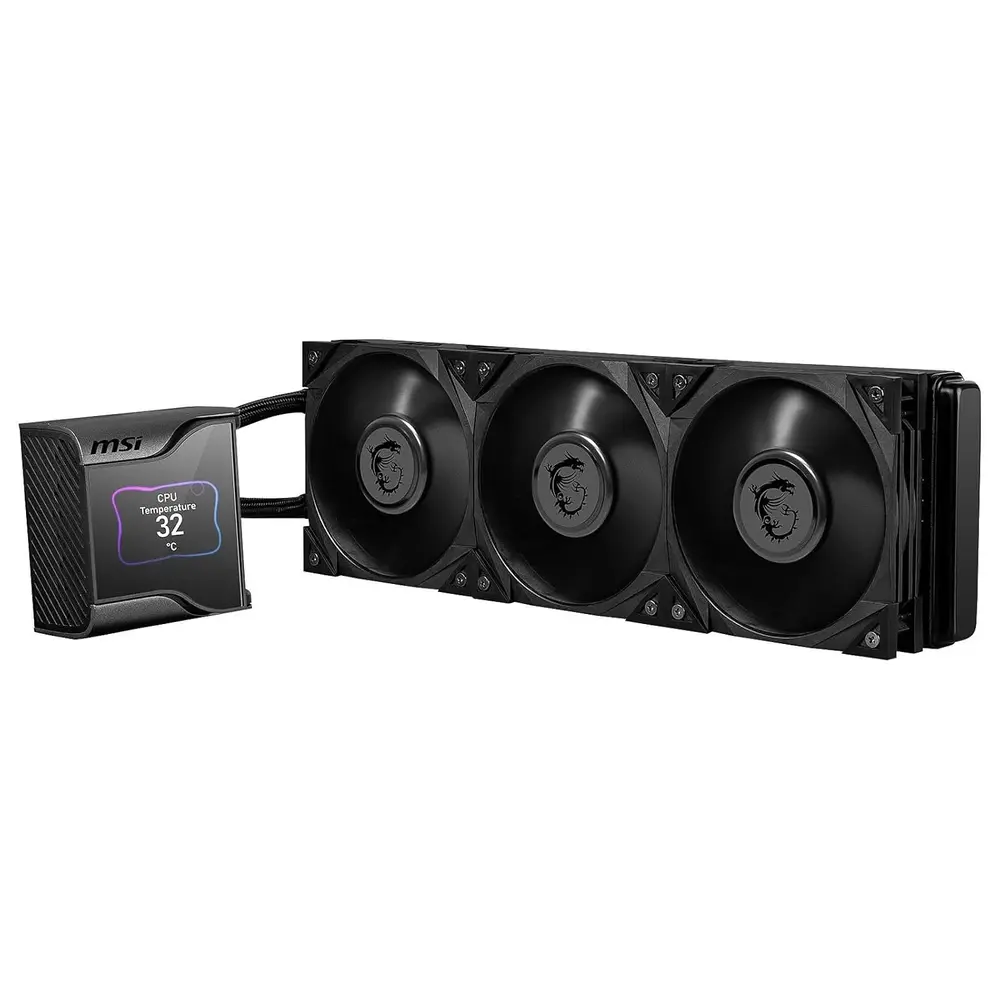

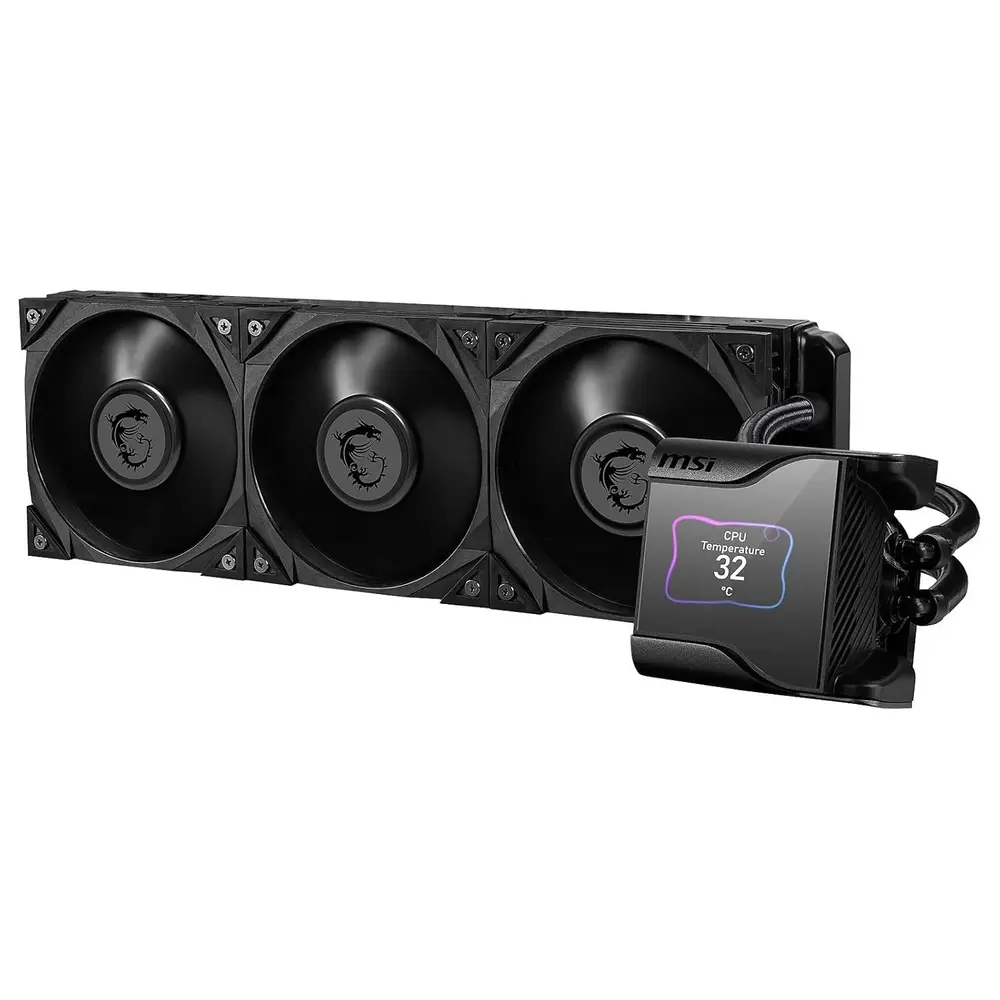

MSI Premium MEG CORELIQUID S360 Liquid Cooler (AIO CPU Liquid Cooler, 360 Radiator, 2.4″ IPS Display, 3 x 120mm Fans, Silent Fan, Asetek 7th Gen, Water Block Fan, LGA 1700)
About this item
- 360mm Aluminum Radiator
- 3 x 120mm Fans
- 2.4 Inch Customizable LCD Screen
- Pump Embedded Fan
- Asetek 7th Gen Pump
- Evaporation-Free Tubing
- Gaming Intelligence Mode
- MSI Center Software Compatible
- Supports Intel & AMD Sockets
- MSI’S Meg Silent Gale P12 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.
- A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.
- The Meg Silent Gale P12 and the water block fan support 0% RPM to ensure zero noise under low temperatures.
- The Meg Coreliquid S Series comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.
- The Meg Coreliquid S Series liquid cooler provides out of box support for LGA 1700.
2.4 Inch IPS Display – The pump block features a 2.4-inch IPS display (320 x 240 pixels, 16-bit colour, 500 nits) protected by magnetically attached transparent cover. Customizable modes include: Hardware Monitor Video / Images System Clock Live Weather
7th Gen Asetek Pump – The CPU waterblock features an Asetek 7th Generation pump (PWM controlled, 21.2 dBA, 50,000 hours life expectancy). A circular milled copper cold plate with pre-applied thermal compound ensures excellent thermal conductivity.
60mm VRM Fan – Concealed bettween the pump & IPS panel is a 60mm downdraft fan that can be activated to cool the adjacent VRM, M.2 SSD slots, and surrounding components. At lower temperatures, the VRM fan can be assigned to 0% RPM mode to ensure minimal noise.
MSI Center – MSI Center software supports further customization of LCD display settings. Additionally, it features performance-optimized modes for the water pump, VRM fan, and radiator fans: Silent (min. noise) Balance Gaming (max. cooling) Customized (user assigned)
MEG Silent Gale P12 Fans – MSI MEG SILENT GALE P12 fans feature Liquid Crystal Polymer (LCP) blades angled at 32° for a high static pressure (2.21 mmH2O) required to overcome radiator impedance while retaining up to 58% airflow (56.2 CFM). A durable low-friction Hydro-Dynamic Bearing (HDB) along with anti-vibration pads keep noise to a minimum (max. 22.7 dBA).
S360 Radiator
Features a 394 x 120 x 27 mm aluminium radiator with matte black finish. Includes extra-long radiator case mounting screws for easier installation.
Evaporation-Proof Tubing – Water flows from pump block to the radiator via 90-degree articulated pump connectors and in/out 400mm evaporation-proof tubing with triple-layered netted plastic tubing & reinforced mesh sleeving.
Socket Compatibility – Intel Sockets: LGA 1700 LGA 1200, 1156, 1155, 1151, 1150 LGA 1366, 2011, 2011-3, 2066 AMD Sockets: AM4, AM3+, AM3, AM2+, AM2 FM2+, FM2, FM1 TR4, sTRX4, SP3
Technical Details
| Brand | MSI |
| Model Name | MEG CORELIQUID S360 |
| Model Number | 936-6A0521-005 |
| Radiator Size | 360 mm |
| Radiator Dimensions (WxDxH) | 394 x 120 x 27mm / 15.5 x 4.7 x 1.06 inches |
| Radiator Material | Aluminum |
| Water Cooling Tube Material | Black Rubber + Mesh |
| Number of Fans | 3 |
| Fan Dimensions (WxDxH) | 120 x 120 x 27.5mm / 4.7 x 4.7 x 1.08 inches |
| Fan Air Flow | 56.2 CFM |
| Fan Bearing | Hydro-Dynamic Bearing |
| Fan Life Expectancy | 50,000 Hours |
| Fan Rated Current | 0.4 A (MAX) |
| Fan Power Consumption | 4.8 W (MAX) |
| PWM Mode | Yes |
| Cable Length (PWM Cable) | 350 mm / 13.78 inches |
| Fan Connector | 4 pin PWM |
| Pump Life Expectancy | 50,000 Hours |
| Pump Noise Level | 21.2 dBA |
| Pump Rated Current | 0.3A |
| Pump Power Consumption | 4W |
| Pump Speed | 2800 +/-300 RPM (PWM controlled) |
| Pump Connector | 4 pin PWM |
| Cold Plate Material | Copper |
| Block Dimensions (WxDxH) | 95 x 95 x 83.53 mm |
| Intel Socket Support | LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 |
| AMD Socket Support | AM5 / AM4 / Socket TR4 / sTRX4 / SP3 |
| Panel Size | 2.4″ |
| Panel Type | IPS |
| Panel Resolution | 320 x 240 |
| Panel Brightness | 500 nits |
| Interface Connector | USB 2.0 pin header |
| Power Connector | SATA |
| Warranty | 2 Years |
