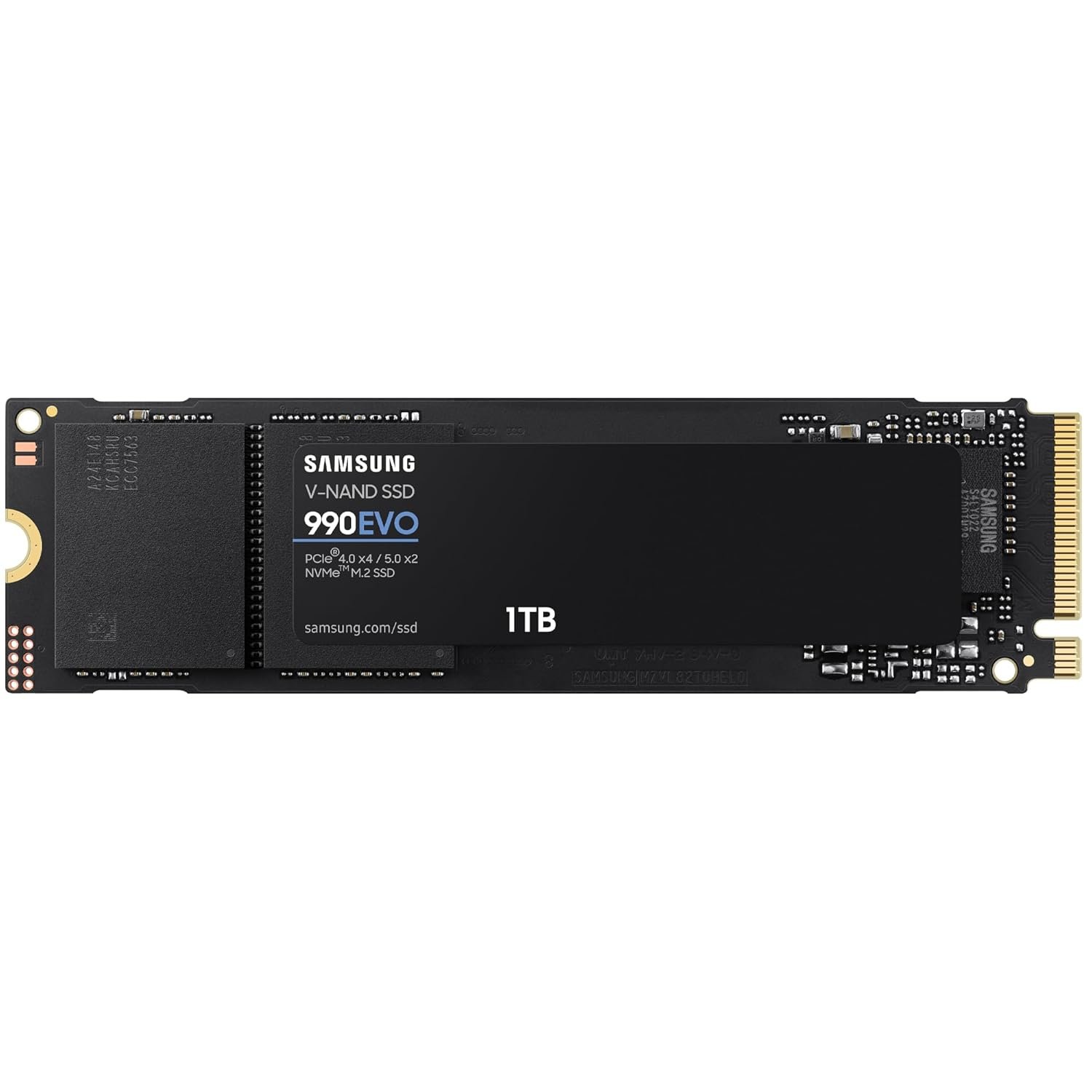

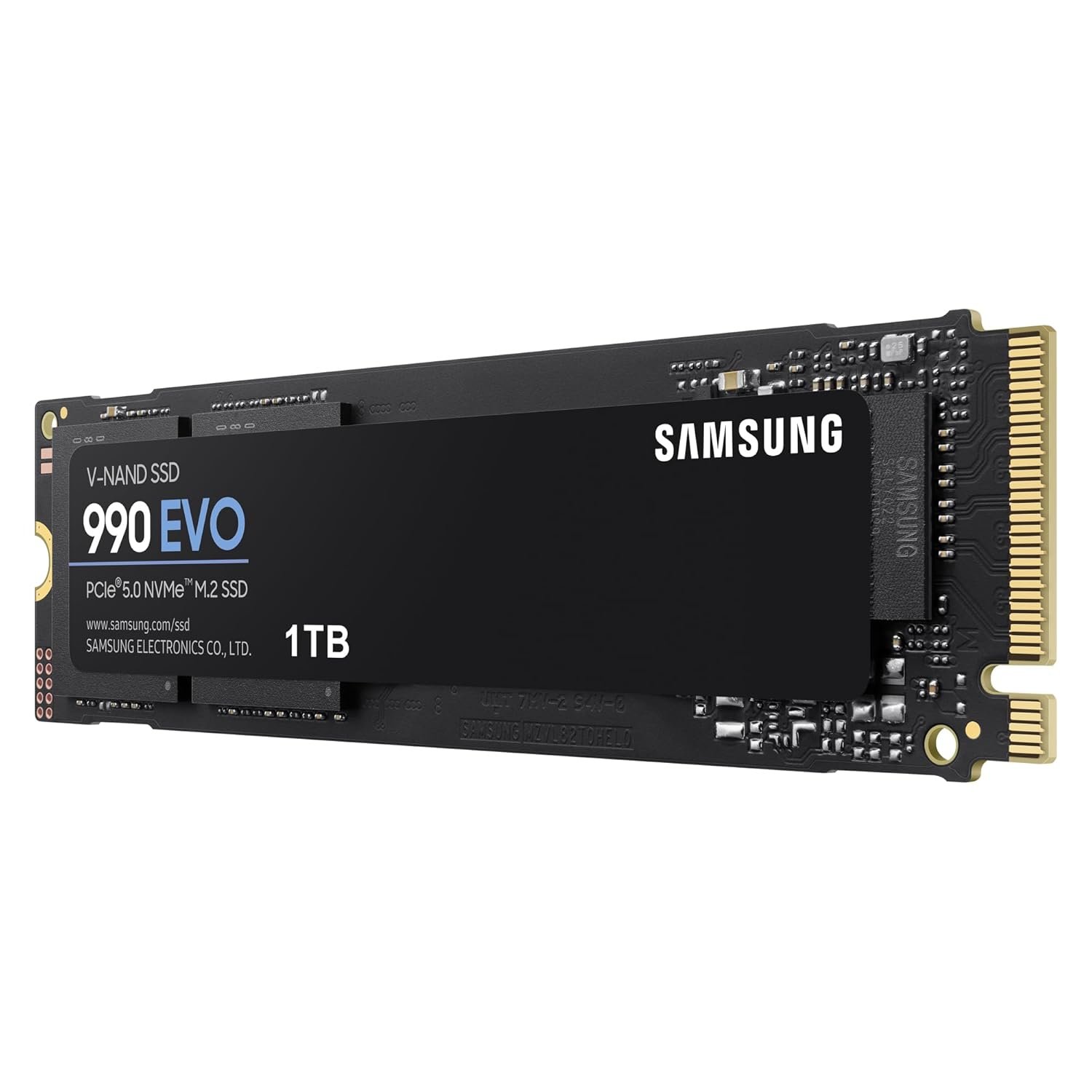

Samsung 990 EVO 1TB, PCIe 5.0 x2 M.2 2280 NVMe SSD, Speeds Up-to 5,000MB/s, Upgrade Storage for PC/Laptops, HMB Technology and Intelligent Turbowrite – MZ-V9E1T0BW
About this item
- Up to 5,000 MB/s Read & 4,200 MB/s Write
- PCIe 4.0 x4 & PCIe 5.0 x2 compatible
- Faster performance without DRAM
- Enhanced write speed during heavy tasks
- Power Efficient Design
- Works with laptops & desktops (M.2 2280)
- Advanced Security – AES 256-bit hardware encryption
- Reliable Endurance – 600 TBW
Performance – Upgrade to fast sequential read speed up to 5,000 MB/s, reaching up to 43% faster than the previous model.
Power efficiency – Up to 70% enhanced power efficiency compared to the previous model, supporting Modern Standby and long battery life.
Versatility – Elevate everyday performance in gaming, business, and creative work with PCIe® 4.0 x4 and PCIe® 5.0 x2 compatibility.
Speed that stays ahead – The 990 EVO offers enhanced sequential read/write speeds up to 5,000/4,200 MB/s, and random read/write speeds up to 700K/800K IOPS, reaching up to 43% faster than the 970 EVO Plus 2TB2. Wait less for games and access big files quick.
Evolved power efficiency – Turn right on and stay on. With a remarkable 70% improvement in power efficiency over the previous model, compute for longer without worrying about battery life. Plus, it supports Modern Standby, letting you stay connected to the internet and still receive notifications even in the low-power state.
Smart thermal solution – The 990 EVO’s heat spreader label helps thermal control of the NAND chip. Samsung’s cutting-edge thermal control algorithm, paired with Dynamic Thermal Guard, ensures both consistent and reliable performance. Keep your performance red-hot, not your drive.
Samsung Magician software – Make your NVMe SSD works like magic. Samsung Magician software’s optimisation tools ensure the best SSD performance. It’s easy to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.
Bringing innovations to life – For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.
Technical Details
| Brand | Samsung |
| Model Name | 990 EVO |
| Model Number | MZ-V9E1T0BW |
| Tyoe | NVMe SSD |
| Capacity | 1TB |
| Form Factor | M.2 (2280) |
| Interface | PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| Storage Memory | Samsung V-NAND TLC |
| Controller | Samsung in-house Controller |
| Cache Memory | HMB(Host Memory Buffer) |
| Special Feature | |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Performance | |
| Sequential Read | Up to 5,000 MB/s |
| Sequential Write | Up to 4,200 MB/s |
| Random Read (4KB, QD32) | Up to 680,000 IOPS |
| Random Write (4KB, QD32) | Up to 800,000 IOPS |
| Random Read (4KB, QD1) | Up to 20,000 IOPS |
| Random Write (4KB, QD1) | Up to 90,000 IOPS |
| Environment | |
| Average Power Consumption | Read 4.9 W / Write 4.5 W |
| Power consumption (Idle) | Typical 60 mW |
| Power Consumption (Device Sleep) | Typical 5 mW |
| Allowable Voltage | 3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Operating Temperature | 0 – 70 ℃ Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Accessories | |
| Installation Kit | Not Available |
| Software | |
| Management SW | Magician Software |
| Weight and Dimension | |
| Dimension (WxHxD) | 80 x 22 x 2.38 mm |
| Weight | Max 9.0g Weight |
| Warranty | |
| Warranty | 5 Years |
