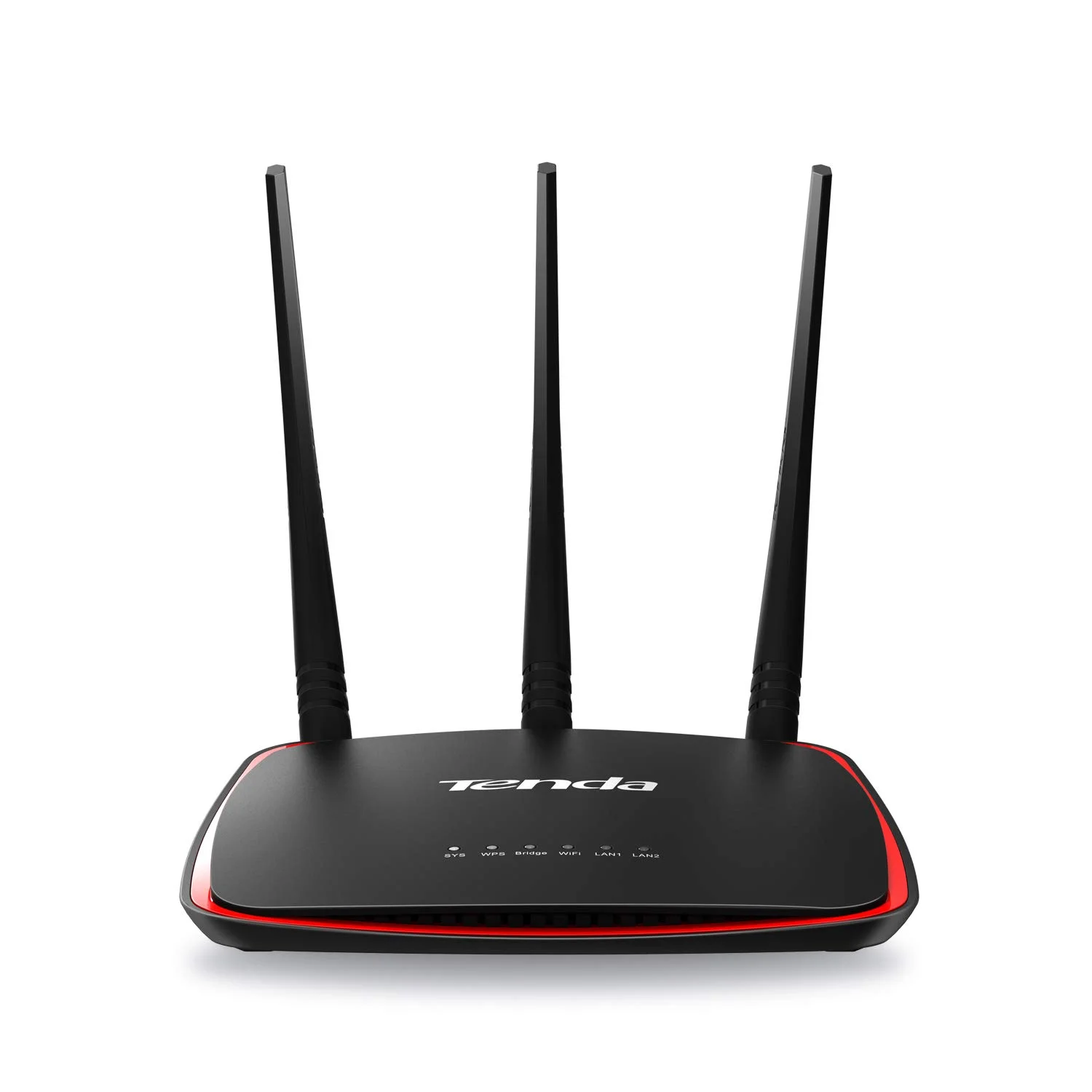

TENDA High Power Access Point With Poe Injector Te-Ap5 Wireless Router 2.4 GHz 300 Mbps Wifi Speed Single Band External Antenna Ethernet (Cable Broadband) (Black)
About this item
- Type: Wireless Without Modem
- 300 Mbps Speed
- Frequency: 2.4 GHz
- External Antenna
AP5 is designed to boost the range of your existing WiFi and creates a stronger signals in a hard to reach areas for game consoles, printers, smart phone, tablet. Power over ethernet supported and wall-mount design make it flexible to deploy in any location. The AP features with multi operation modes like Universal Repeater, Client(Station), WISP to adapt various application scenarios. It is a ideal Wi-Fi booster for large houses, villas,eatery, large stores etc.
One Button Boost – If your corner room always has bad WiFi reception, this device is a must have. Press the ‘Range Extender Button’ on the AP5 to boost the existing WiFi range and enjoy uninterrupted wireless connectivity in all corners of your house.
Flexible Deployment – Thanks to its handy wall-mountable design, you can deploy this device on the ceiling or wall. It supports power over Ethernet so you can install it places without a power outlet such as the garage or store room.
Multi-operating Modes – The AP5 supports multiple operating modes including AP, universal repeater, WISP (client + router), station (client), making it perfect for various location settings such as libraries, villas, resorts and hotels.
Wide WiFi Coverage – With three 5 dBi high-gain antennae, this device ensures wide coverage and uniterrupted wireless connectivity.
Easy to Manage – The AP5 can be easily paired and managed by an AP controller. When you deploy multiple AP5s in a network, you can manage and configure the security key, channel, netowrk name, and output power with a single AP controller.
Key Features – 300 Mbps High Power Access Point with POE injector AP5 with 3*5dbi detachable extranal antennas, ISP Compatiblity- Hathway, ACT, Sify, Tata and Reliance
Technical Details
| Brand | TENDA |
| Series | Access Point |
| Model | High Power Access Point With Poe Injector Te-Ap5 |
| Type | Wireless Without Modem |
| Broadband Compatibility | Ethernet (Cable Broadband) |
| Installation Features | 1*Quick Installation Guide; |
| LED Indicator | SYS,WPS,Bridge,WiFi,LAN1,LAN2 |
| Supported Software | Internet explorer 6.0 upper and all thrid party browers |
| Color | Black |
| Compatible ISP | Hathway,ACT,Sify,Airtel ,You,Spectranet |
| Net Quantity | 1 |
| Speed | |
| Wireless Speed | 300 Mbps |
| LAN/WAN | 10/100 |
| Network Features | |
| Operating Range | 70 Meters |
| Frequency | 2.4 GHz |
| Frequency Band | Single Band |
| Connectivity | |
| USB | 0 |
| Antennae | External |
| Number of LAN ports | 2 |
| Number of WAN ports | 1 |
| Number of USB Ports | 0 |
| WAN | RJ-45 |
| LAN | RJ-45 |
| Number of Antennae | 3 |
| Antennae Capacity | 5 dbi external antennas |
| Additional Features | |
| SSID Support | Multiple SSID Support |
| Certification | FCC/CE/Rohs/VoC |
| Operating Conditions | |
| Operating Humidity | 10%~90% non-condensing |
| Temperature | -10℃~45℃ degree C |
| Power | |
| Power Supply | DC 12V=1A Passive PoE |
| Supported Protocols | |
| Standard IEEE | IEEE 802.11n/g/b |
| Security | |
| Encryption | 64/128 WEP; WPA-PSK; WPA2-PSK; WPA&WPA2-PSK; WPA; WPA2 |
| Dimensions | |
| Height | 31.5 mm |
| Width | 146.2 mm |
| Depth | 148 mm |
| Warranty | |
| Warranty | 6 Months |
