TP-Link AC1300 PCIe WiFi PCIe Card(Archer T6E)- 2.4G/5G Dual Band Wireless PCI Express Adapter, Low Profile, Long Range, Heat Sink Technology, Supports Windows 10/8.1/8/7/XP
About this item
- Lightning Fast Speed: Upgrade your WiFi card to 1300Mbps Wi-Fi speeds. Frequency 2.4 GHz or 5 GHz
- More Stable Performance: Heat Sink technology distributes heat away from core components to improve reliability and performance; Built for high-performance computing, such as online gaming and 4K Ultra HD video streaming
- Ultimate Range: Increased wireless range with 2x external antennas to ensure a greater range of WiFi connection and stability. Detachable antennas
- Compatibility: Supports Windows 10 **Please upgrade to 17025 Insider Preview Build** / 8.1 / 8 / 7 / XP
Bring home the Archer T6E from TP-Link and enjoy transfer rates that are up to 3 times faster than wireless N speeds. With the option to choose from 2 different frequency bands (5 GHz and 2.4 GHz), this Wi-Fi adapter is ideal for people who simply like browsing the Internet as well as for people who live to stream.
Supports 802.11ac for Faster Wi-Fi Connectivity – The Archer T6E supports IEEE 802.11ac to facilitate transfer rates that are up to 3 times faster than wireless N category speeds. You can even upgrade your personal desktop by slotting this adapter into an available PCI-E slot.
Selectable Dual band Speeds – This Wi-Fi adapter lets you choose from 2 frequency bands – 5 GHz (up to 867 Mbps) and 2.4 GHz (400 Mbps). While the 5-GHz band is ideal for your gaming and streaming needs, its 2.4-GHz band is appropriate for regular web browsing.

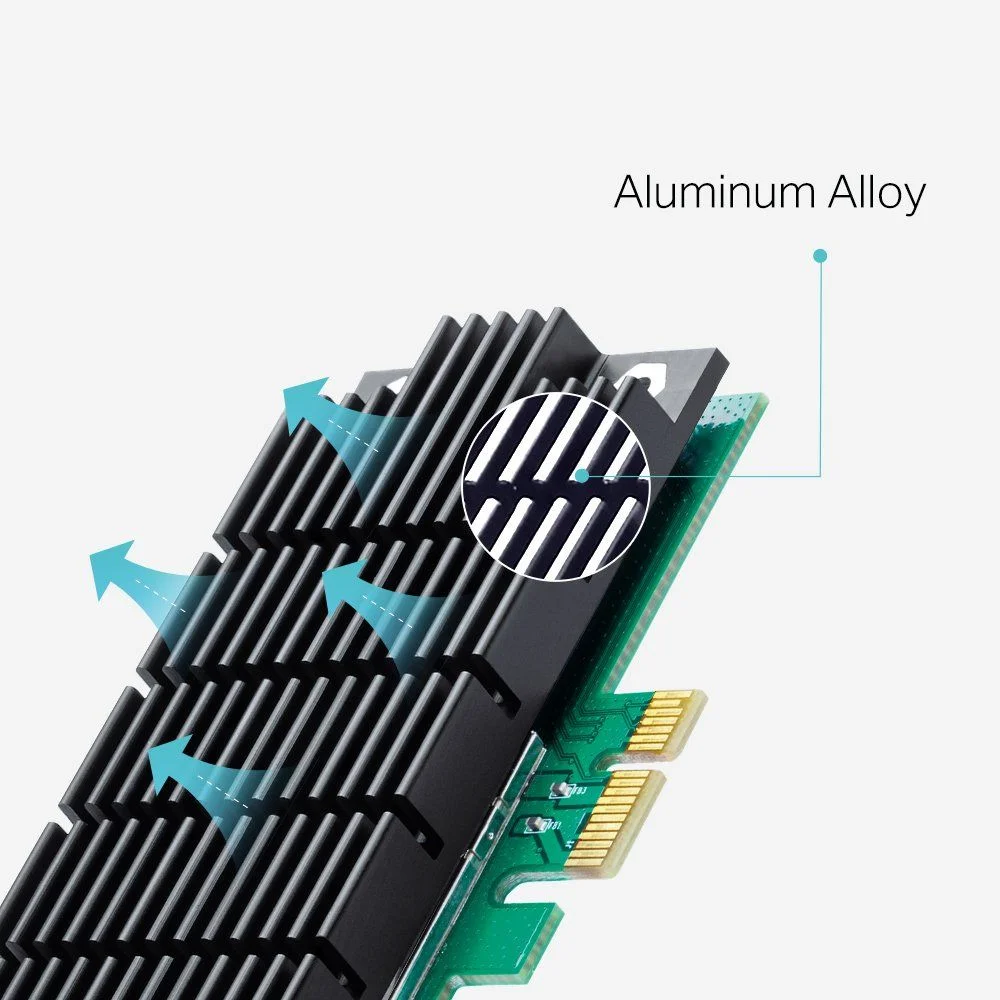

Heat Sink for Better Stability – Its heat sink dissipates the heat generated by the adapter. This not only helps give the adapter’s performance and stability a boost, but it also ensures that the adapter has a long lifespan.
Backward Compatible – Not only does this dual-band adapter support the IEEE 802.11ac Wi-Fi standard, but it also supports older standards such as 802.11 a/b/g/n.
Broad Wireless Range – It boasts 2 external detachable antennas that make for a greater range, thereby ensuring stable Wi-Fi connectivity.
Technical Details
| Brand | TP-Link |
| Model Name | Archer T6E |
| Interface | PCI Express x1 (PCIe) |
| Chipset / Standard | IEEE 802.11ac / 802.11a / 802.11b / 802.11g / 802.11n |
| Wi-Fi Bands | Dual Band: 2.4 GHz & 5 GHz |
| Maximum Wireless Speed | Up to 1300 Mbps total (867 Mbps @ 5 GHz + 400 Mbps @ 2.4 GHz) |
| Frequency Range | 2.4 GHz & 5 GHz |
| Antennas | 2 × Dual-Band Detachable External Antennas |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | WEP (64/128-bit), WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technologies | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| Reception Sensitivity (Typical) | 5 GHz: 11a: -68 dBm; 11ac HT80: -51 dBm 2.4 GHz: 11b: -76 dBm; 11n HT40: -61 dBm |
| Transmit Power | 5 GHz: <23 dBm (EIRP) 2.4 GHz: <20 dBm (EIRP) |
| Operating Systems Supported | Windows 11 / 10 / 8.1 / 8 / 7 / XP (32/64-bit) |
| Dimensions (W × D × H) | 4.8 × 4.5 × 0.85 in. (120.8 × 115.2 × 21.5 mm) |
| Heat Sink Technology | Yes – Aluminum alloy heatsink for improved stability and lifespan |
| Low-Profile Bracket | Included (for small form factor cases) |
| Beamforming Support | Yes – directional signal focusing for better performance |
| Certifications | FCC, CE, RoHS (varies by region) |
| Warranty | 3 Years |
