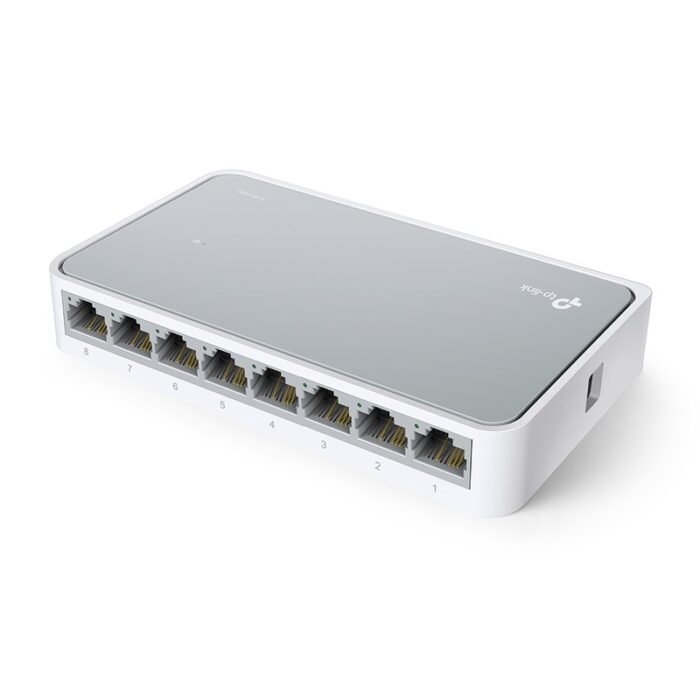

TP-Link 8 Port 10/100Mbps Fast Ethernet Switch | Desktop Ethernet Splitter | Ethernet Network Hub | Plug and Play | Fanless Quiet | Desktop Design | Green Technology | Unmanaged (TL-SF1008D)
About this item
- Auto-negotiation: 8 Port fast ethernet – 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
- Green Technology:Â Green Ethernet technology saves power consumption
- Reliable: IEEE 802.3x flow control provides reliable data transfer
- Cost Effective:Â Plastic case, desktop design
- Plug-and-play: Plug and play, no configuration required
What This Product Does – The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.
High Performance – TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
Easy to Use – The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Technical Details
| Type | Unmanaged |
| Installation | Plug and Play |
| Model | TL-SF1008D |
| Part | 1730502209/ 1730502143 |
| Series | 1730502143 |
| Management Protocols | CSMA/CD |
| In The Box | TL-SF1008D Ethernet Switch, Power Adapter |
| Color | White |
| Brand | TP-Link |
| Operating Conditions | |
| Operational Humidity | 10 % to 90 % Non-condensing |
| Operational Temperature | 0DegC – 40DegC |
| Storage Humidity | 5 % to 90 % non-condensing |
| Storage Temperature | -40DegC – 70DegC |
| Power | |
| Power Adapter Input | 100 – 240 V AC, 50 – 60 Hz |
| Network Ports | |
| Number of Ethernet ports | 8 |
| Speed | 100 Mbps |
| Supported Protocols | |
| Supported Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Network Features | |
| Forward Rate | 10 Mbps port: 14,880 packets/sec, 100 Mbps port: 148,800 packets/sec |
| Bandwidth | 1.6 Gbps |
| Indicators | |
| LEDs | Power, 1, 2, 3, 4, 5, 6, 7, 8 |
| Dimensions | |
| Mount Type | Wall Mount, Desktop |
| Height | 27.5 mm |
| Width | 140 mm |
| Depth | 87 mm |
| Warranty | |
| Warranty | 1 Year |
