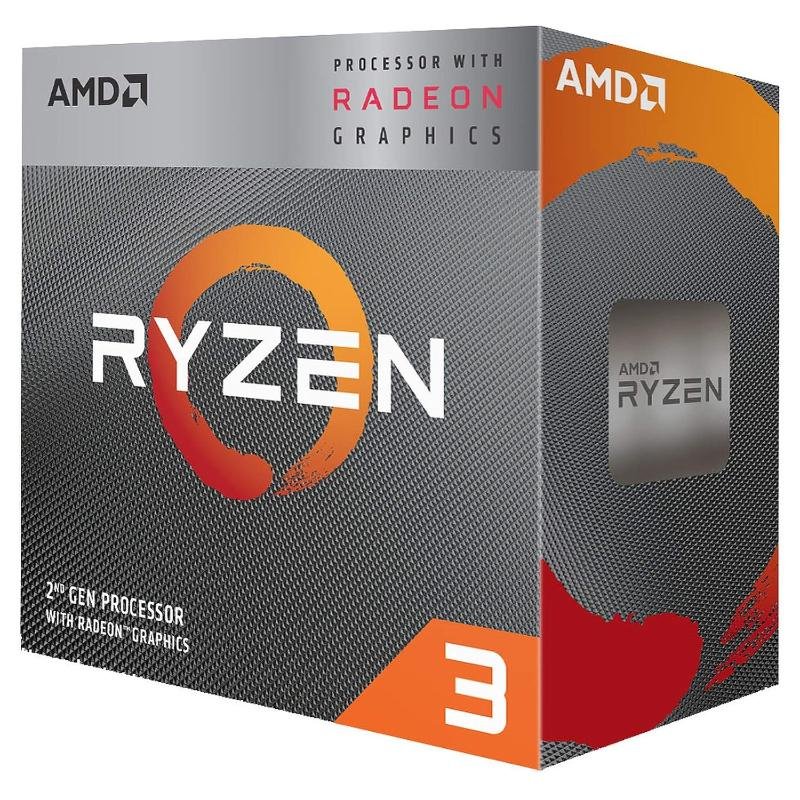

AMD Ryzen 3 3200G with RadeonVega 8 Graphics Desktop Processor 4 Cores up to 4GHz 6MB Cache Socket AM4 (YD320GC5FHBOX)
About this item
- 4 cores / 4 threads
- Up to 4.0 GHz boost clock
- Base Clock: 3.6GHz
- Max Boost Clock: up to 4GHz
- 6MB Cache, TDP: 65 W TDP (power draw)
- System Memory Specification: 2933MHz,
- System Memory Type: DDR4,
- Memory Channels: 2
- Socket: AM4, Motherboard
- Compatibility: AMD 300, 400,serles chipset based motherboards
- Graphics: AMD Radeon Vega 8 Graphics, Heatsink Fan: Wraith Stealth
The Ryzen 3 3200G is an entry-level desktop APU (Accelerated Processing Unit) from AMD, combining both CPU and GPU on a single chip. It is aimed at users who want decent performance for everyday computing, light content creation, and casual gaming, without needing a separate graphics card.
CPU Specifications
- Cores / Threads: 4 Cores, 4 Threads
- Base Clock: 3.6 GHz
- Max Boost Clock: Up to 4.0 GHz
- Cache: 2 MB L2 + 4 MB L3
- TDP: 65W
- Max Operating Temp: 95°C
Memory Support
- Memory Type: DDR4
- Channels: Dual-channel
- Max Memory Capacity: Up to 64 GB
- Official Memory Speed: DDR4-2933
Integrated Graphics
- GPU: Radeon™ Vega 8 Graphics
- GPU Cores: 8
- GPU Frequency: Up to 1250 MHz
- Display Support: HDMI, DisplayPort (depends on motherboard)
Platform & Expansion
- PCI Express Version: PCIe 3.0
- PCIe Lanes: Up to 20
- Supported Technologies: Virtualization, AES, SSE, AVX, etc.
Technical Details
| Brand | AMD |
| Model Name | Ryzen 3 3200G |
| Model Number | YD320GC5FHBOX |
| Codename | Picasso (Zen+ architecture) |
| Process Technology | 12nm FinFET |
| Launch Year | 2019 |
| Socket | AM4 |
| Package | OPGA-1331 |
| CPU Specifications | |
| Cores / Threads | 4 Cores / 4 Threads |
| Base Clock | 3.6 GHz |
| Max Boost Clock | Up to 4.0 GHz |
| L1 Cache | 384 KB (256 KB Instruction + 128 KB Data) |
| L2 Cache | 2 MB |
| L3 Cache | 4 MB |
| Total Cache | 6 MB |
| TDP (Thermal Design Power) | 65W |
| Max Operating Temperature | 95°C |
| Memory Support | |
| Memory Type | DDR4 |
| Memory Channels | Dual Channel |
| Maximum Memory | Up to 64 GB |
| Official Memory Speed | DDR4-2933 |
| ECC Memory Support | Yes (with PRO series boards) |
| Integrated Graphics | |
| GPU Model | Radeon™ Vega 8 Graphics |
| GPU Cores | 8 |
| GPU Frequency | Up to 1250 MHz |
| Graphics APIs | DirectX 12, OpenGL 4.6, OpenCL 2.1 |
| Supported Display Outputs | HDMI, DisplayPort (depends on motherboard) |
| Platform & Expansion | |
| PCI Express Version | PCIe 3.0 |
| PCIe Lanes | Up to 20 |
| Virtualization | AMD-V |
| Instruction Set Extensions | SSE4a, AVX, AVX2, AES, FMA3, SHA |
| Dimension Weight and Warranty | |
| Box Dimensions | 5.5 × 5.3 × 1.8 inches |
| Package Weight | ~1.015 lb (≈ 0.461 kg) |
| Item Weight (CPU alone) | ~45.4 g |
| Warranty | 3 Years |
