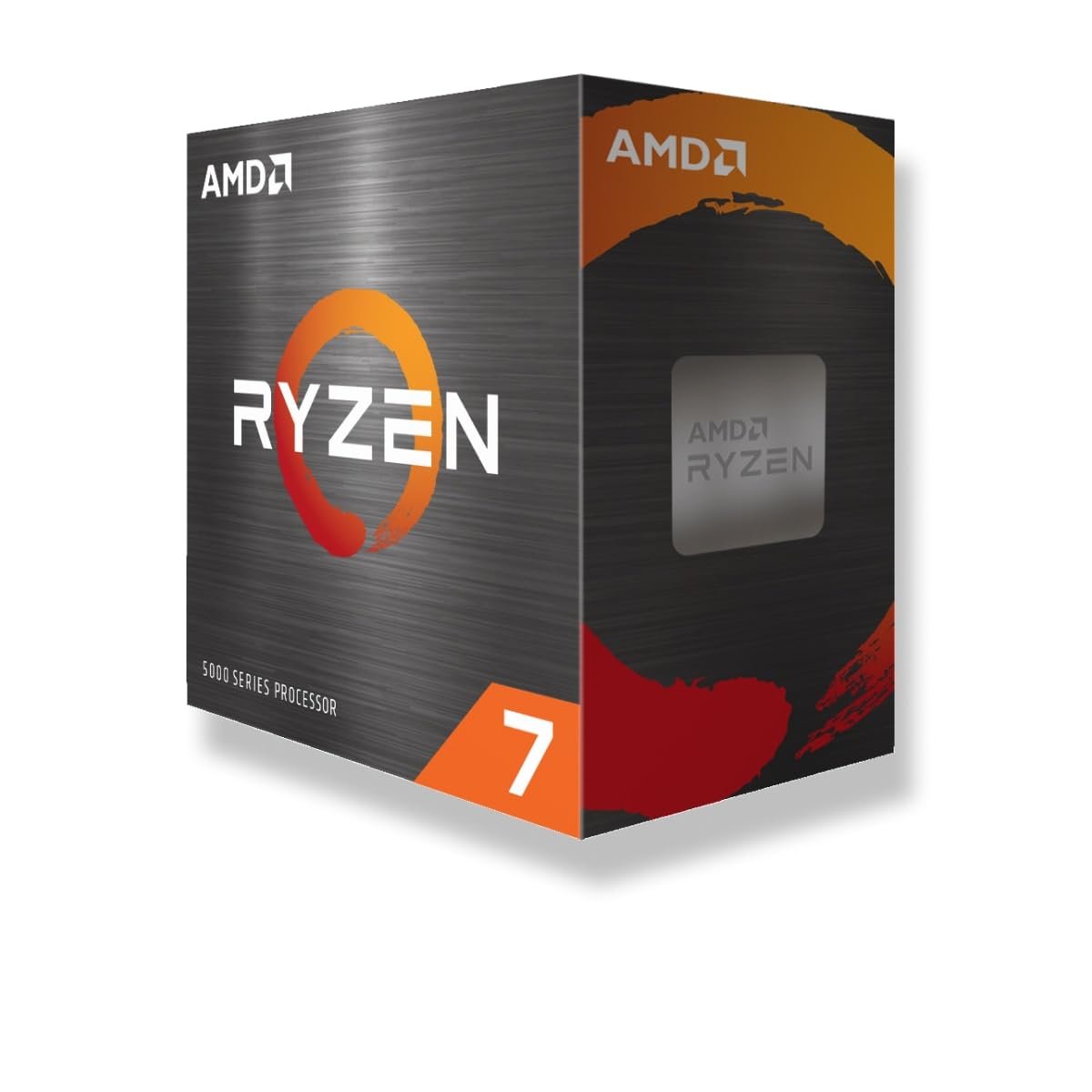

AMD Ryzen 7 5800XT Desktop Processor 8 cores 16 Threads 32MB Cache Base Clock 3.8 GHz Up to 4.8 GHz AM4 Socket, System Memory DDR4, Thermal Solution AMD Wraith Prism – 100-100001582BOX
About this item
- Core Configuration: 8 Cores, 16 Threads, leveraging AMD’s Zen 3 architecture for exceptional performance.
- Clock Speeds: Base clock of 3.8 GHz and a boost clock of up to 4.8 GHz, delivering rapid processing capabilities.
- Cache: Equipped with 32 MB of L3 cache for efficient data access and improved application responsiveness.
- Memory Support: Supports up to DDR4-3200MHz memory speeds for optimal system performance.
- TDP: Maintains a thermal design power (TDP) of 105W, ensuring efficient power consumption. Thermal solution-AMD Wraith Prism
- Socket Compatibility: Designed for AMD Socket AM4 motherboards for easy system integration.
The AMD Ryzen 7 5800XT is part of AMD’s Zen 3 “XT” refresh of the Ryzen 5000-series CPUs. It is aimed at high-performance desktop users — especially gamers and content creators — who want strong single-core and multi-core performance without going to extreme high power or cost.
Technical Details
| Brand | AMD |
| Model Name | Ryzen 7 5800XT |
| Part Number | 100-100001582BOX |
| Family | Ryzen |
| Series | Ryzen 5000 Series |
| Form Factor | Boxed Processor , Desktops |
| Market Segment | Enthusiast Desktop |
| Consumer Use | Yes |
| Commercial Use | No |
| Regional Availability | Global |
| Former Codename | Vermeer |
| Architecture | Zen 3 |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| # of Threads | 16 |
| Max. Boost Clock | Up to 4.8 GHz |
| Base Clock | 3.8 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 4 MB |
| L3 Cache | 32 MB |
| Default TDP | 105W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| Processor Technology for I/O Die | 12nm (Globalfoundries) |
| CPU Compute Die (CCD) Size | 74mm² |
| I/O Die (IOD) Size | 125mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Supporting Chipsets | X570 , B550 , A520 , X470 , B450 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | AMD Wraith Prism |
| Max. Operating Temperature (Tjmax) | 90°C |
| *OS Support | Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe® 4.0 |
| Native PCIe® Lanes (Total/Usable) | 24 , 20 |
| Additional Usable PCIe Lanes from Motherboard | amd_x570 16x Gen 4 amd_x470 2x Gen 3, 8x Gen 2 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | Discrete Graphics Card Required |
| Key Features | |
| Supported Technologies | AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium |
| Warranty | 3 Years |
