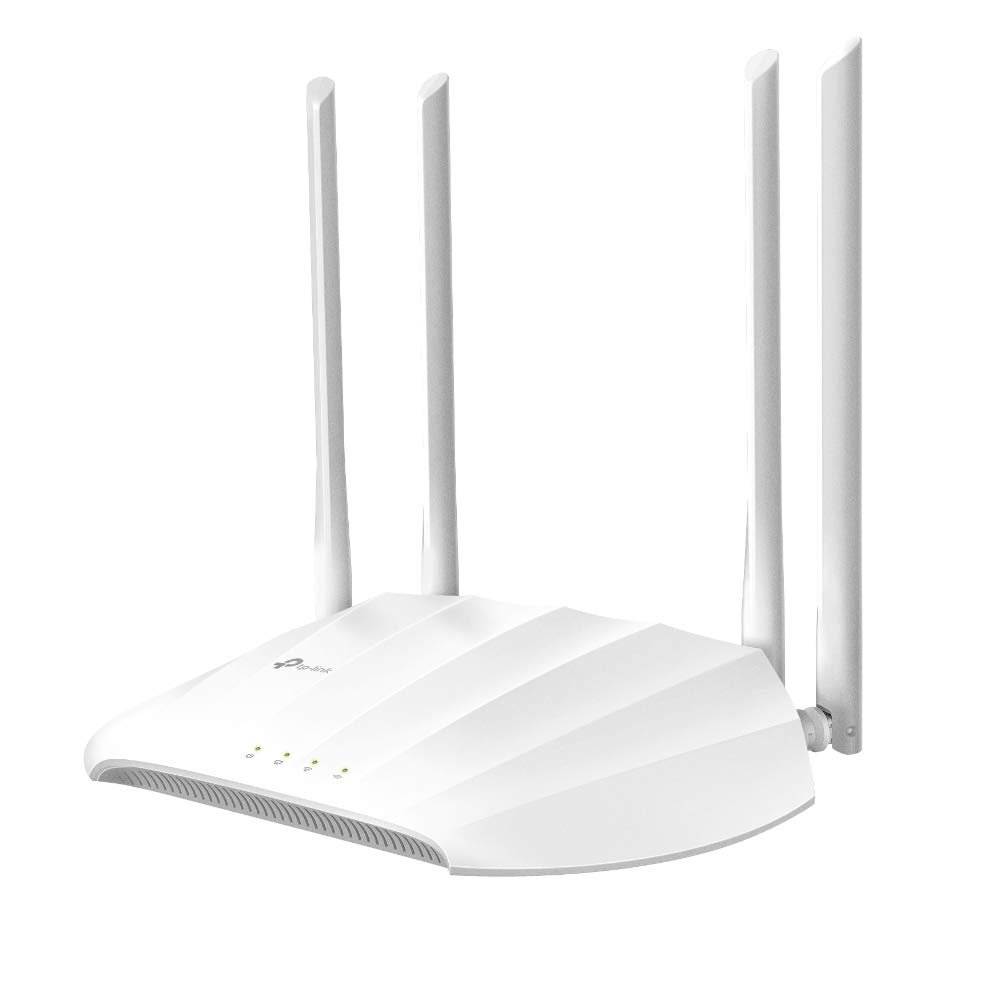

TP-Link TL-WA1201 AC1200 Wireless Access Point | Dual Band Wi-Fi 1200 Mbps | WiFi Gigabit Port | Multiple Modes | MU-MIMO | 4 X Antennas | Beamforming | Supports Passive PoE
About this item
- AC1200 Dual-Band Wi-Fi: Fast Wi-Fi 5 speed in both 5 GHz and 2.4 GHz
- Flexible Deployment: Supports Passive PoE to carry electrical power and data simultaneously.
- Multiple Modes: Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
- MU-MIMO Technology: Simultaneously transfers data to multiple devices for 2נfaster performance.
- Boosted Coverage: Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
- Captive Portal: Offers a designed portal page for heightened security and marketing.
Lightning-Fast AC1200 Dual Band Wi-Fi – Upgrade your home or office network with the advanced 802.11ac Wave 2 AP, which offers dual-band speeds of up to AC1200—three times the performance of Wireless N. MU-MIMO technology enables the AP to serve multiple devices simultaneously without congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently!
Gigabit-Class Wired Performance – The gigabit Ethernet port makes full use of gigabit-class bandwidth provided by a local ISP to ensure reliable network connections. It also provides an ultra-fast connection for wired devices such as PCs, IPTVs, and game consoles, etc.

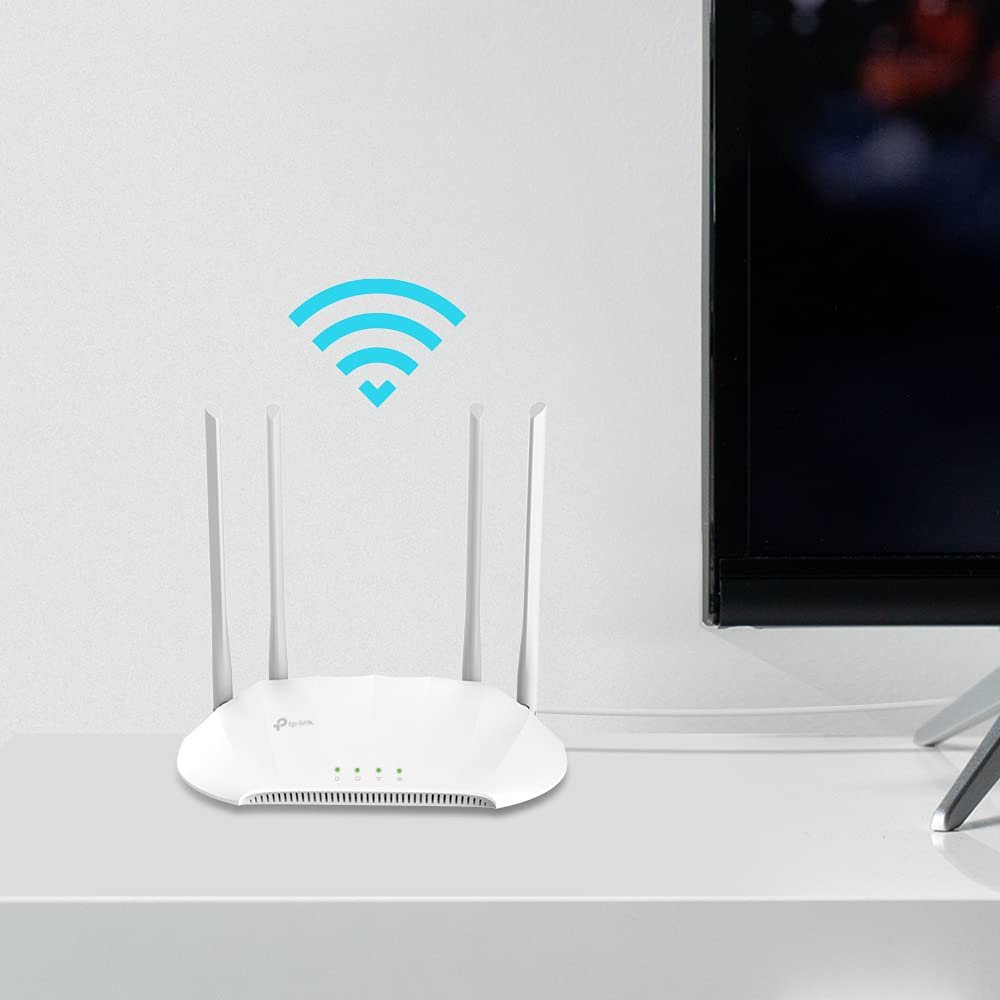

Deploy Anywhere with Just One Cable – Power over Ethernet (PoE) allows your Ethernet cable to carry electrical power and data simultaneously, making deployment effortless and flexible. An elegant appearance and simple mounting design make it easy to attach the Access Point to any wall or desktop, blending in perfectly with most interior decoration.
Boosted Wi-Fi Coverage – Four external antennas equipped with Beamforming technology concentrate Wi-Fi signals towards your devices to extend reliable Wi-Fi to every corner of your home or office—even over long distances.
Technical Details
| Brand | TP-Link |
| Model Number | TL-WA1201 |
| Wireless Standard | IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11ac/n/a (5 GHz) |
| Wi-Fi Type | AC1200 Dual-Band (Wi-Fi 5) |
| Max Wireless Speed | 2.4 GHz: up to 300 Mbps 5 GHz: up to 867 Mbps (total ~1200 Mbps) |
| MU-MIMO | Yes (serves multiple devices simultaneously) |
| Antennas | 4 × Fixed High-Performance External Antennas |
| Beamforming | Yes (boosts signal focus & range) |

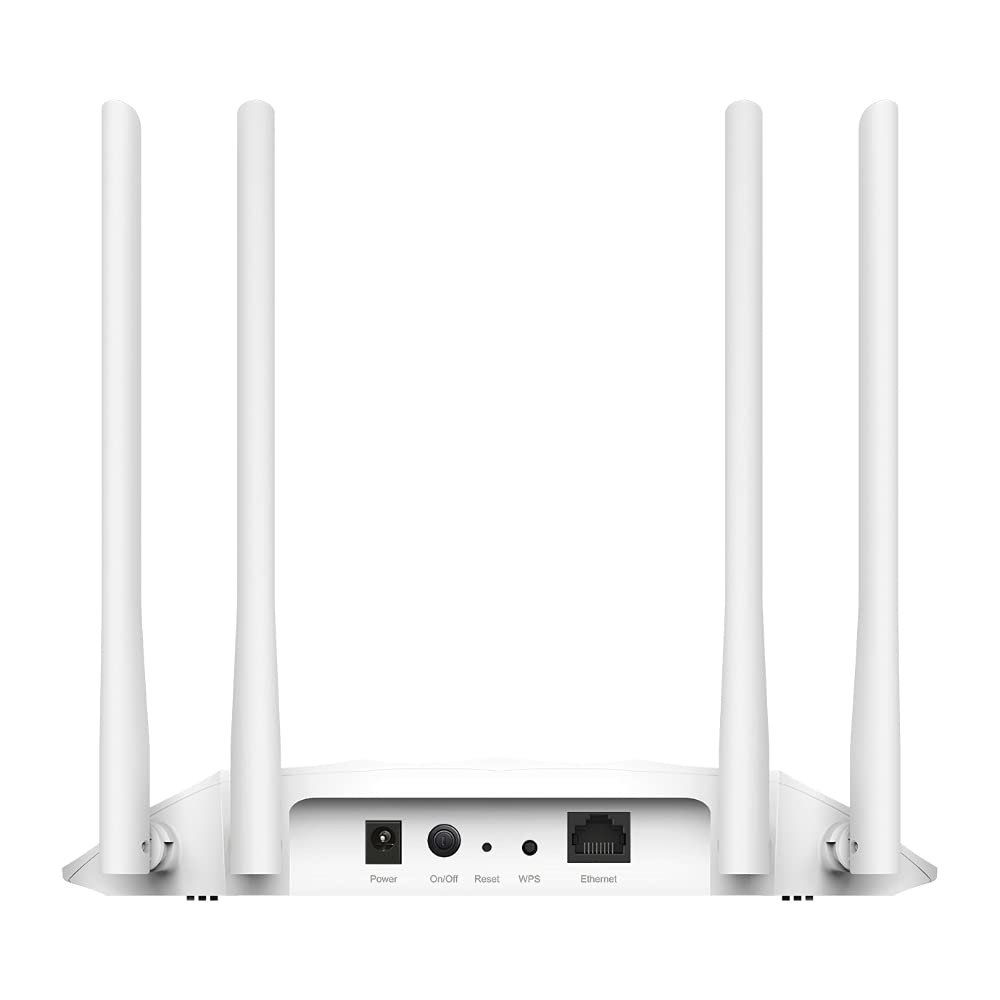

| Ethernet Port | 1 × Gigabit RJ45 (10/100/1000 Mbps) |
| PoE Support | Passive PoE (power + data over one Ethernet cable) |
| Operation Modes | Access Point, Range Extender, Client, Multi-SSID |
| Wireless Security | WEP (64/128-bit), WPA/WPA2, WPA-PSK/WPA2-PSK |
| Wireless Functions | WMM, WDS Bridge, Wireless Stats, Multicast Forwarding, Access Control, DHCP Server |
| Buttons | Power On/Off, WPS, Reset |
| Transmit Power | CE: <20 dBm (2.4 GHz), <23 dBm (5.15-5.25 GHz) FCC: <30 dBm (2.4 GHz & 5 GHz) |
| Reception Sensitivity | • 5 GHz & 2.4 GHz detailed sensitivities (various modulation rates) |
| External Power | 12 V ⎓ 1.5 A Adapter (included) |
| Dimensions | 225 × 145.5 × 37 mm (8.9 × 5.7 × 1.5 in) |
| Protocols Supported | IPv4, IPv6 |
| Quality of Service | WMM (Wireless Multimedia) |
| Captive Portal | Yes (guest login/marketing splash page) |
| Certifications | CE, FCC, RoHS |
| Operating Temp/Humidity | 0 °C ~ 40 °C / 10% ~ 90% non-condensing |
| Storage Temp/Humidity | -40 °C ~ 70 °C / 5% ~ 90% non-condensing |
| Package Contents | AP unit, Power Adapter, RJ45 Cable, PoE Injector, Quick Guide |
| Warranty | 1 Year |
